Product Description

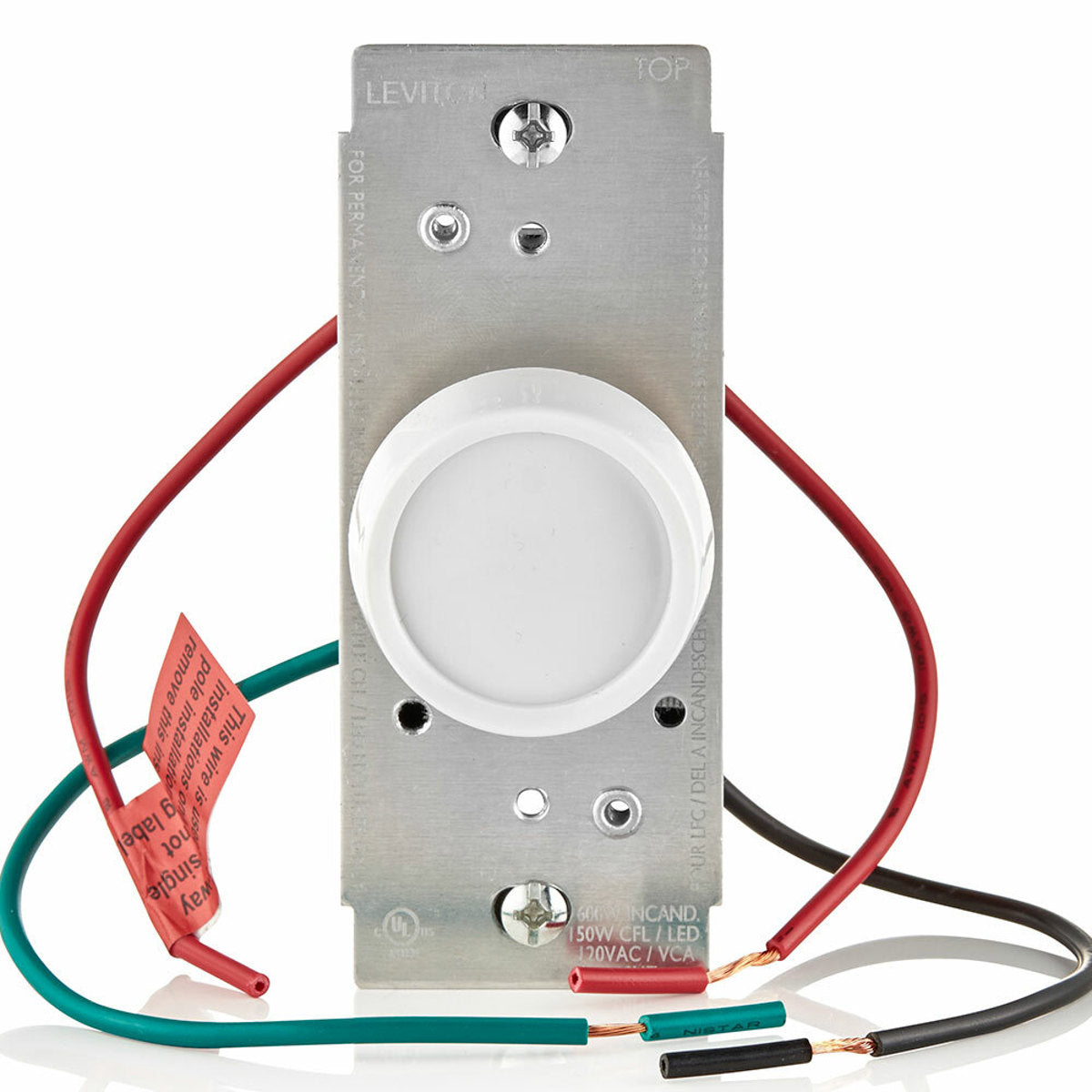

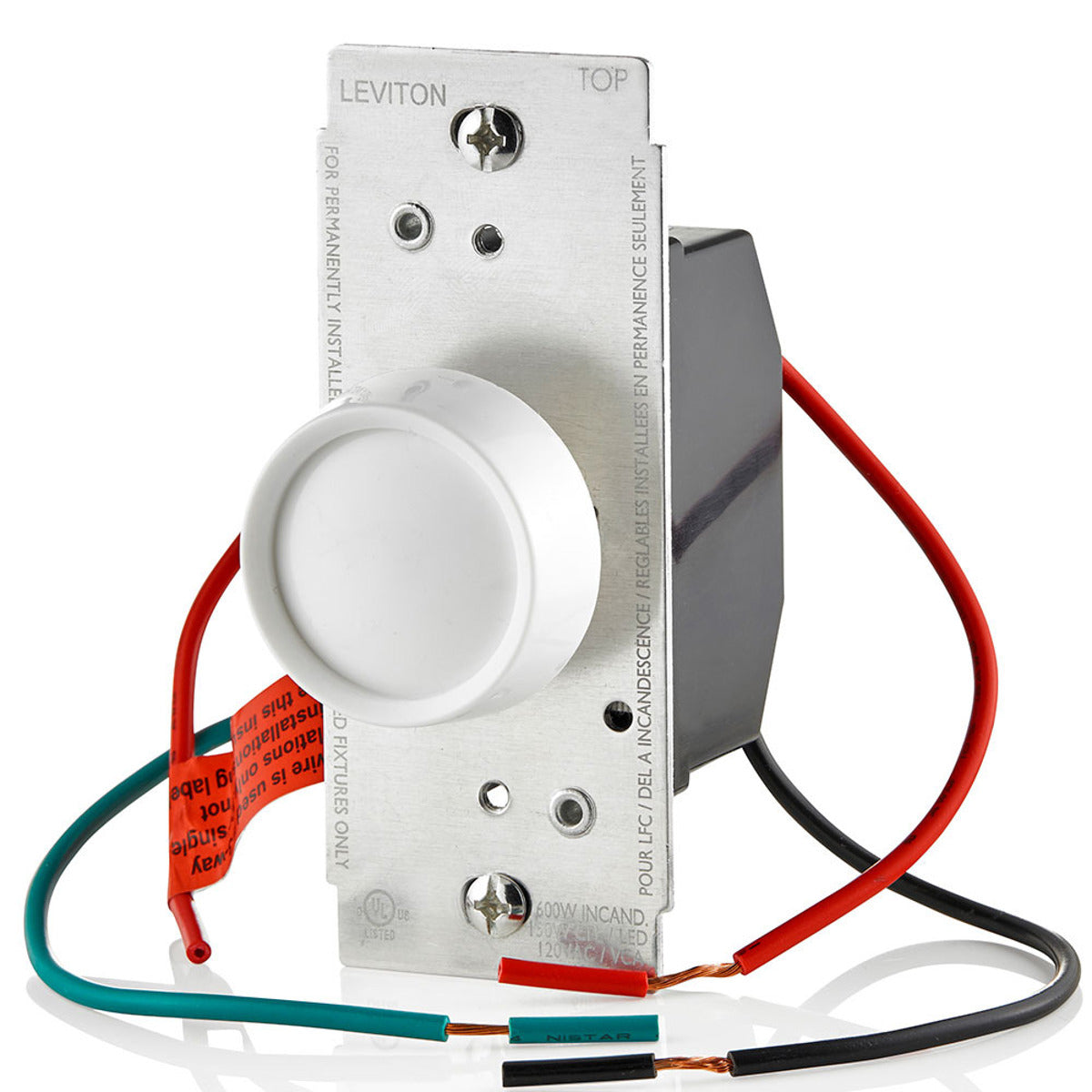

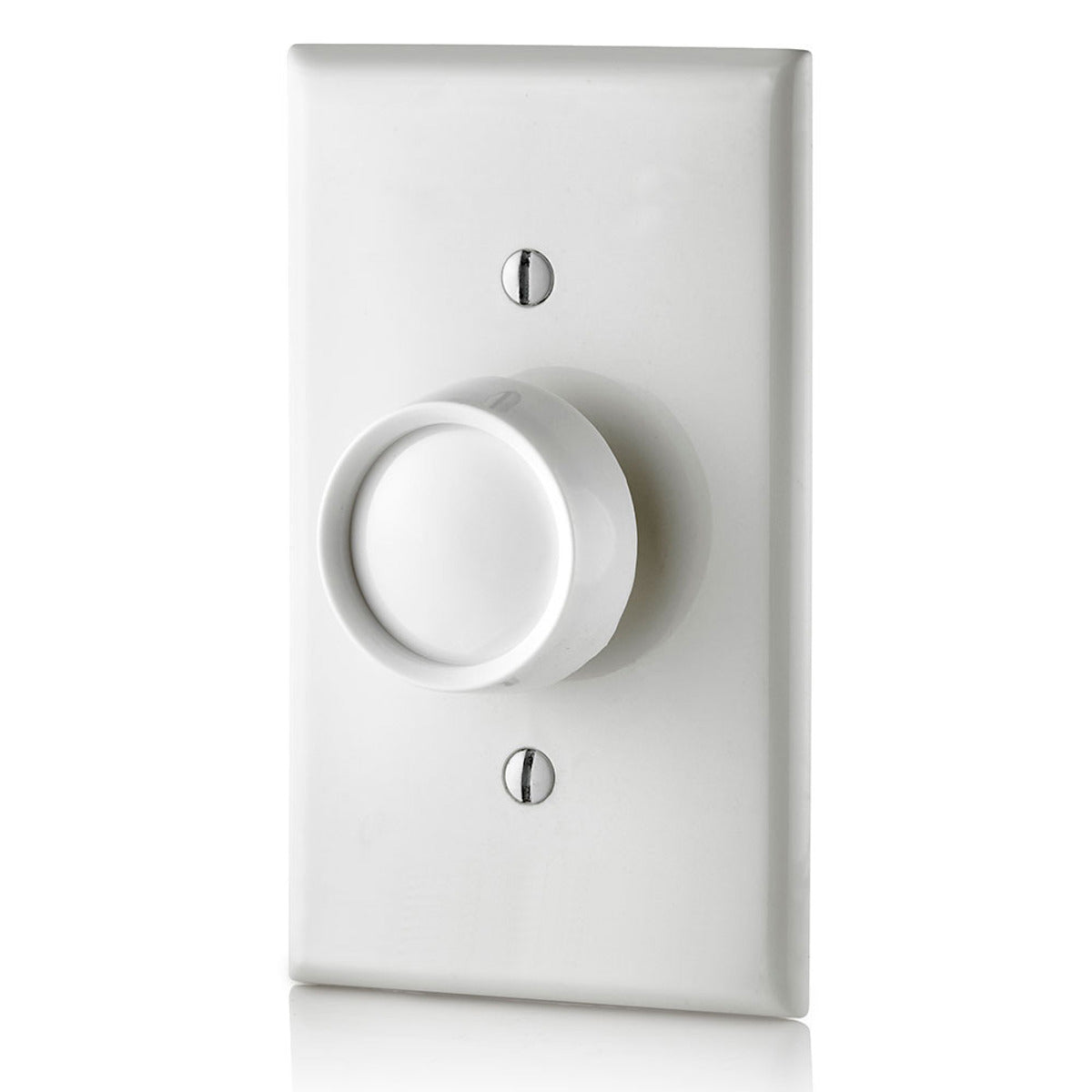

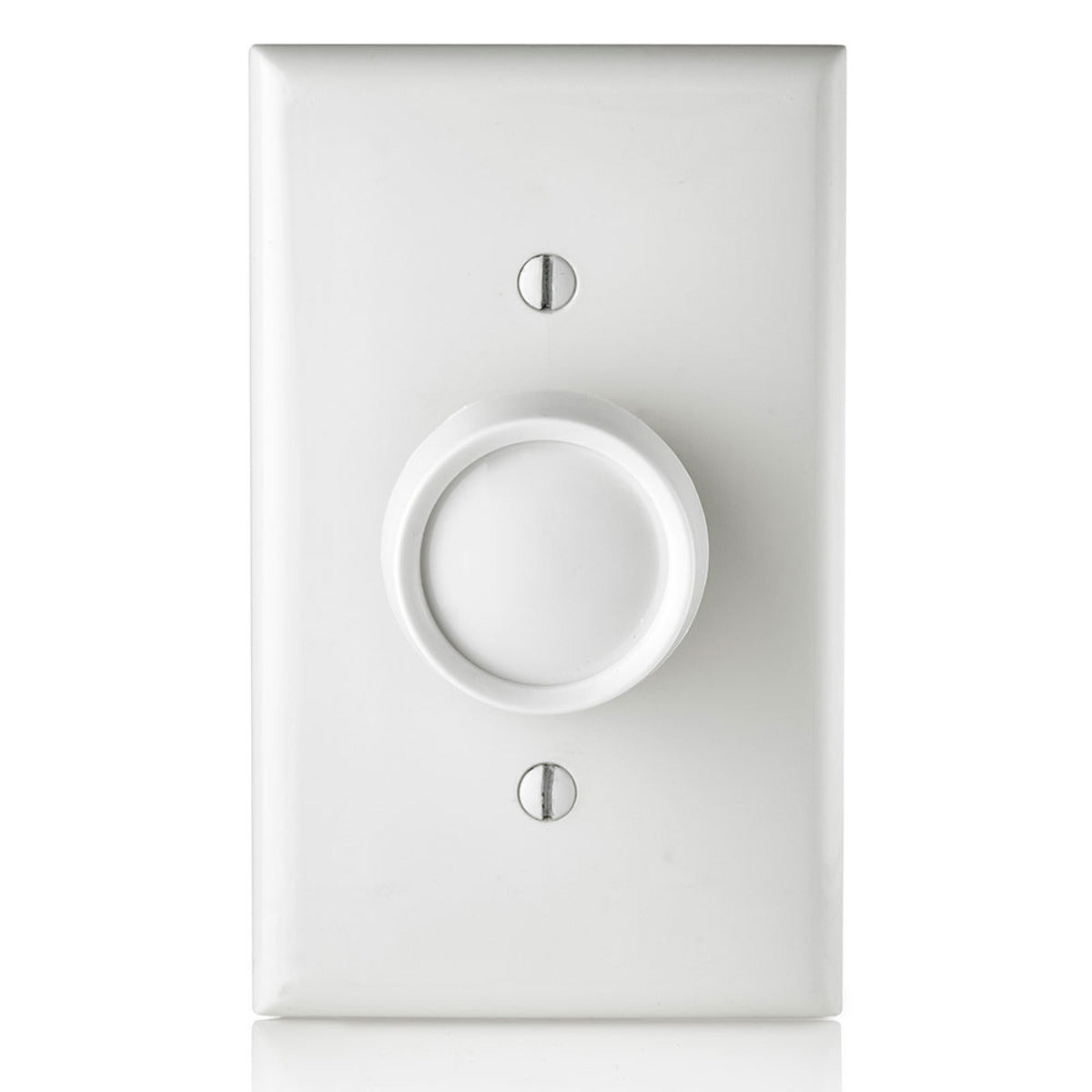

The Leviton RDL06-10Z Trimatron rotary dimmer switch is designed for optimal control of dimmable LED and CFL lamps, and is also compatible with incandescent and halogen lamps. This dimmer provides single pole or 3-way control when paired with a 3-way switch. Its slim, compact housing fits easily into a standard wallbox, making it suitable for multi-gang installations.
- Full range dimming with Push-ON/Push-OFF rotary control
- Provides single pole (one location) or 3-way (two location) control when paired with a 3-way switch

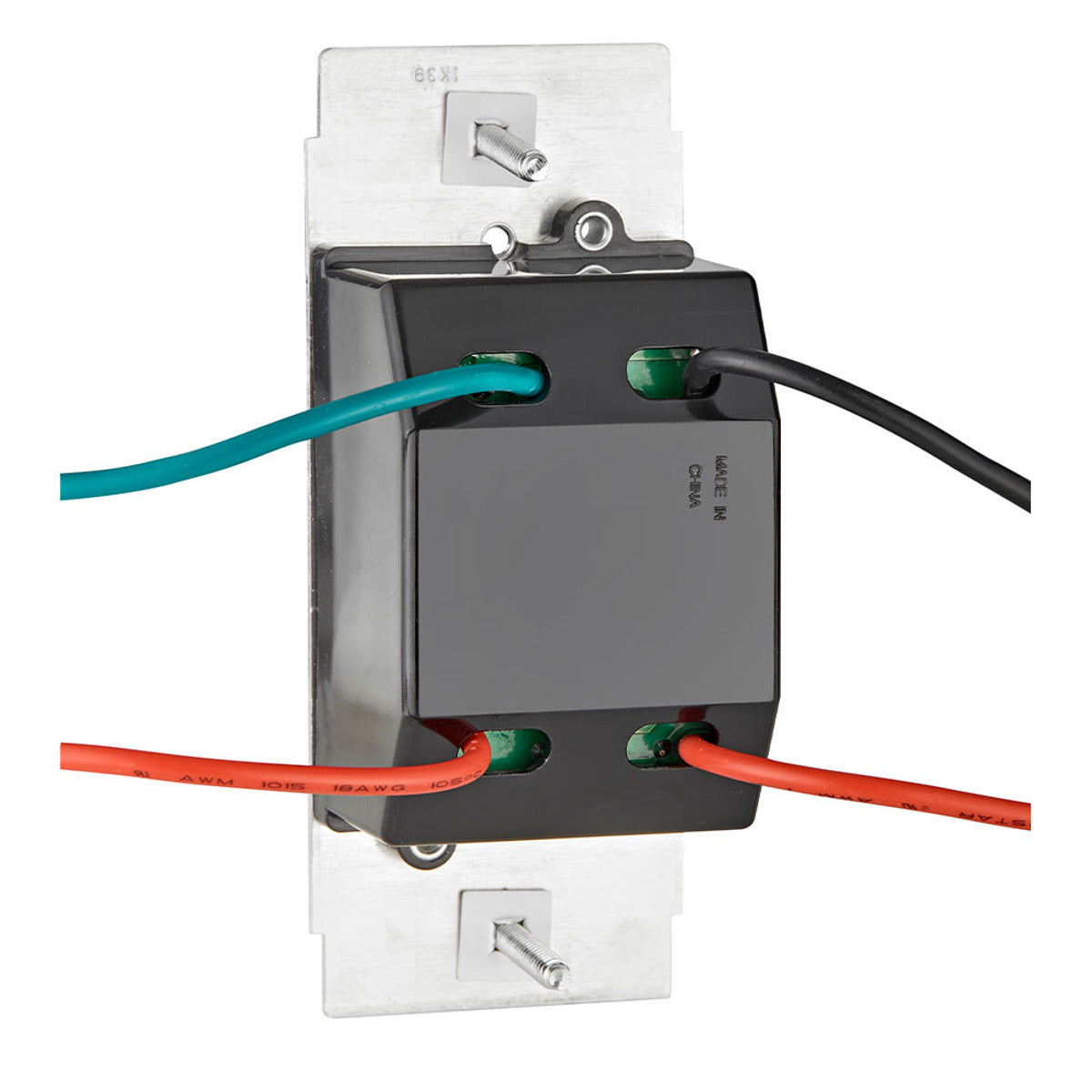

- Slim, compact housing fits easily into a standard wallbox
Product Highlights
Universal dimmer compatible with Incandescent, Halogen, Dimmable LED, and Dimmable CFL. Features a built-in radio/TV interference filter.
Product Information
Standard Information
-
Brand: Leviton
-
Manufacturer Part Number: RDL06-10Z
-
Country of Origin: China
Technical Specifications
-
Color: White
-
Wattage: 600 W
-
Unit Count: 1.0 Count
-
Circuit Type: 3-way
-
Actuator Type: Rotary,rotary-style
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: Device
-
Type: Universal
-
Brand: Leviton
-
Style: Trimatron
-
Action: On/Off
-
Voltage: 120 VAC
-
Standard: NOM,cCSAus
-
Frequency: 60 Hz
-
Sub Brand: RESIDENTIAL DIMMERS
-
Switch Type: 3-Way,Single-Pole
-
Power Rating: 150/600 W
-
Number of Poles: 1 Pole
-
Operating Temperature: 55 degrees C
-
Environmental Conditions: 20 - 90% Non-Condensing Relative Humidity
-
Catalog Number: RDL06-10Z
-
Manufacturer: Leviton
-
Made in USA: No
-
Special Features: Universal
-
Item Type: Dimmer
-
Voltage Rating: 120
-
Frequency Rating: 60 Hz
-
Lamp Type: Fluorescent/Halogen/Incandescent/LED
-
Dimmer Switch Style: Push Button On/Off Rotary Dimmer
-
Rated Voltage: 125V ac
-
Control: Toggle Preset Push ON/OFF, Rotary
-
Mounting Type: Surface
-
Temperature Rating: 0 to 55 deg C
-
Load Type: Incandescent, Halogen, Dimmable LED, Dimmable CFL
-
Wallplate: Order Separately
-
Protection: Radio/TV Filter
-
Style Name: Trimatron
-
Load Rating: 600W Incandescent and Halogen, 150W LED and CFL
-
Switch Type Rotary, Dimmer Switch: Rotary, Dimmer Switch
-
Phase Control: Forward phase control
-
Available Colors: White, Ivory, Light Almond
-
Standards and Certifications: cCSAus, NOM
-
Materials sourced from: China
-
Part Number: RDL06-10Z
-
Controller Type: Mechanical knob
-
Contact Type: Normally Open
-
Switch Style: Rotary
-
Is Discontinued By Manufacturer: No
-
Item Package Quantity: 1
-
Mounting Type Pole: Pole
-
Connector Type: Screw Terminals
-
Number of Items: 1
-
Specification Met: Ccsaus, Nom
-
Number of Positions: 2
-
Item model number: RDL06-10Z
-
Terminal: Screw
-
Operation Mode: OFF-NONE-ON" or "ON-NONE-ON
-
Bulb Compatibility: LED
-
Model: RDL06-10Z
-
Operation Method: Na
