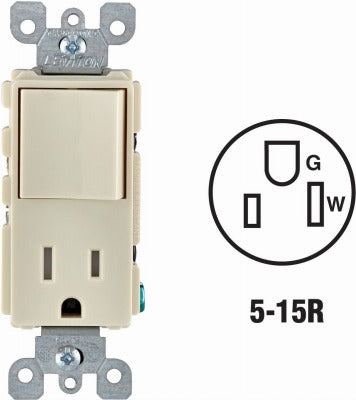

Leviton R67-T5625-0TS 15A Switch Outlet Combo Nema 5-15R

Product Description

The LEVITON MFG CO R67-T5625-0TS is a commercial-grade, single-pole switch and tamper-resistant grounding receptacle combination device in the Decora form factor. Built from nylon construction, it integrates a shuttered receptacle that blocks contact access unless a 2-prong plug is simultaneously inserted into both slots, preventing insertion of foreign objects such as hairpins or keys. The device is rated at 15 amps and carries a NEMA 5-15R receptacle configuration. Large-head terminal screws accept up to No. 10 copper wire, and triple wire power contacts deliver maximum conductivity and reliable plug retention. Electricians and facilities maintenance techs install this device wherever a switched outlet combo is needed in commercial or institutional settings.

This combination device is suited for commercial and light institutional applications including offices, schools, hotels, and healthcare facilities where both tamper resistance and switching convenience are required at a single wallbox location. The narrow body fits standard single-gang boxes. Back and side wiring options provide flexibility in tight installations. Break-off tabs allow straightforward 2-circuit conversion when the switch and receptacle must operate on independent circuits. The package contains 4 units per package.

Key Features

• Tamper-resistant shutter mechanism blocks contact access unless both slots are engaged simultaneously by a 2-prong plug
• Single-pole switch and NEMA 5-15R grounding receptacle in one Decora-style device
• Large-head terminal screws accept up to No. 10 copper wire for back and side wiring
• Triple wire power contacts for maximum conductivity and plug retention
• Captive mounting screws and washer-type break-off plaster ears for fast, flush installation
• Break-off tabs enable easy 2-circuit conversion
• Heavy-gauge rust-resistant steel mounting strap

Compatibility

Designed as an OEM-style replacement or new-installation device for standard single-gang wallboxes requiring a combined single-pole switch and tamper-resistant 15-amp grounding receptacle in a Decora form factor.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always shut off the branch circuit at the panel and verify the circuit is de-energized with a voltage tester before beginning work. Tamper-resistant receptacles are required by NEC in specific occupancies including hotel guest rooms, schools, and healthcare facilities — confirm local code requirements before specifying. Do not exceed the 15-amp circuit rating of the device.
