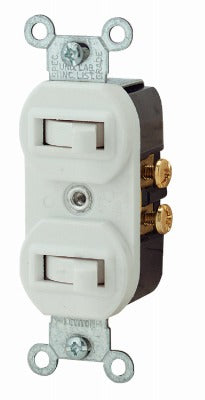

Leviton R62-05241-0WS Single Pole 3-way Switch 15A 277V

Product Description

The LEVITON MFG CO R62-05241-0WS is a commercial specification grade combination switch that integrates a single-pole and 3-way switching function into one device. Rated at 15 amps and 120/277 volts AC, it handles both standard residential voltage and higher commercial voltage applications. The switch uses silver cadmium oxide contacts for reliable, long-life switching performance. Side-wired terminations accept up to No. 10 copper or copper-clad wire. Licensed electricians install this device in commercial and light industrial settings where space-saving combination switching is required.

This combination switch is suited for commercial and specification-grade electrical installations where a single-pole and 3-way control function must share one device location. The break-off fins allow conversion to separate feed circuits, adding flexibility during rough-in and finish wiring. The unit fits a standard duplex wall plate, making it compatible with common electrical box and cover configurations found in office buildings, retail spaces, and commercial tenant improvements. It is sold in packages of 6 units.

Key Features

• Combination single-pole and 3-way switch in one device saves box space
• Rated 15A at 120/277V AC for commercial voltage compatibility
• Break-off fins allow conversion to separate feed circuits
• Silver cadmium oxide contacts for durable, low-resistance switching
• Accepts up to No. 10 copper or copper-clad wire on side-wired terminals
• Fits standard duplex wall plate for straightforward cover installation
• 10-year manufacturer warranty

Compatibility

Designed as a commercial specification grade replacement or new-installation switch that fits standard duplex wall plates and single-gang electrical boxes wired with up to No. 10 copper or copper-clad conductors.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the panel and verify absence of voltage with a meter before making any wire connections. Side-wired terminals should be torqued per the terminal markings on the device. Break-off fins must be fully removed with pliers when converting to separate feed operation before energizing the circuit.
