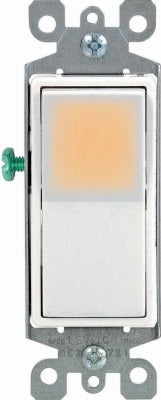

Leviton R12-L5613-2LW 3-way Decora Rocker Switch 15A 277V

Product Description

The LEVITON MFG CO R12-L5613-2LW is an illuminated 3-way Decora rocker switch rated for 15 amps at 277 volts. It is designed for residential and light commercial wiring applications where a single load must be controlled from two locations. The switch supports LED, CFL, and incandescent lamp types without requiring a neutral wire, making it compatible with a broad range of lighting circuits. Dual wiring methods — Quickwire push-in terminals and side-screw terminals — allow the installer to choose the fastest approach for the job at hand. Licensed electricians and qualified electrical contractors are the typical installers.

This switch is suited for standard wall-box installations in residential homes, apartment buildings, and light commercial spaces. It fits single-gang boxes and accepts Decora-style wallplates. The illuminated rocker provides a visible locator glow, useful in hallways, stairwells, and rooms where low-light navigation matters. The Quickwire push-in terminals accept 14 AWG solid copper wire only. Side-screw terminals offer an alternative for stranded or older wiring runs where push-in termination is not preferred.

Key Features

• Illuminated rocker provides locator glow in low-light conditions
• Compatible with LED, CFL, and incandescent bulbs — no neutral required
• Quickwire push-in terminals for faster installation with 14 AWG solid copper wire
• Side-wiring terminals available as an alternative termination method
• Rated 15 amps at 277 volts AC; motor ratings of 1/2 HP at 120 volts and 2 HP at 240 volts
• UL listed; 2-year limited warranty

Compatibility

Designed as an OEM-style replacement or new-installation 3-way switch for standard single-gang Decora wallplate applications in residential and light commercial electrical systems.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Shut off the circuit breaker supplying the circuit before removing the existing switch or making any wire connections. Quickwire push-in terminals on this switch accept 14 AWG solid copper wire only — do not insert aluminum or stranded wire into push-in terminals. Verify correct 3-way traveler wiring before restoring power and testing switch operation.
