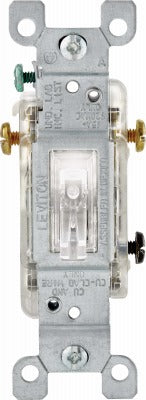

Leviton R00-L1463-00C Illuminated 3-way Toggle Switch 15A

Product Description

The LEVITON MFG CO R00-L1463-00C is a residential-grade, 3-way toggle switch with a built-in bright white LED illuminator. Rated at 15 amps and 120 volts AC, it is designed for standard single-gang wall-box installations where lighting must be controlled from two separate locations. The switch stays illuminated in the OFF position, making it easy to locate in low-light or dark environments. No neutral wire is required for operation, simplifying retrofit installs in older wiring configurations. A ground screw is included for code-compliant grounding.

This switch is suited for residential lighting circuits in bedrooms, hallways, stairwells, and any two-point switching application. It accepts LED, CFL, and incandescent bulb loads, making it broadly compatible with current lamp technology. Wiring connections are made via Quickwire push-in terminals or traditional side-wired screw terminals, giving the installer flexibility based on preference or local code requirements. Wallplate is sold separately. This part ships in a package quantity of 10 units.

Key Features

• Built-in bright white LED illuminator stays lit in the OFF position for easy location in dark areas
• Rated 15 amps at 120 volts AC, residential grade
• Compatible with LED, CFL, and incandescent bulb loads
• No neutral wire required — suitable for retrofit in older wiring systems
• Dual wiring method: Quickwire push-in terminals and side-wired screw terminals
• Ground screw included for NEC-compliant grounding
• Controls lighting from two locations as a 3-way switch pair

Compatibility

Designed as a direct replacement for any standard 3-way toggle switch in residential 120-volt lighting circuits. Compatible with LED, CFL, and incandescent bulb types. No neutral wire required, supporting compatibility with conventional 3-way wiring configurations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off the circuit breaker supplying the circuit before removing the existing switch or making any wiring connections. Verify proper 3-way wiring configuration — this switch requires a traveler pair and a common terminal connection. Wallplate is not included and must be sourced separately.
