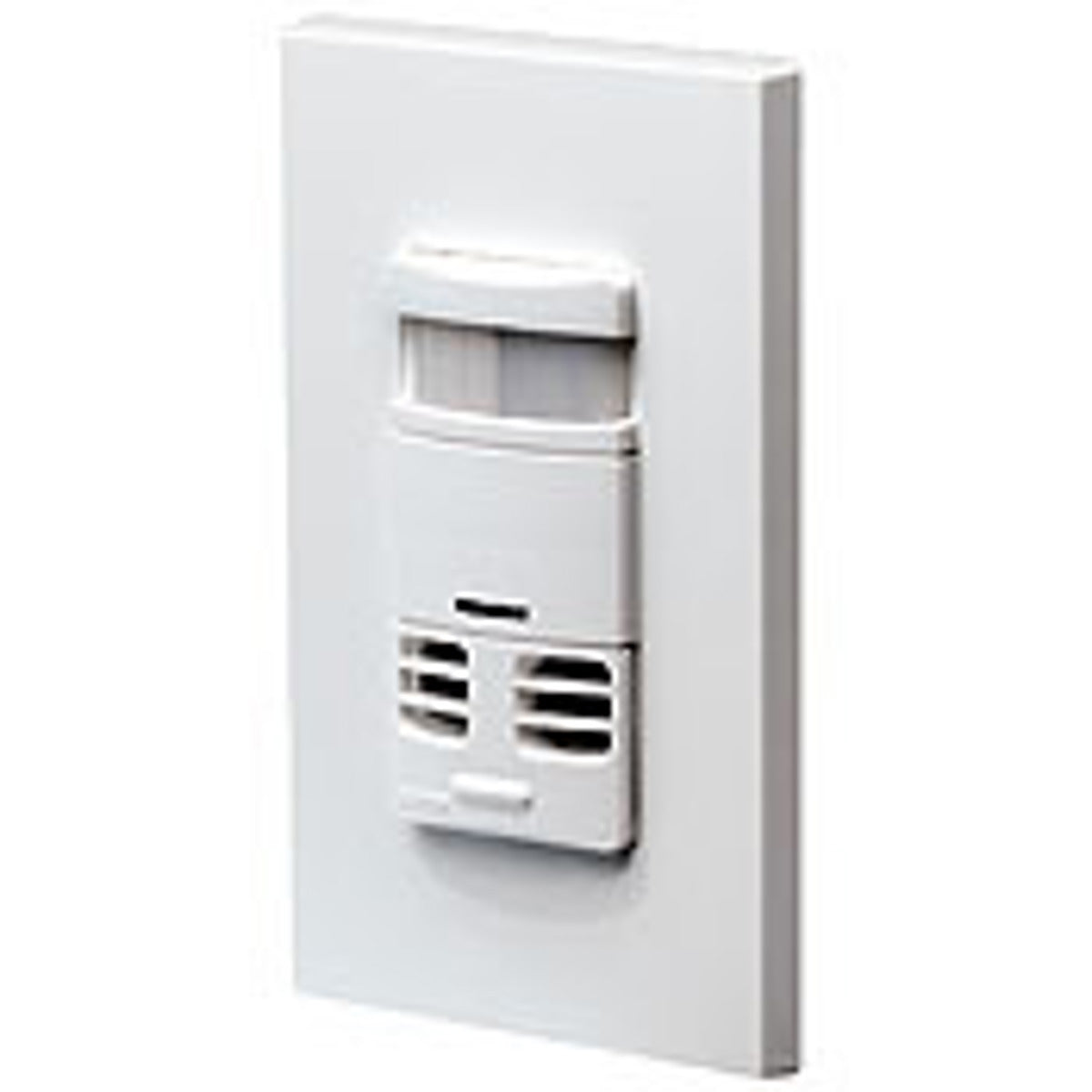

Leviton OSSMT-MDT Ultrasonic/Infrared Wall Switch Sensor 2400 sq ft

Product Description

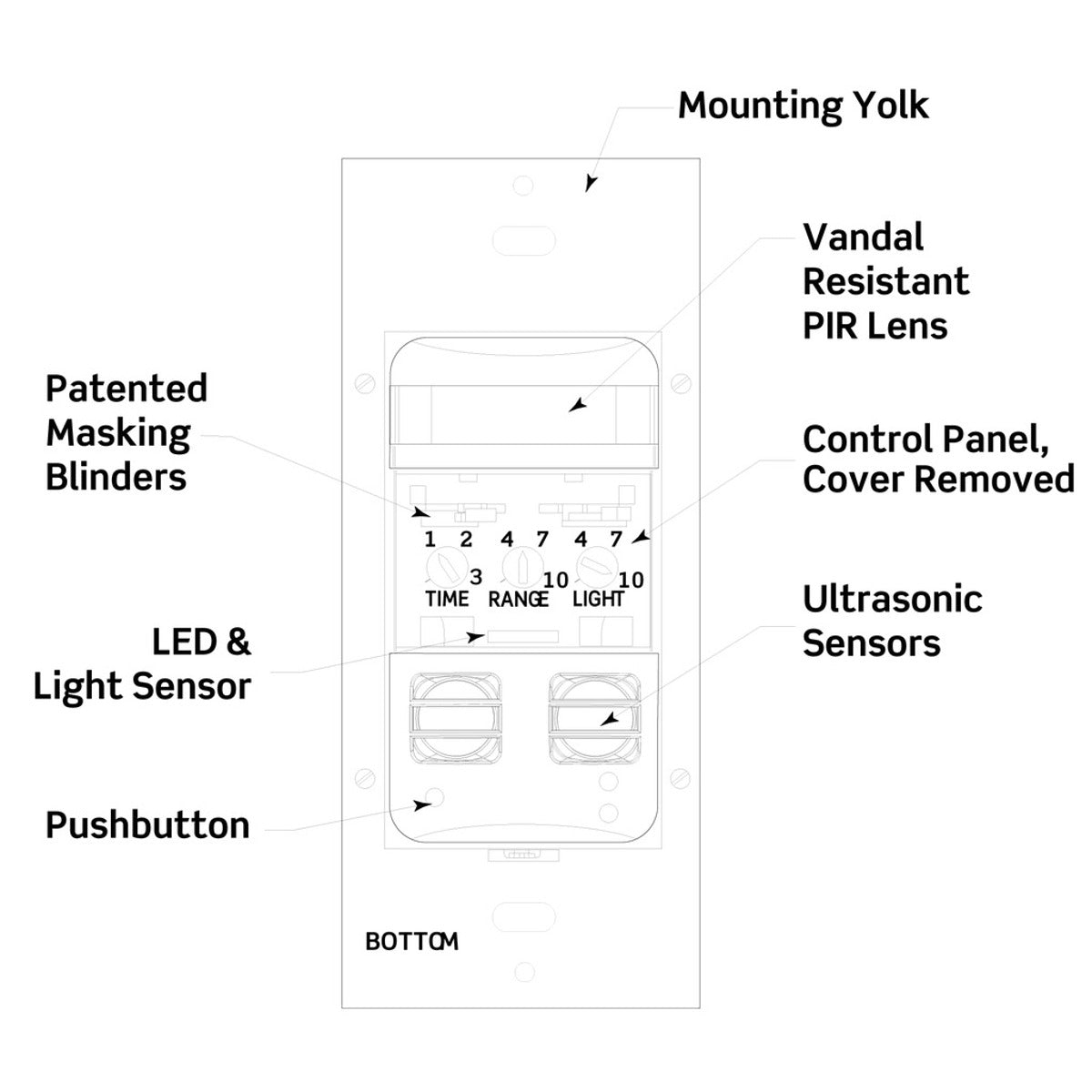

The Leviton OSSMT-MDT is an ultrasonic/infrared wall switch sensor. This multi-technology Decora wall switch occupancy sensor provides automatic lighting control for energy savings and convenience in commercial applications. It features a convenient pushbutton for manual On/Off light switching. The sensor provides coverage up to 2400 sq ft.

• Utilizes Ultrasonic and Infrared technology
• Offers a segmented Fresnel lens for optimum sensitivity
• Features adjustable horizontal field of view

Product Highlights

This sensor is ideal for retrofit applications in private offices, conference rooms, restrooms, and classrooms.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: OSSMT-MDT
• Country of Origin: China

Technical Specifications

• Power Source: Corded Electric
• Operation Mode: Automatic
• Operating Voltage: 120 Volts
• Batteries Included?: No
• Batteries Required?: No
• Included Components: OSSMT-MDT
• Connectivity Protocol: Infrared
• International Protection Rating: IP54
• Catalog Number: OSSMT-MDT
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: China
• Made in USA: No
• Application: Commercial
• Frequency: 50/60 HZ
• Mounting: Wall
• Standard: UL Listed;cUL Listed;CEC Title 24 Compliant;FCC Compliant;NAFTA (CF434)
• Supply Voltage: 120/277 VAC
• UPC: 078477298077
• GTIN: 00078477298077
• Item Type: Occupancy Sensor;Single-Pole Switch
• Operating Temperature: 0 to +50 DEG C
• Storage Temperature: -10 to +85 DEG C
• Relative Humidity: 20% to 90% non-condensing
• Control Output: Manual On/Automatic Off
• Coverage: 2400 sq-ft
• Lamp Type: Fluorescent/Incandescent/Tungsten
• Power Rating: 190 to 500 mW
• Response Frequency: 50/60 Hz
• Sensor Type: PIR/Ultrasonic
• Temperature Rating: 0 to 40 deg C
• Time Delay: 30 s to 30 min
• Type: 1-Pole
• Viewing Angle: 180 deg
• Voltage Rating: 120/277/347 VAC
• Switch Type: Single-Pole
• Adjustment: Self-Adjusting
• Technology: Multi-Technology PIR/Ultrasonic
• Pattern Degrees: 180
• Load Rating: 800W@120V INC 1200VA@120V, 2700VA@277V FL
• Wiring Neutral / Ground: Neutral Required
• Photo Cell: Ambient Override OFF
• Finish: Light Almond
• Standards and Certifications: UL/cUL
• Code Compliance: California Title 24
• Mounting Type: Wall Switch
• Power Consumption: U/S and PIR: 120V 390mW, 277V 480mW, 347V 500mW - PIR only: 120V 190mW, 277V 270mW, 347V 350mW
• Lighting Technology: Fluorescent, Incandescent, Tungsten
• Max. Capacity @ 120VAC: 1200V (Fluorescent), 800W (Incandescent, Tungsten)
• Max. Capacity @ 277VAC: 2700VA (Fluorescent)
• Neutral Wire Connection: Required
• Storage Temperature Range: 14 to 185 F (-10 to 85 C)
• Coverage Angle - Motion Sensor: 180 Degrees
• Item - Motion Sensing and Dimming: Occupancy Sensor
• Color - Motion Sensing and Dimming: Light Almond
• Operating Voltage - Motion Sensing and Dimming: 120 to 277V AC
• Communication Method - Motion Sensing and Dimming: Hard Wired
• Product Line: OSSMT
• Device Type: Occupancy Sensor
• Wiring: Line - Black, Load - Blue, Ground - Green, Neutral - White
• Grade: Commercial
• Listings: UL/cUL
• Title 24 Compliant: Yes
• USMCA Compliant: Yes
• Product Type: Occupancy Sensor
• ADI Part Number: LV-OSSMTMDT
• Application/Usage: Classrooms, Conference Rooms, Lounges, Multi-location switching (similar to 3-way), Private and Executive Offices, Restrooms, Retrofit, Storage areas, Training Areas
• Maximum Time Delay: 30-Minute
• Operating Temperature (T-T): 32-104 F
• Input Voltage: 120-277V AC
• Mount Type: Wall Mount
• Watts/ 200b120VAC: 800W/120V
• VA Rating: 1200VA/120V, 2700VA/277V
• Voltage: 120/277V AC
• Load Type: Ballast or Incandescent
• Switch Operation: Auto On/Off, Manual On/Auto Off, Manual Off
• Field of View - deg: 180-deg
• Coverage - area: 1200 sq. ft.
