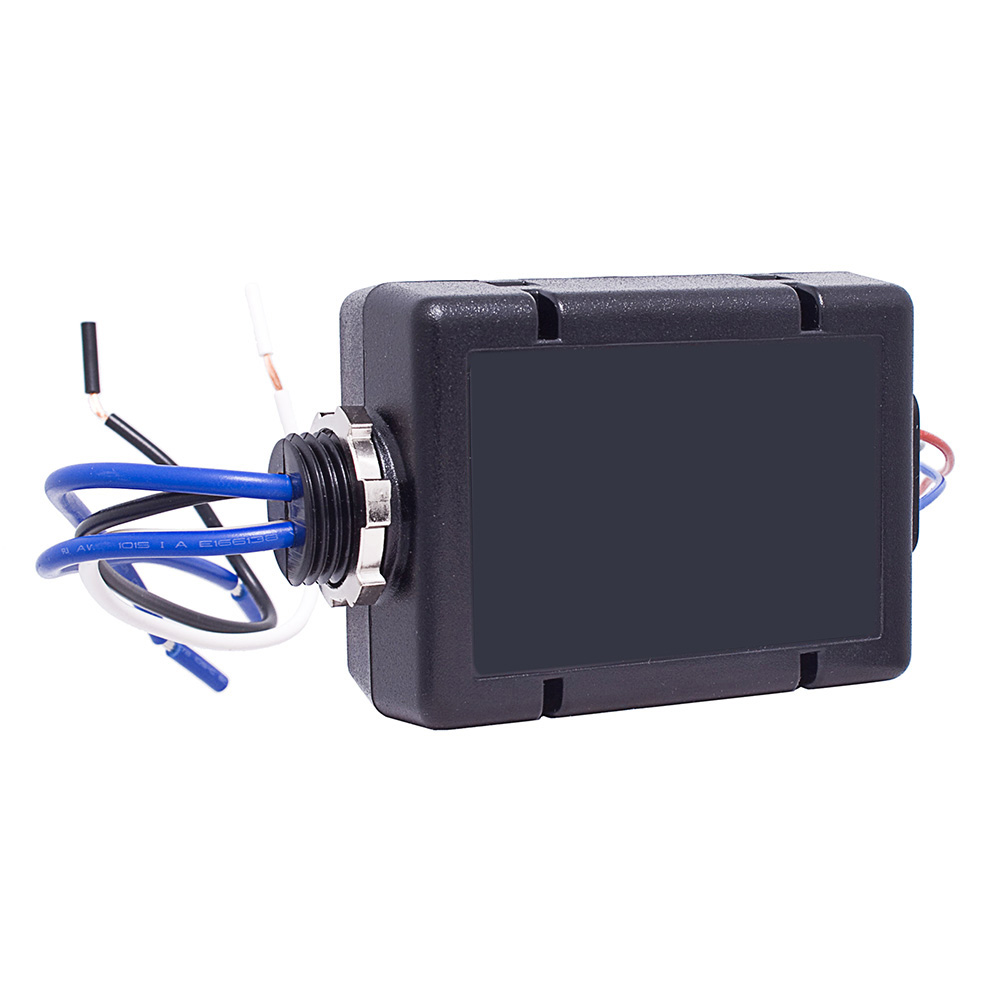

Leviton OSP20-DA0 Power Pack 120-277V USA

Product Description

The Leviton OSP20-DA0 is a power pack designed for fluorescent and incandescent applications. It operates on a voltage range of 120 to 277 volts AC and is compatible with various occupancy sensors. The power supply outputs a current of one hundred fifty milliamps and can handle a power rating of two horsepower at one hundred twenty volts and two horsepower at two hundred forty volts. This product is made in the USA and complies with Title 24 and ASHRAE 90.1 standards.

• Power supply output: 150mA
• Voltage range: 120 to 277 VAC
• Commercial applications

Product Highlights

This power pack supports advanced lighting control for energy efficiency in commercial settings.

Product Information

Standard Information

• Brand: Leviton
• Country of Origin: USA

Technical Specifications

• Catalog Number: OSP20-DA0
• Power Rating: 2 hp
• Input Voltage: 120 to 277 VAC
• Output Voltage: 24 VDC
• Width: 3.811 inches
• Height: 2.400 inches
• Depth: 1.432 inches
• Frequency Rating: 50/60 Hz
• Material: Plastic
• Amperage Rating: 20 A/150 mA
• Relay Rating: 0.5 A
• Environmental Conditions: Relative Humidity (0% to 90%, Non-Condensing)
