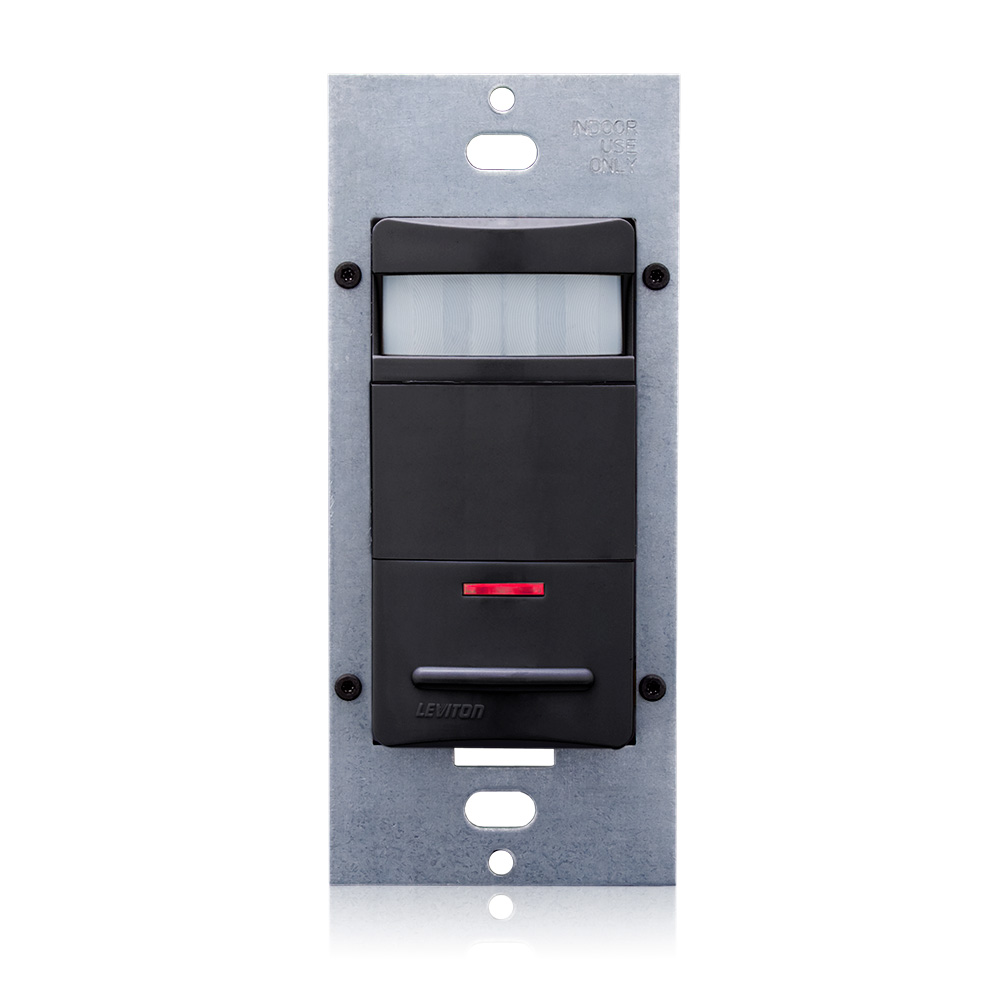

Leviton ODS10-IDE EB PIR OCC SENS WALL 120/277V

Product Description

The Leviton ODS10-IDE is an occupancy sensor designed for wall mounting. This sensor operates on a voltage range of 120 to 277 VAC and features passive infrared detection technology. It provides a coverage area of up to 2100 square feet with a 180-degree viewing angle, suitable for detecting motion in various commercial settings.

• Auto ON/Auto OFF lighting control with manual override
• Adjustable time delay from thirty seconds to thirty minutes
• Vandal-resistant design ensuring durability

Product Highlights

This sensor meets CEC Title 20/24 compliance standards. It supports installations where a neutral wire is not available and accommodates both fluorescent and incandescent lamps.

Product Information

Standard Information

• Catalog Number: ODS10-IDE
• Manufacturer: Leviton

Technical Specifications

• Type: Occupancy sensor
• Power Consumption: 100 mW at 120 VAC, 250 mW at 277 VAC
• Frequency Rating: 60 Hz
• Temperature Rating: 32 to 122 degrees Fahrenheit

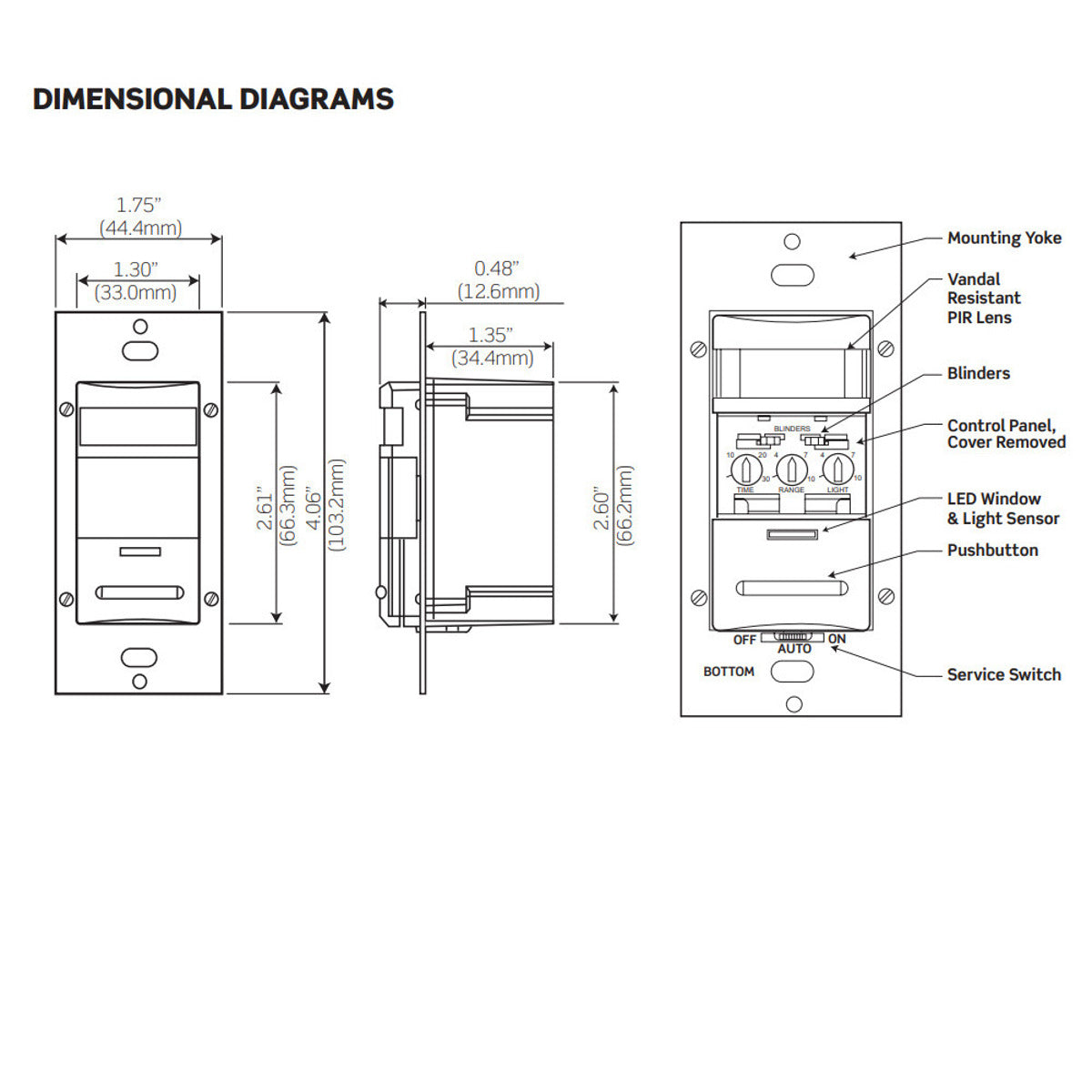

• Dimensions: 1.75 inches wide x 1.35 inches deep x 4.06 inches high
• Response Time: 30 seconds to 30 minutes
• Applications: Ideal for commercial use, including offices, classrooms, and conference rooms
