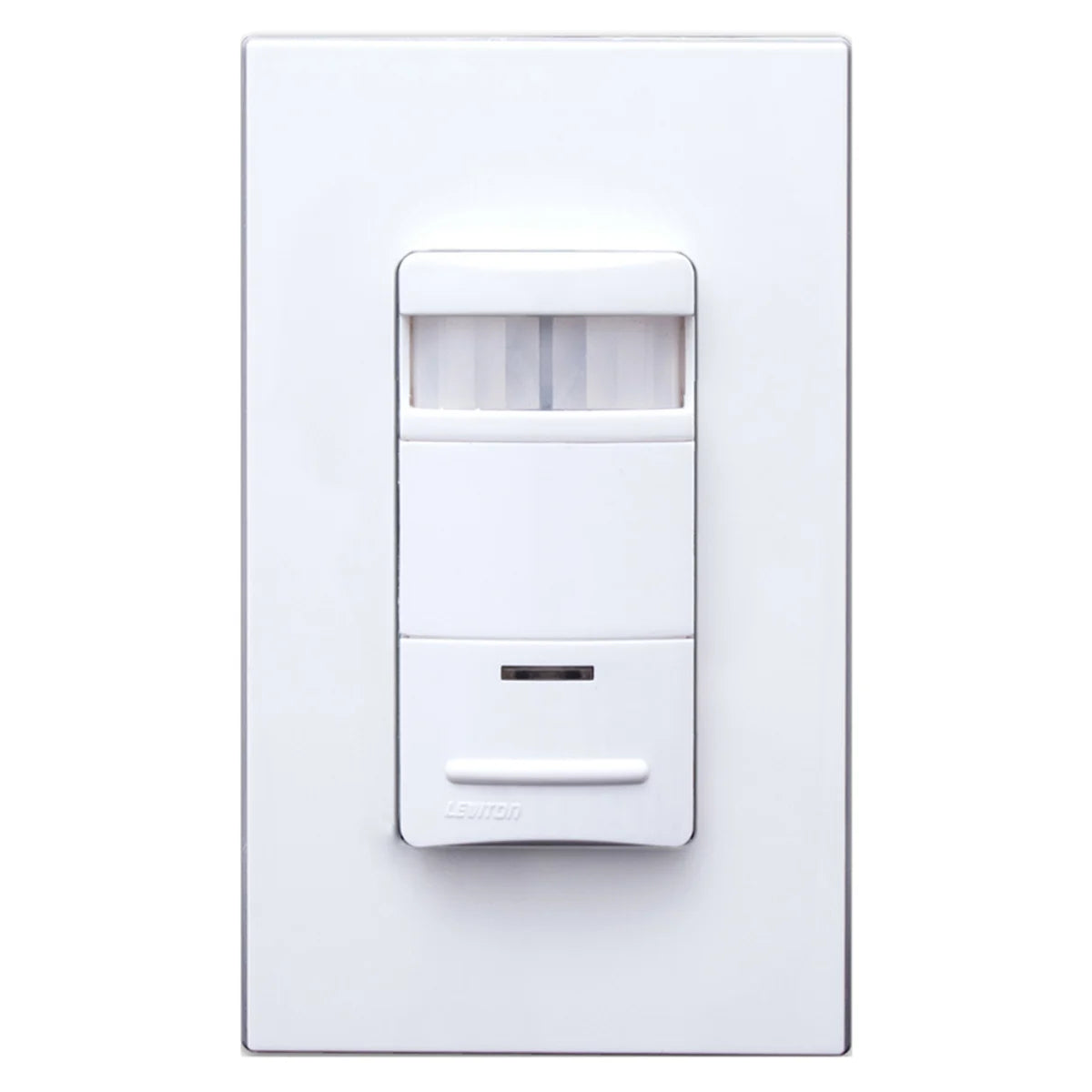

Leviton ODS06-IDW Passive Infrared Wallbox Occupancy Sensor 120/277VAC 180 Degree

Product Description

Leviton ODS06-IDW is a passive infrared wallbox occupancy sensor designed for efficient energy use. This model operates at 120/277 volts and provides coverage for up to 1600 square feet. It features an adjustable time delay setting from thirty seconds to thirty minutes, enabling customizable user preferences for energy savings and convenience. The sensor is suitable for various lighting types, including fluorescent and incandescent.

• Compatible with LED drivers and other lighting circuits
• Automatic on/manual on control selectivity
• UL Listed and Title 24 Compliant

Product Highlights

Ideal for meeting the demands of small offices and conference rooms, the sensor ensures that lights are activated when needed and turned off automatically.

Product Information

Standard Information

• Catalog Number: ODS06-IDW
• Manufacturer: Leviton

Technical Specifications

• Power Rating: 600 W, 800 VA, 1500 VA, 1/4 hp
• Voltage Rating: 120/277 VAC
• Sensor Type: PIR

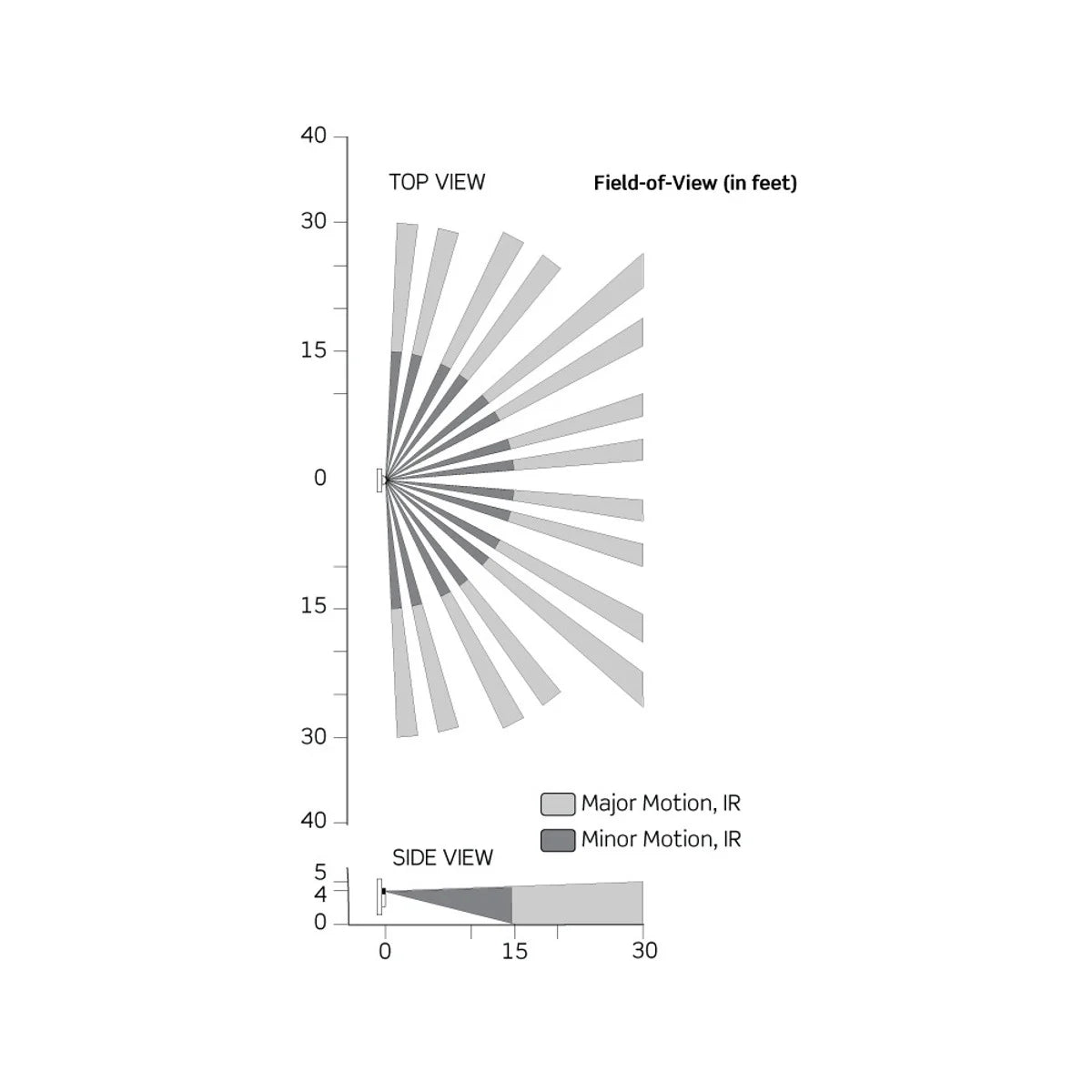

• Coverage Area: 1600 sq-ft
• Viewing Angle: 180 degrees
• Temperature Rating: 32 to 122 degrees F

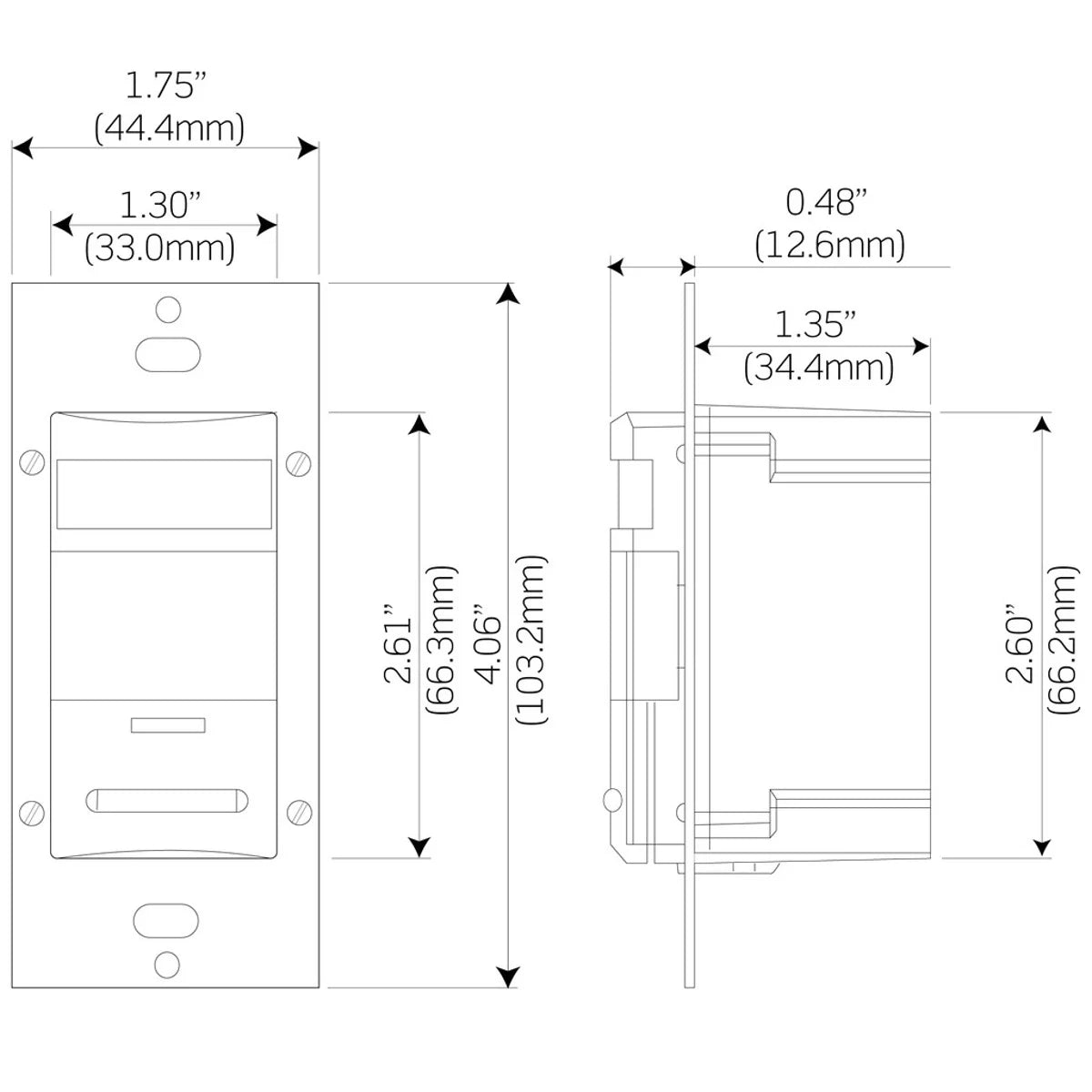

• Dimensions: 4.06 inches H x 1.75 inches W x 1.85 inches D
• Time Delay Settings: 30 seconds to 30 minutes
