Leviton MSPSW-WST Toggle Switch Wiring Module 20 Amp 347 Volt

Product Description

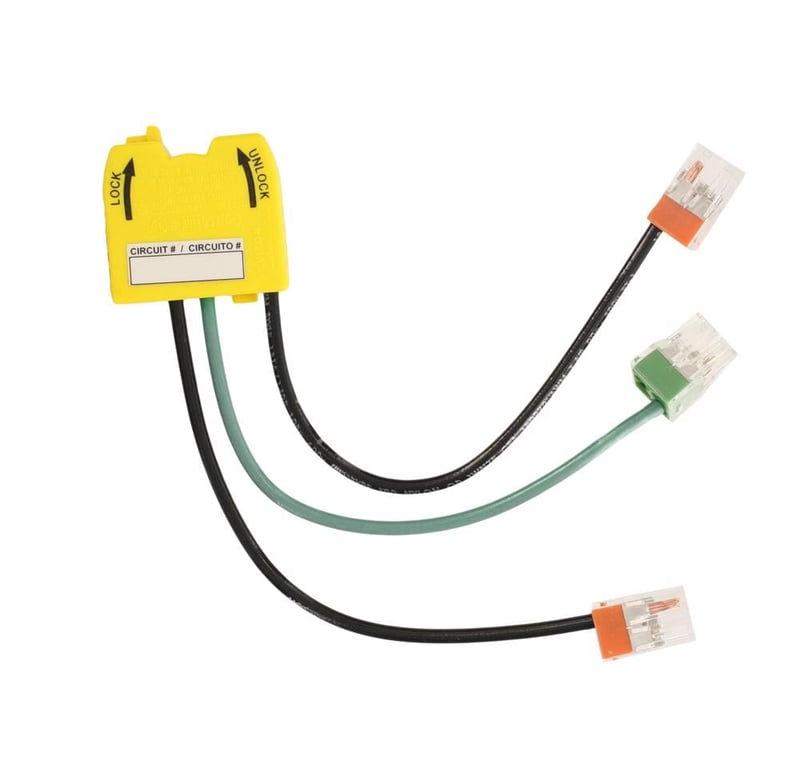

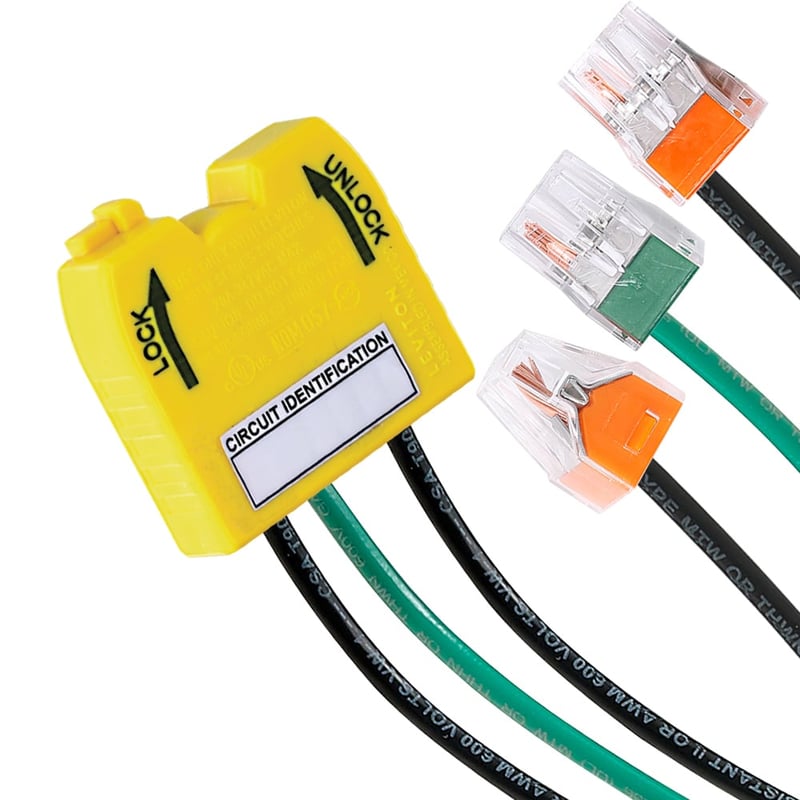

The Leviton MSPSW-WST is a toggle switch wiring module rated for twenty amps and three hundred forty-seven volts. This product features a ninety-degree angled modular wire lead assembly, designed for efficient installation. It includes six stranded #12 THHN wire leads, suitable for various wiring needs. The module also comes with four port push wire WAGO connectors attached to all three leads.

• Rated for 20 Amps and 347 Volts
• 90-degree angled modular wire assembly
• Includes stranded #12 THHN wire leads

Product Highlights

The MSPSW-WST is built for commercial applications where reliable electrical connections are essential. Its modular design allows for quick and secure connections, making it ideal for electricians and installers.

Product Information

Standard Information

• Brand: Leviton
• Part Number: MSPSW-WST

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 347 V
• Number of Poles: 1 Pole
• Size: 1.55 H x 1.50 W x 0.40 D IN
• Color: Yellow
• Connection Type: Wire Lead
• Operating Temperature: -40 to +65 DEG C
• Environmental Rating: Flammability Rated V-2 per UL94
