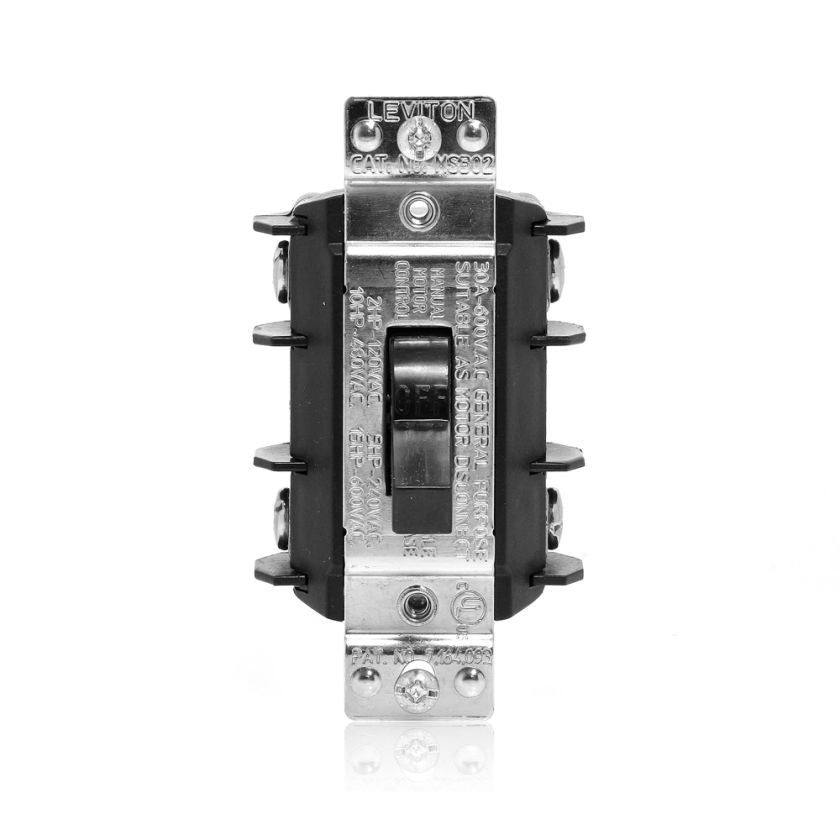

Leviton MS302-DSB AC Motor Starting Switch 30 Amp 600V Double-Pole

Product Description

The Leviton MS302-DSB is a reliable AC motor starting switch designed for industrial applications. This switch operates at thirty amps and six hundred volts, ideal for use in single-phase systems. It features double-pole configuration suitable for motor disconnect applications.

• 30 Amp and 600 Volt capacity
• Non-grounding back and side wiring
• Standard toggle actuator for easy operation

Product Highlights

This switch is engineered for commercial setups, ensuring safety and compliance with NEMA and UL standards. It is made from thermoplastic polyester and is rated for environments ranging from negative forty to sixty degrees Celsius.

Product Information

Standard Information

• Manufacturer: Leviton
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: MS302-DSB
• Amperage Rating: 30 A
• Voltage Rating: 600 VAC
• Number of Poles: 2
• Application: Commercial
• Material: Thermoplastic Polyester
• Operating Cycles: 100
• Standards: NEMA (WD-1 & WD-6), UL508, cUL per CSA C22.2 No. 111
