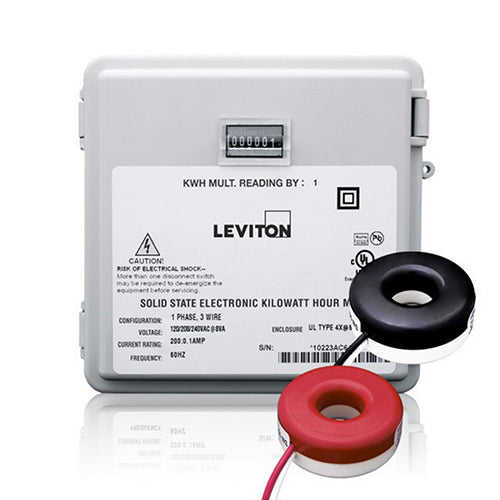

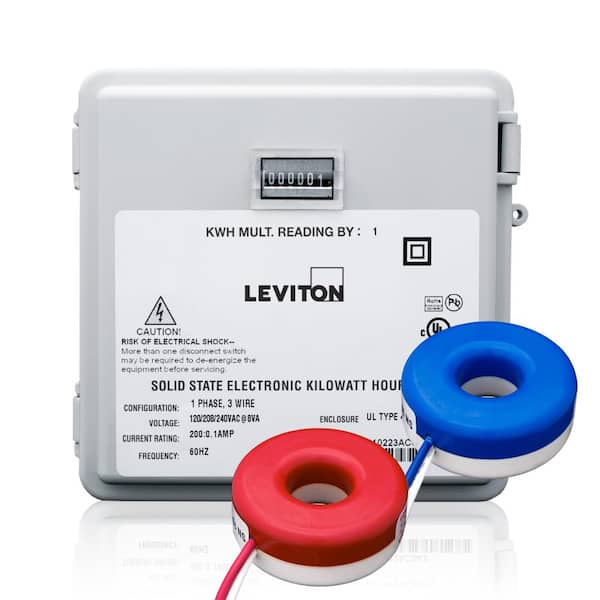

Leviton MO240-1SW Mini Meter Kit 100A with 2 Solid CTs

Product Description

The Leviton MO240-1SW mini meter kit is designed to accurately capture power consumption measurements. It features an isolated pulse output channel for automated meter reading and utilizes revenue-grade current transformers. Suitable for multi-tenant residential and commercial applications. It is easy to install in new construction and retrofits.

• Measures kWh
• Equipped standard with an isolated pulse output channel for automated meter reading
• Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformer that conform to all applicable ANSI requirements or 1% accuracy split core current transformer

Product Highlights

The Leviton MO240-1SW mini meter kit is easy to install and accurately captures power consumption measurements.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: MO240-1SW
• Country of Origin: United States

Technical Specifications

• Accuracy: +/- 0.5% of registration @ 1.0pf. 2 to 200 A
• Amperage Rating: 100 A
• Display Type: LCD
• Enclosure Type: NEMA 4X
• Frequency Rating: 50/60 Hz
• Phase: 1 ph
• Power Rating: 3 W
• Type: 2-Element Outdoor
• Voltage Rating: 120/208/240 VAC
• Manufacturer: Leviton
• Amperage: 100 A
• CTs Included: 2 Solid Core CTs
• Communication: Pulse Output
• Enclosure: Outdoor (NEMA 4X)
• Meter Configuration: Single Meter
• Product Line: Mini Meters Kit
• Product Type: Submeter and Current Transformer(s)
• Application: Multi-tenant residential,Certain commercial and industrial applications such as campgrounds and marinas,Load profiling and benchmarking ,AMR/BAS/BMS/EMS integration,Usage aggregation,Tenant cost allocation,Measurement and verification
• Part Number: MO240-1SW
• Size: 100-Amp
• Item Package Quantity: 1
• Included Components: MO240-1SW
• Brand: Leviton
• MPN: MO240-1SW
• Model: MO240-1SW
• UPC: 078477603086
• Country of Origin: United States
• Number Of Phases: 1
• Primary Current: 100 AMP
• Primary Voltage: 120/208/120/240 (Split Phase) V
• Type Of Core: Solid
• Input Configurations: 1 Phase, 2 Wire 1 or 2 Phase, 3 Wire
• Supply Voltage Range (L1 or L2 to Neutral): 102 VAC to 138 VAC
• Maximum Input Power (L1 and L2): 8 VA
• Maximum Rated Current: 440 A primary for 400 A models 220 A primary for 200 A models 110 A primary for 100 A models 0.11 A secondary for 0.1 A secondary models 0.22 A secondary for 0.2 A secondary models
• Line Frequency: 50 to 60 Hz
• Power Factor Range: 0.5 to 1.0, Leading or Lagging
• Operating Temperature Range: -30 to 60 C
• Rated Pollution Degree: 2
• Rated Relative Humidity: 80%
• CT Inputs: CT1: X1 Current Transformer input, CT1. Colored wire of CT 1 CT1: X2 Current Transformer input, CT1. White wire of CT1 CT2: X1 Current Transformer input, CT2.Colored wire of CT2 (7B and 5B models only) CT2: X2 Current Transformer input, CT2. White wire of CT2 (7B and 5B models only)
• Outputs: 100, Isolated Output (100 Wh/P, Kh=100) Isolated Pulse Output: 50 watthours on, 50 watthours off, referenced to ISOL COM 1000, Isolated Output (1 kWh/P, Kh=1000) Isolated pulse output: 500 watthours on, 500 watthours off, referenced to ISOL COM (not available on models with T suffix) ISOL COM Isolated common for 10/100/1000 isolated outputs Counter (kh = 100 or kh = 1000) For 12 VDC electro-mechanical counter Counter (kh = 100 or kh = 1000) For 12 VDC electro-mechanical counter +12 VDC (MMS and MMD models only) 12 VDC Output; current rating is 3 mA max.
• LED Indicators: Power LED (Green) Illuminates when the meter is supplied with proper voltage Load LED (Green) 50% duty cycle (at constant load) LED to verify proper meter function when connected to a load. At 200 watts, LED will illuminate for 1.5 minutes, then turn off for 1.5 minutes; with no load, LED will remain on or off Reverse Phase LED (Red) Illuminates when a problem with meter phasing exists. With no load, LED may be on or off. See CT installation section for instructions.
• LCD Display: Optional LCD display that shows total kWh
