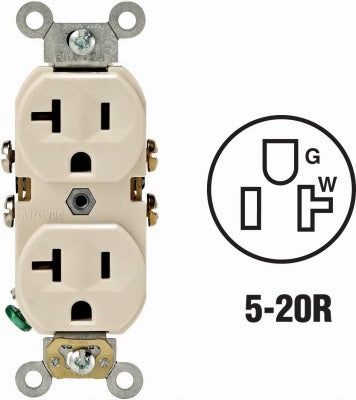

Leviton Mfg Co S06-0BR20-0TS 20A Commercial Outlet 10-pack

Product Description

The LEVITON MFG CO S06-0BR20-0TS is a commercial-grade duplex electrical outlet rated at 20 amps, designed for demanding wiring installations where box space is limited. Its shallow profile maximizes wiring room inside the electrical box, while large-head terminal screws and back-wiring clamps accept up to No. 10 copper wire for solid, code-compliant connections. Triple wire power contacts provide maximum conductivity and reliable plug retention over the lifetime of the device. Licensed electricians and commercial electrical contractors are the primary installers of this receptacle.

This outlet is suited for commercial and light industrial applications where durable, high-cycle receptacles are required. The shallow design makes it a practical choice in retrofit situations where box depth is restricted. Break-off tabs allow straightforward 2-circuit conversion, adding flexibility for split-circuit wiring configurations common in commercial buildouts. This SKU is packaged as a quantity of 10 units per order, making it well suited for multi-outlet rough-in work on larger jobs.

Key Features

• Shallow design maximizes wiring room inside standard electrical boxes
• Side-wired with large-head terminal screws and back-wiring clamps accepting up to No. 10 copper wire
• Triple wire power contacts for enhanced conductivity and plug retention
• Captive mounting screws speed up installation and prevent dropped hardware
• Washer-type break-off plaster ears for flush wall alignment
• Break-off tabs enable easy 2-circuit conversion
• Heavy-gauge rust-resistant steel mounting strap

Compatibility

Designed as an OEM-style commercial-grade duplex receptacle for standard single-gang electrical boxes in commercial and residential wiring applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Always de-energize the circuit at the breaker panel and verify the absence of voltage with a meter before making any wiring connections. Back-wiring clamps and side terminals must not be used simultaneously on the same circuit conductor. Verify that the mounting strap is secured flush to the box before applying the cover plate.
