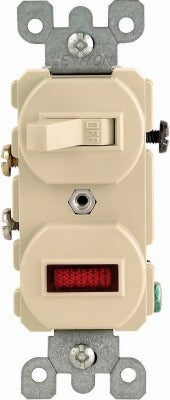

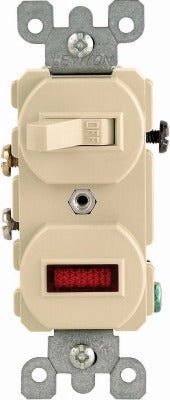

Leviton Mfg Co S03-05226-0IS Switch Pilot Light 15A 120V

Product Description

The LEVITON MFG CO S03-05226-0IS is a commercial specification grade combination single pole switch and neon pilot light designed for use in commercial electrical installations. Rated at 15 amps and 120 volts AC, it integrates a 1/2 HP motor-rated switch with a 1/25W, 125-volt neon pilot light into a single device. The switch features silver cadmium oxide contacts for reliable switching performance and accepts up to No. 10 copper or copper clad wire via side-wired connections. Licensed electricians performing commercial or light industrial wiring work are the primary installers of this device.

This combination device is suited for commercial settings where a switched circuit requires a visible indicator light at the control point. Typical applications include lighting circuits, exhaust fan controls, and other branch circuit loads in office, retail, or light industrial environments. It fits a standard duplex wall plate, allowing straightforward integration into existing electrical rough-in work. The unit is sold in a package quantity of six, making it practical for multi-location installations on the same job.

Key Features

• Single pole switch and neon pilot light combined in one device
• Rated 15A at 120V AC with 1/2 HP motor rating at 120V
• Neon pilot light rated 1/25W at 125 volts for circuit-on indication
• Silver cadmium oxide contacts for long-term switching reliability
• Side-wired terminals accept up to No. 10 copper or copper clad wire
• Fits standard duplex wall plate for easy installation
• 10-year warranty

Compatibility

Designed as a commercial specification grade replacement or new-installation device compatible with standard duplex wall plates in 120V single pole switching applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage before beginning any wiring work. Use copper or copper clad conductors only, sized no larger than No. 10 AWG, and terminate to the side-wired terminals. Do not exceed the device ratings for voltage, amperage, or motor load.
