Leviton Mfg Co S02-0BR15-0WS Duplex Outlet White 10-pack

Product Description

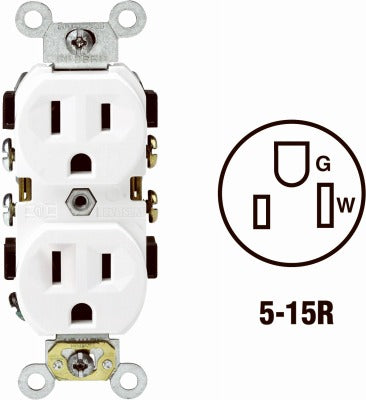

The LEVITON MFG CO S02-0BR15-0WS is a commercial-grade 15-amp duplex outlet designed for professional electrical installations in residential and commercial settings. Its shallow-body design maximizes wiring room inside the box, a practical advantage in retrofit and new-construction work where box fill is tight. Side-wired terminals with large-head screws and back-wiring clamps accept up to No. 10 copper wire, supporting both quick-connect and screw-terminal wiring methods. Triple wire power contacts deliver strong plug retention and consistent conductivity across the life of the device. This SKU is packaged in quantities of 10, making it efficient for rough-in and multi-unit projects.

This duplex outlet is suited for commercial and residential branch-circuit wiring in standard single-gang boxes. The shallow profile makes it a practical choice in remodel work where box depth is limited. Captive mounting screws speed up the device-hanging step, and washer-type break-off plaster ears allow flush alignment against finished wall surfaces. Break-off tabs enable straightforward 2-circuit conversion when a split-circuit application is required. The heavy-gauge rust-resistant steel mounting strap holds up in demanding job-site and occupancy conditions.

Key Features

• Shallow design maximizes wiring room inside the electrical box
• Side wired with large-head terminal screws and back-wiring clamps accepting up to No. 10 copper wire
• Triple wire power contacts for reliable conductivity and plug retention
• Captive mounting screws for faster device installation
• Washer-type break-off plaster ears for flush wall alignment
• Break-off tabs support easy 2-circuit conversion
• Heavy-gauge rust-resistant steel mounting strap
• UL listed; limited 10-year warranty

Compatibility

Designed as an OEM-style commercial-grade replacement or new-installation duplex outlet for standard single-gang electrical boxes wired with up to No. 10 copper conductors.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage with a meter before making any wiring connections. Back-wiring clamps and side terminals should not be used simultaneously on the same circuit conductor. Confirm proper box fill calculations before installing in shallow or crowded boxes.
