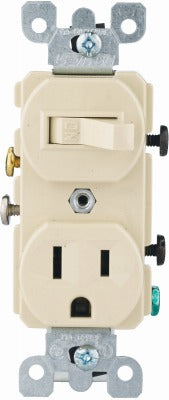

Leviton Mfg Co S01-05225-0IS Switch Outlet Combo 15A

Product Description

The LEVITON MFG CO S01-05225-0IS is a heavy-duty, specification-grade single pole switch and grounded outlet combination device designed for commercial and residential electrical installations. It accepts conductors up to No. 10 AWG and features break-off fins that allow conversion to a 2-circuit configuration. The outlet can be wired to operate independently of the switch or controlled directly by it, giving electricians flexible wiring options in a single device. The switch is rated at 15 amps at 120 volts AC, and the outlet is rated at 15 amps at 125 volts with a NEMA 5-15R receptacle configuration. It is UL listed for code-compliant installations.

This combination device is suited for wall-box installations in commercial, institutional, and residential settings where a switched outlet or independent circuit control is required at a single location. It is commonly installed by licensed electricians in offices, classrooms, utility rooms, and similar environments where space is limited and a dedicated switch and outlet must share a single gang box. The package quantity is 10 units per pack, making it practical for new construction and retrofit projects requiring multiple installations.

Key Features

• Specification-grade heavy-duty construction for demanding commercial applications
• Break-off fins allow 2-circuit conversion for independent switch and outlet wiring
• Outlet can be wired independent of or controlled by the switch
• Accepts conductors up to No. 10 AWG
• NEMA 5-15R grounded outlet configuration
• UL listed for code-compliant installation

Compatibility

Designed as an OEM-style replacement or new-installation single pole switch and outlet combination fitting standard single-gang electrical boxes in 15-amp branch circuit applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always shut off and lock out the branch circuit breaker before beginning any wiring work. Verify conductor size does not exceed No. 10 AWG before terminating. If configuring for 2-circuit operation, remove the appropriate break-off fin before mounting the device in the box.
