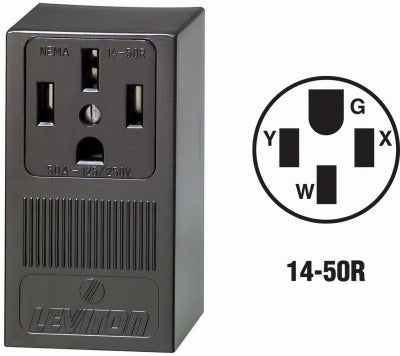

Leviton Mfg Co R20-55050-P00 Range Outlet 50A Nema 14-50R

Product Description

The LEVITON MFG CO R20-55050-P00 is a surface-mount range outlet rated for 50 amps at 125/250 volts, designed for residential and light commercial electric range installations. This 3-pole, 4-wire grounding outlet features lay-in terminals that accept conductors up to No. 4 AWG and is compatible with both copper and aluminum wiring. The outlet measures 2.15 inches in diameter and is finished in black. It carries a NEMA 14-50R configuration and is UL listed, meeting standard requirements for high-amperage cooking appliance circuits. Licensed electricians install this outlet as part of a dedicated 50-amp branch circuit serving electric ranges and similar large cooking appliances.

This outlet is suited for residential kitchens and light commercial settings where a dedicated 50-amp, 125/250-volt circuit supplies an electric range or cooktop. The NEMA 14-50R configuration is the standard receptacle type for modern electric ranges. The surface-mount design makes it a common choice for retrofit installations where flush-mount access is not available. Sold in a package of 6 units, making it practical for multi-unit residential projects or stocking purposes. The lay-in terminal design speeds up field termination compared to screw-clamp alternatives.

Key Features

• 3-pole, 4-wire grounding configuration per NEMA 14-50R standard
• 50-amp rating at 125/250 volts for high-demand range circuits
• Lay-in terminals accept conductors up to No. 4 AWG
• Compatible with both copper and aluminum wiring
• UL listed for safety compliance
• Surface-mount design at 2.15 inches diameter, finished in black

Compatibility

Designed as a NEMA 14-50R surface range outlet for use on dedicated 50-amp, 125/250-volt branch circuits serving electric ranges and similar large cooking appliances where copper or aluminum conductors up to No. 4 AWG are used.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize the circuit at the breaker panel and verify absence of voltage before beginning any wiring work. Confirm the branch circuit is a dedicated 50-amp circuit with the correct conductor gauge before terminating. Do not exceed the No. 4 AWG maximum conductor size specified for the lay-in terminals.
