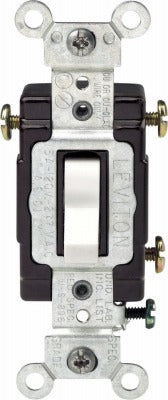

Leviton Mfg Co C22-05503-LHW 3-way Lighted Toggle Switch

Product Description

The LEVITON MFG CO C22-05503-LHW is a commercial specification grade, 3-way lighted toggle switch designed for long-life performance in commercial and residential electrical installations. The switch stays lit when power is off, providing a visual locator in low-light conditions. Captive mounting screws speed up installation, while large-head terminal screws are backed out and staked for fast side wiring of conductors up to No. 10 copper wire. Large silver-cadmium oxide contacts are engineered for extended contact life under repeated switching cycles. This unit is sold in a package of 5 and carries a limited 10-year warranty.

This switch is suited for 3-way switching applications in commercial and light commercial environments where specification grade components are required. Typical installations include corridors, stairwells, large rooms, and any location requiring control of a single lighting circuit from two points. The lighted toggle is especially useful in spaces where occupants need to locate the switch in the dark. Licensed electricians handle installation in accordance with NEC requirements for the applicable circuit type.

Key Features

• Stays lit when power is off, functioning as a switch locator
• Captive mounting screws for fast, secure installation
• Large-head terminal screws backed out and staked for side wiring up to No. 10 copper wire
• Heavy-gauge rust-resistant steel mounting strap with break-off plaster ears for precise alignment
• Large silver-cadmium oxide contacts for extended service life
• UL listed, commercial specification grade construction

Compatibility

Designed as a specification grade 3-way lighted toggle switch for commercial and residential wiring applications requiring a white finish toggle device in a standard single-gang wallbox.

Installation Notes

Installation should be performed by a licensed electrician in compliance with NEC requirements for switch wiring and box fill. De-energize the circuit at the breaker panel and verify absence of voltage with a meter before making any wiring connections. The break-off plaster ears allow precise flush alignment with wall surfaces of varying depth. Do not exceed No. 10 copper wire gauge on the terminal screws.
