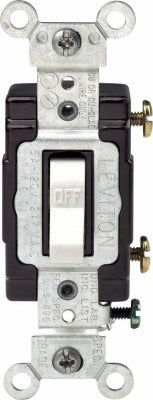

Leviton Mfg Co C22-05501-LHW Illuminated Toggle Switch 5-pack

Product Description

The LEVITON MFG CO C22-05501-LHW is a commercial specification grade, single pole illuminated toggle switch engineered for long service life in demanding applications. The switch features a pilot light that stays lit when the circuit is off, providing a visible locator in darkened spaces. Large silver-cadmium oxide contacts deliver reliable switching performance over extended duty cycles. Captive mounting screws speed up installation, and large-head terminal screws are backed out and staked for fast side wiring of up to No. 12 copper wire. Licensed electricians install this switch in commercial and institutional environments where specification grade components are required.

This switch is suited for commercial and institutional settings including municipal facilities, government buildings, hospitals, schools, office buildings, department stores, and malls. The illuminated toggle design is particularly useful in corridors, stairwells, and utility rooms where locating the switch in low-light conditions is a priority. The unit ships in a package quantity of five, making it practical for multi-outlet or multi-location installations on a single project. The white finish aligns with standard commercial wiring device color conventions.

Key Features

• Illuminated toggle stays lit when the circuit is off for easy switch location in dark conditions
• Commercial specification grade construction rated for institutional and heavy-use environments
• Large silver-cadmium oxide contacts for extended contact life
• Captive mounting screws and backed-out terminal screws for fast, secure side wiring up to No. 12 copper
• Heavy-gauge rust-resistant steel mounting strap with break-off plaster ears for best alignment
• UL listed for safety compliance
• Limited 10-year warranty

Compatibility

Designed as a specification grade single pole toggle switch for commercial wiring device applications in standard wall box installations.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off and lock out the circuit breaker supplying the circuit before beginning any wiring work. Side wiring terminals accept up to No. 12 copper wire. Break off plaster ears as needed for flush mounting in finished wall surfaces.
