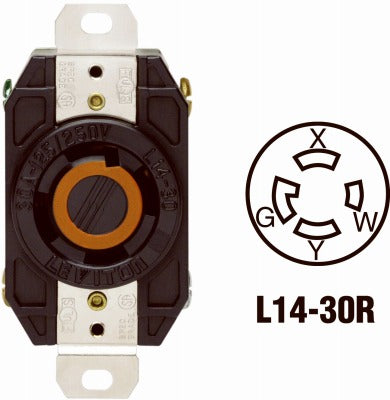

Leviton Mfg Co 065-02710-000 Locking Receptacle 30A

Product Description

The LEVITON MFG CO 065-02710-000 is a single flush locking receptacle built for high-abuse electrical installations. The unit features a 1-piece brass contact design with high copper content and nickel-plated clamp-type terminals, providing a secure and low-resistance connection. The mounting strap is extra-thick at 0.50 inches and nickel-plated brass, reinforcing the assembly against mechanical stress in demanding environments. Rated at 30 amps, this receptacle is intended for permanent installation by licensed electricians where a positive locking connection is required to prevent accidental disconnect. It carries UL listing and CSA certification and includes a limited lifetime warranty.

This locking receptacle is suited for commercial and industrial electrical applications where standard non-locking outlets are insufficient. Typical installations include equipment rooms, mechanical spaces, construction sites, and other locations subject to vibration, frequent plug cycling, or physical abuse. The flush-mount form factor integrates cleanly into standard electrical boxes. A 1.60-inch diameter wall plate is required for finish installation and is not included. The 30-amp rating supports heavy-draw equipment commonly found in HVAC, industrial, and trade service environments.

Key Features

• Single flush locking receptacle design for positive plug retention
• Extra-thick 0.50-inch nickel-plated brass mounting strap for high-abuse applications
• 1-piece 0.040-inch brass contacts with high copper content for reliable conductivity
• Nickel-plated clamp-type terminals for secure wire termination
• UL listed and CSA certified
• Limited lifetime warranty included

Compatibility

Designed for use with a 1.60-inch diameter wall plate. Suitable as an OEM-style or replacement locking receptacle in standard single-gang electrical box installations rated for 30-amp service.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker panel and verify the absence of voltage before beginning work. Clamp-type terminals accept conductor terminations per the marked wire range on the device. Do not exceed the 30-amp circuit rating.
