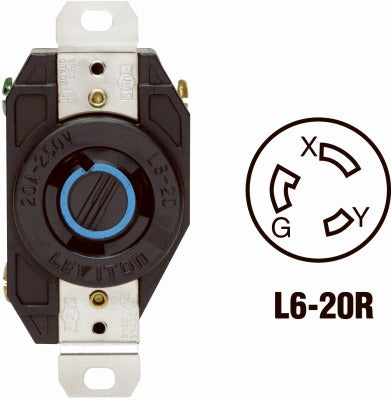

Leviton Mfg Co 065-02320-000 Locking Outlet 20A

Product Description

The LEVITON MFG CO 065-02320-000 is an industrial specification grade single locking flush outlet rated for 20 amps. Built with a nickel-plated brass strap, brass ground contacts, and brass line contacts, it is designed for demanding commercial and industrial electrical installations. The locking mechanism secures the plug connection to prevent accidental disconnection under load. It accepts both polarized and non-polarized plugs. This outlet is UL listed and CSA approved, meeting the standards required for professional electrical work in the United States and Canada. Licensed electricians install this device as part of branch circuit wiring in facilities where secure plug retention is critical.

This outlet is suited for industrial facilities, commercial buildings, and heavy-duty electrical environments where standard receptacles are not adequate. The specification grade construction makes it appropriate for use in manufacturing floors, mechanical rooms, data centers, and similar locations where outlet integrity and durability under continuous use are required. It is compatible with a 1.60 inch diameter wall plate for finish installation.

Key Features

• 20-amp locking flush outlet for industrial and commercial branch circuit applications
• Nickel-plated brass strap provides durable, corrosion-resistant mounting support
• Brass ground and line contacts for reliable electrical connection
• Accepts both polarized and non-polarized locking plugs
• UL listed and CSA approved for use in the US and Canada
• Limited lifetime warranty

Compatibility

Designed for use with a 1.60 inch diameter wall plate. Suitable as a specification grade single locking flush outlet replacement in 20-amp branch circuit applications.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify the circuit is dead with a voltage tester before beginning work. Ensure the wall plate used matches the 1.60 inch diameter requirement. Do not exceed the 20-amp rating of this device.
