Leviton Mfg Co 014-09726-00C Porcelain Lampholder 660W 125V

Product Description

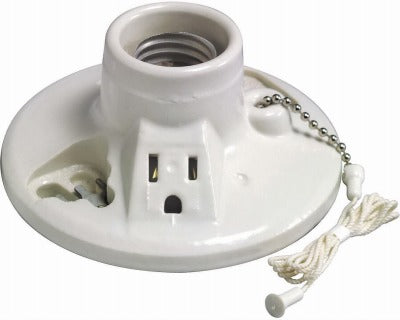

The LEVITON MFG CO 014-09726-00C is a porcelain lampholder with an integrated pull chain and grounding outlet, designed for residential and light commercial wiring applications. The lampholder is rated at 660 watts and 125 volts, while the 3-wire grounding outlet is rated at 15 amps and 125 volts. A removable interior allows the electrician to complete wiring without fully removing the fixture from the box. The unit ships with mounting screws and a short pull chain attached to a 3-foot braided cord with a belled end. The 4.5-inch outside diameter fits a standard 3.25-inch or 4-inch outlet box.

This lampholder is suited for utility spaces, garages, basements, storage rooms, attics, and other areas where a simple screw-base lamp socket with switched control and a convenience outlet is needed. The 3-wire grounding outlet with two screw terminals provides a code-compliant outlet position directly at the fixture. Licensed electricians and experienced maintenance technicians typically handle installation in new construction and retrofit applications.

Key Features

• Porcelain construction for heat resistance at the lamp socket
• Integrated pull chain with 3-foot braided cord and belled end for convenient switching
• Built-in 3-wire grounding outlet rated 15 amps at 125 volts with two screw terminals
• Removable interior allows wiring in place without removing the fixture body
• Fits 3.25-inch or 4-inch outlet boxes with 4.5-inch outside diameter
• UL listed for safety compliance

Compatibility

Designed as an OEM-style replacement or new-installation lampholder for standard 3.25-inch and 4-inch outlet boxes in residential and light commercial electrical systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Always shut off the circuit breaker and verify the circuit is de-energized with a non-contact voltage tester before beginning work. The removable interior allows screw-terminal wiring while the base remains mounted to the outlet box. Confirm box fill calculations comply with NEC requirements when adding this device to an existing box.
