Leviton M8300-ILG Lev-Lok 20-Amp Duplex Receptacle

Product Description

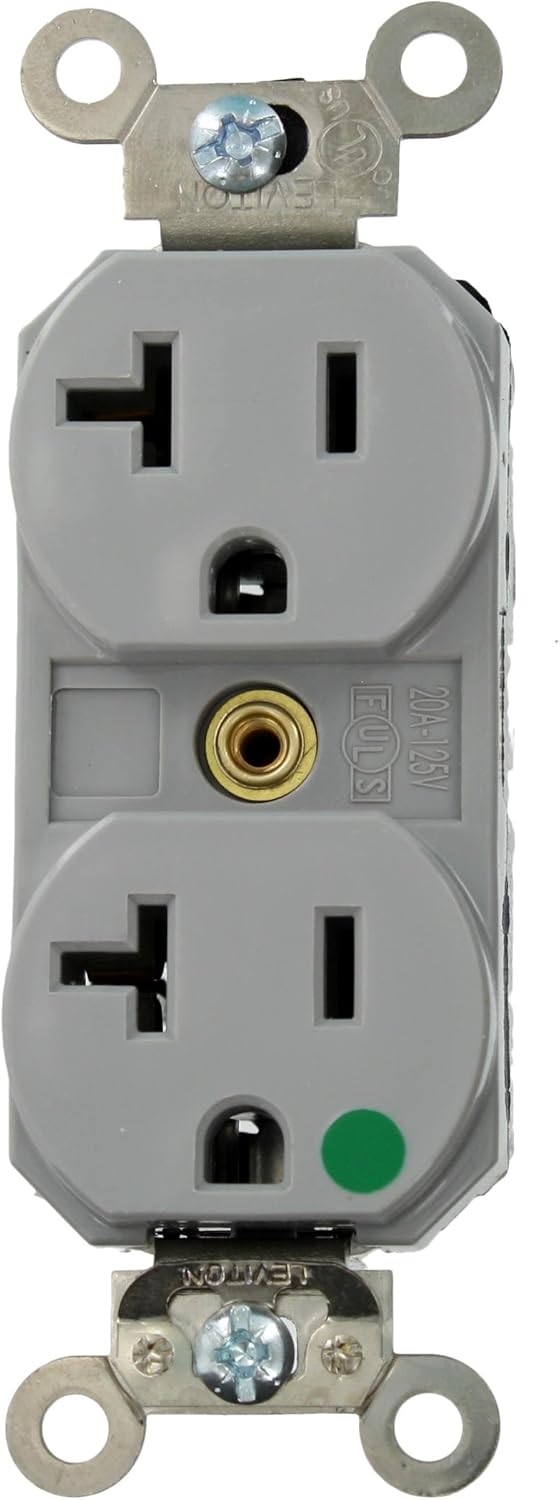

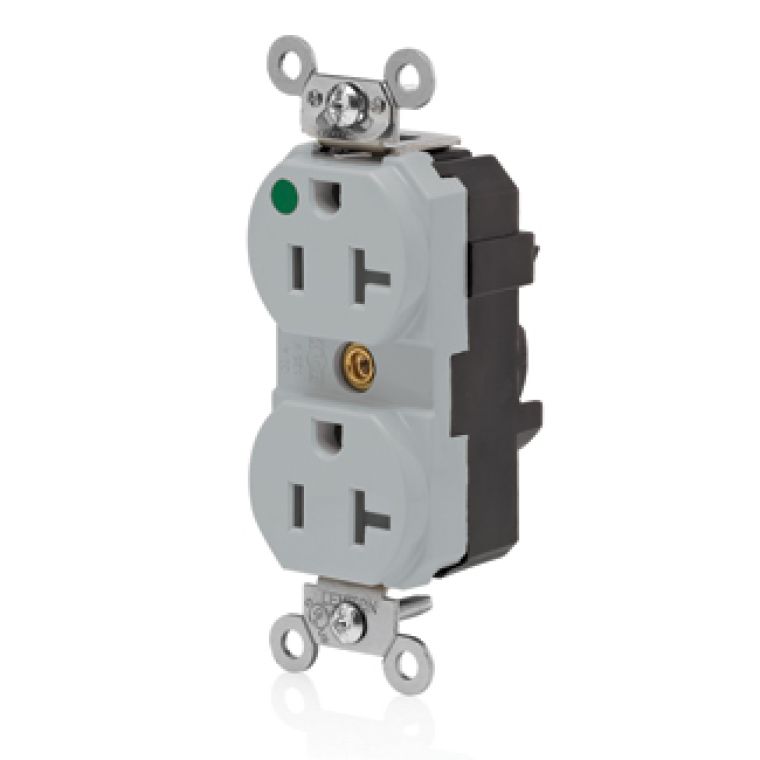

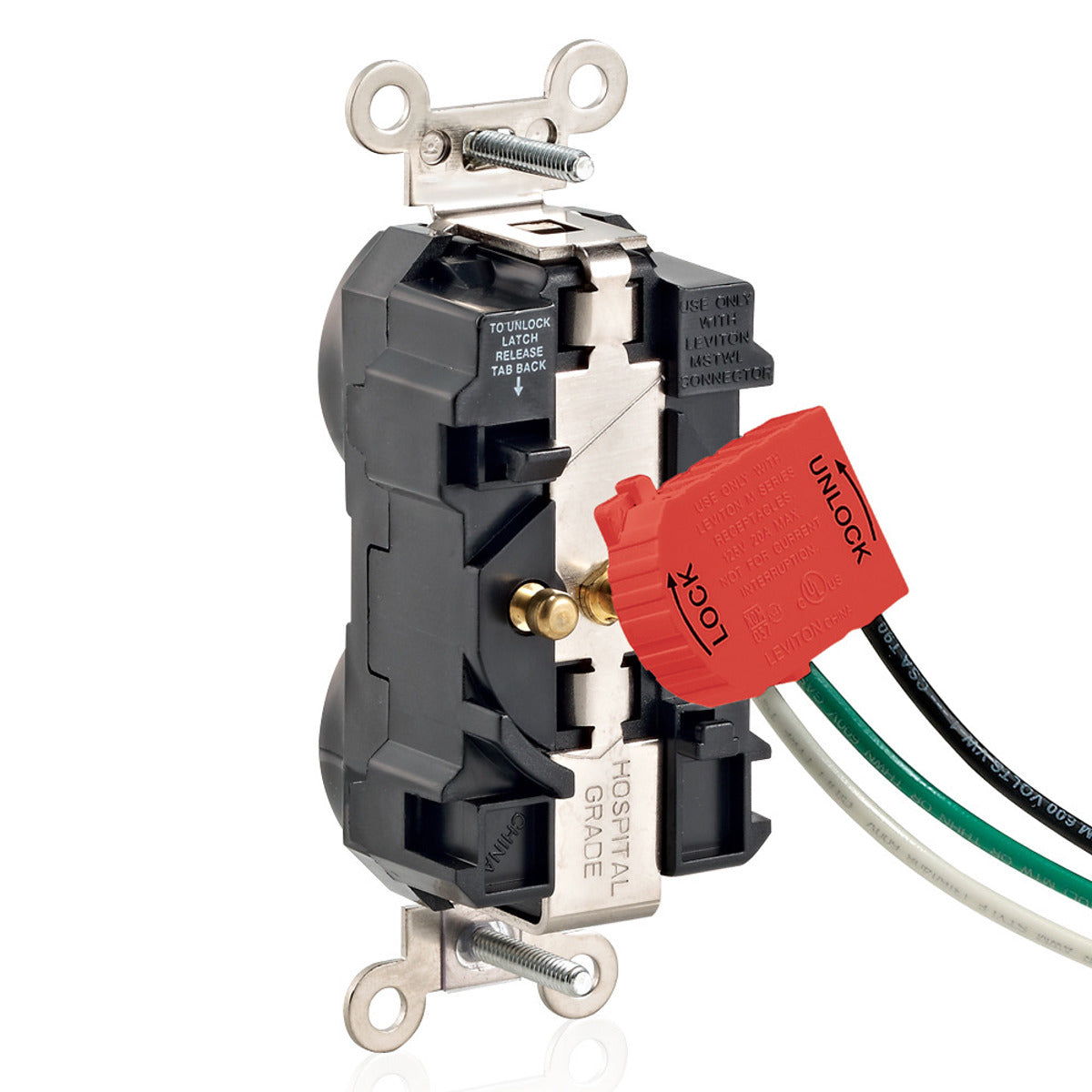

The Leviton M8300-ILG Lev-Lok duplex receptacle is a 20-Amp, 125V, straight blade, hospital grade, isolated ground, modular wiring device. Constructed with impact resistant thermoplastic nylon cover and body. It features an illuminated face and modular terminal connection. Designed for commercial applications. Mating Lev-Lok wiring module required for use.

• Illuminated Face
• Straight Blade
• Hospital Grade
• Isolated Ground

Product Highlights

Leviton M8300-ILG is ideal for fast and easy installation. It ensures a safe, reliable connection.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: M8300-ILG
• Country of Origin: Mexico

Technical Specifications

• Voltage: 125 Volts
• Material: Brass
• Certification: NEMA
• Compatible Devices: All
• Included Components: M8300-ILG
• Catalog Number: M8300-ILG
• Manufacturer: Leviton
• Brand: Leviton
• Sub Brand: Lev-Lok
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 20 A
• Application: Commercial
• Connection: Modular Terminal
• Mounting: Wall
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Phase: 1
• Standard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA Certified (File 152105);UL Listed 498 and Fed Spec WD496 (E13399);RoHS Compliant
• Item Type: Straight Blade;Duplex Outlet
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Temperature Rating: -40 to +60 DEG C
• Voltage Rating: 125 VAC
• Wire Size: 12.000000000000000 AWG
• Enclosure: NEMA WD-1/WD-6
• Grade: Hospital
• Horsepower: 1 hp
• Terminal Type: Modular
• Type: Extra Heavy Duty Illuminated Isolated Ground
• ADI Part Number: LV-M8300ILG
• Product Line: Lev-Lok
• Product Name: Lev-Lok Duplex Receptacle
• Product Type: Power Socket
• Current Rating: 20 A
