Leviton LTB02-1LZ W/I/LA TIMER 5KEY 15/

Product Description

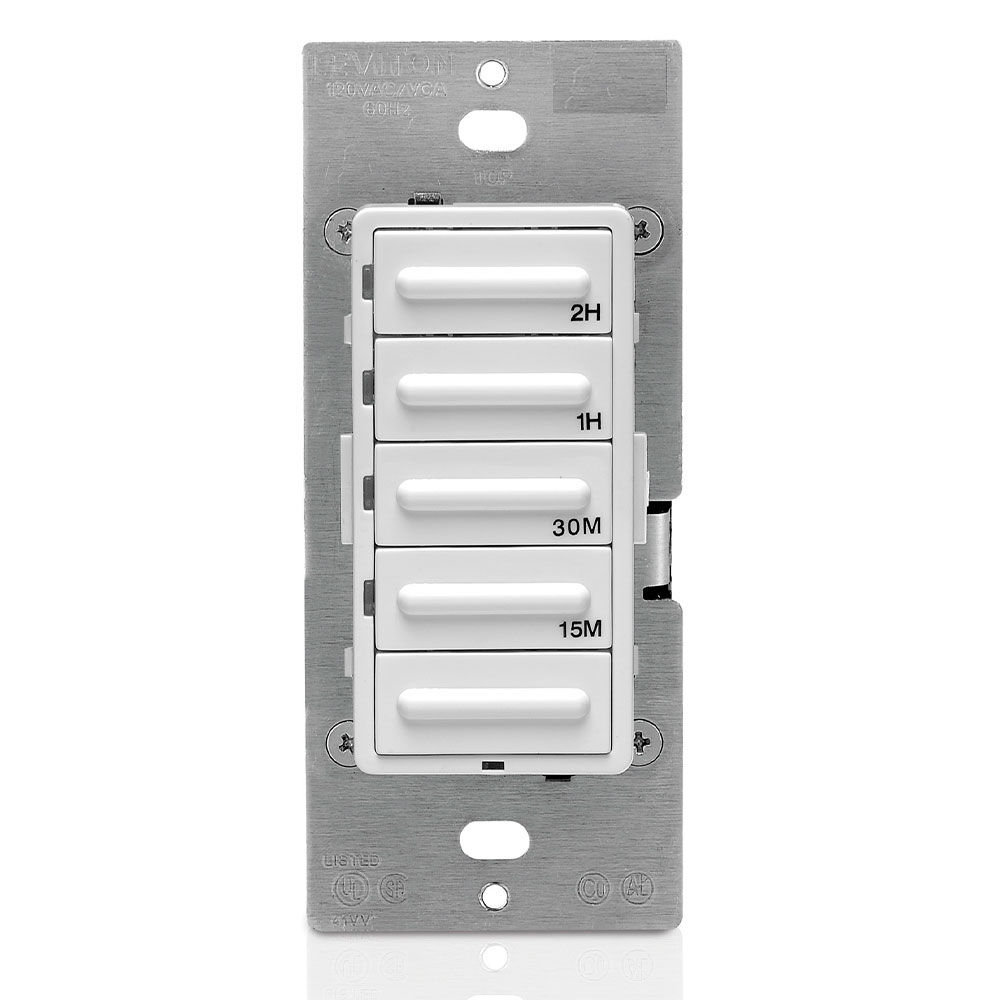

Leviton LTB02-1LZ is an electronic timer switch. It operates at one hundred twenty volts AC and supports various applications. This device is suitable for controlling lighting and motor loads in homes, offices, schools, and small commercial spaces. It features a countdown function with four preset options for timers set at fifteen minutes, thirty minutes, one hour, and two hours. The timer is designed for easy use and requires a neutral wire for installation.

• Compatible with incandescent, CFL, and LED lights.
• Single pole with three-way capability.
• Includes color change kits for customization.

Product Highlights

This timer provides accurate control of lighting and motor loads. Ideal for automating devices like heat lamps and attic fans. It simplifies operation with intuitive buttons and offers a convenient override feature.

Product Information

Standard Information

• Manufacturer: Leviton
• Catalog Number: LTB02-1LZ

Technical Specifications

• Voltage Rating: 120 volts
• Amperage Rating: 20 amps
• Wattage Rating: 1800 watts (incandescent)
• Dimensions: 4.13 inches H x 1.75 inches W x 1.4 inches D
• Operating Temperature: 0 to 40 degrees Celsius
• Type: Electronic, single pole, 3-way
