Leviton LR212-BDD Load Center MB Outdoor 20 Space 125A

Product Description

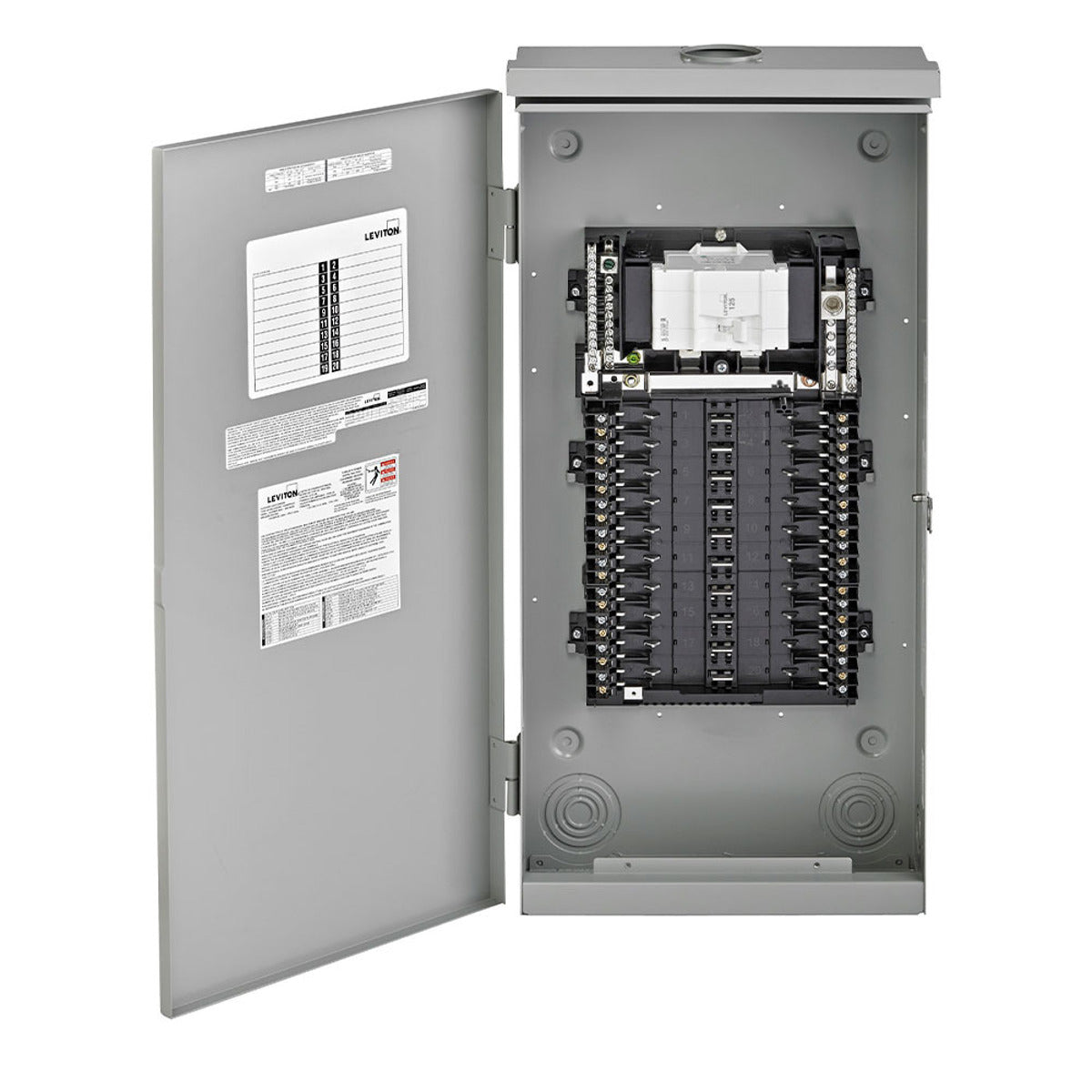

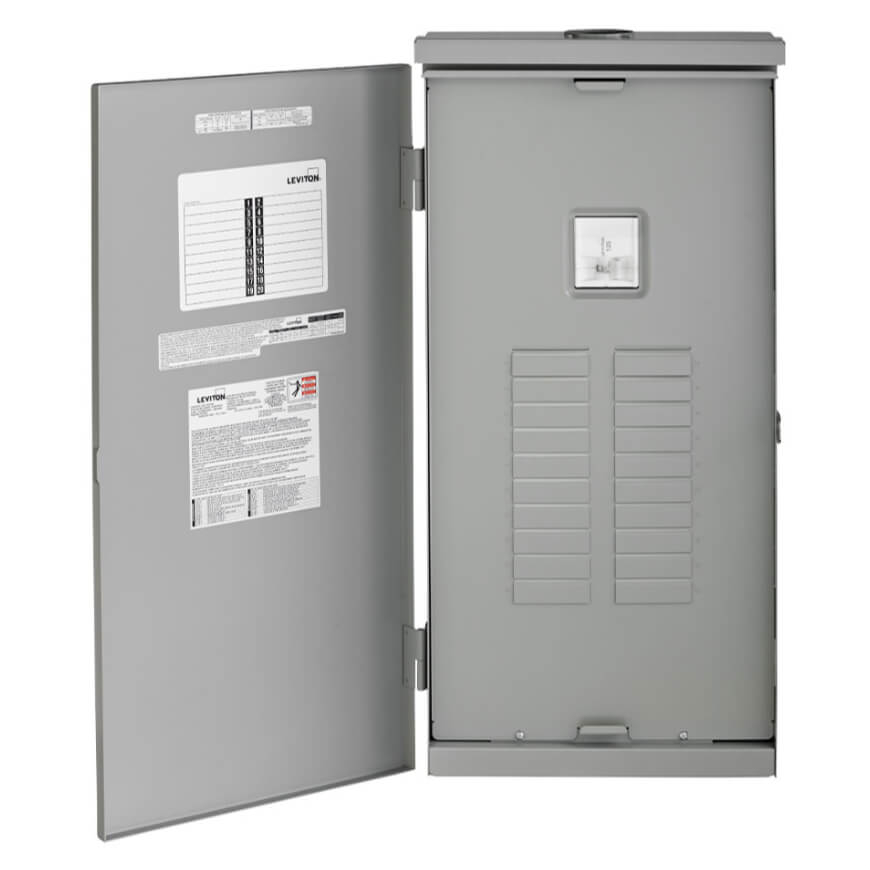

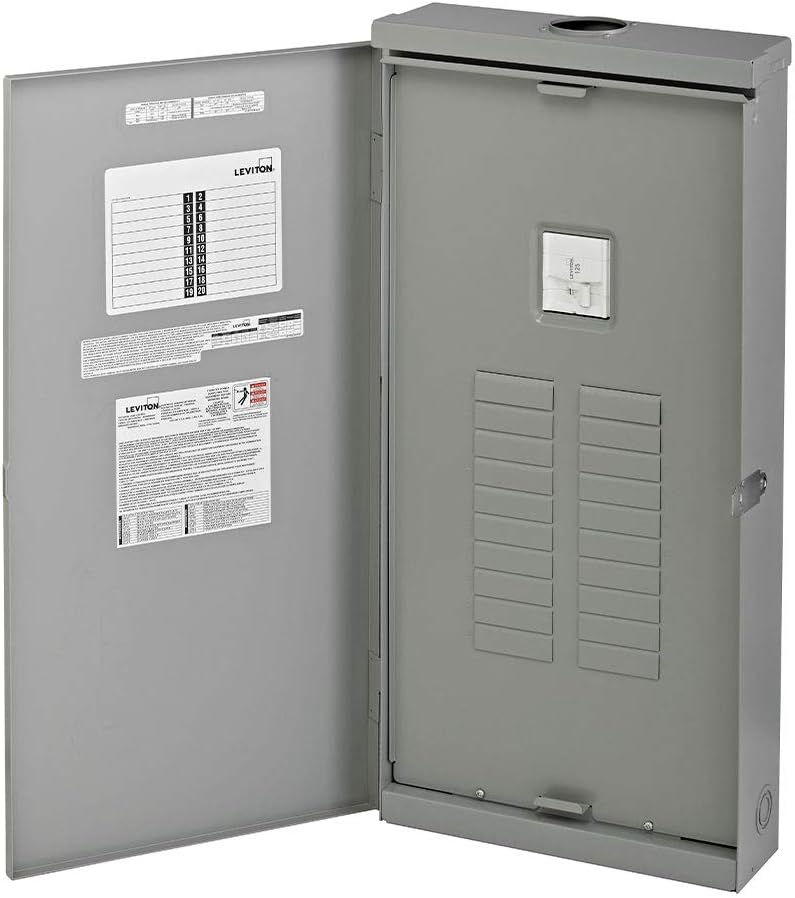

The LEVITON LR212-BDD is an outdoor load center with a 125A main circuit breaker factory installed and NEMA 3R rated. It features a revolutionary design that allows wiring at rough-in without circuit breakers. Designed for Leviton circuit breakers and includes enclosure and door only.

• Easy to wire at rough-in without circuit breakers.
• Equipped with tin plated copper bussing for superior conductivity.
• Features notches stamped into the enclosure for secure and neat wiring.

Product Highlights

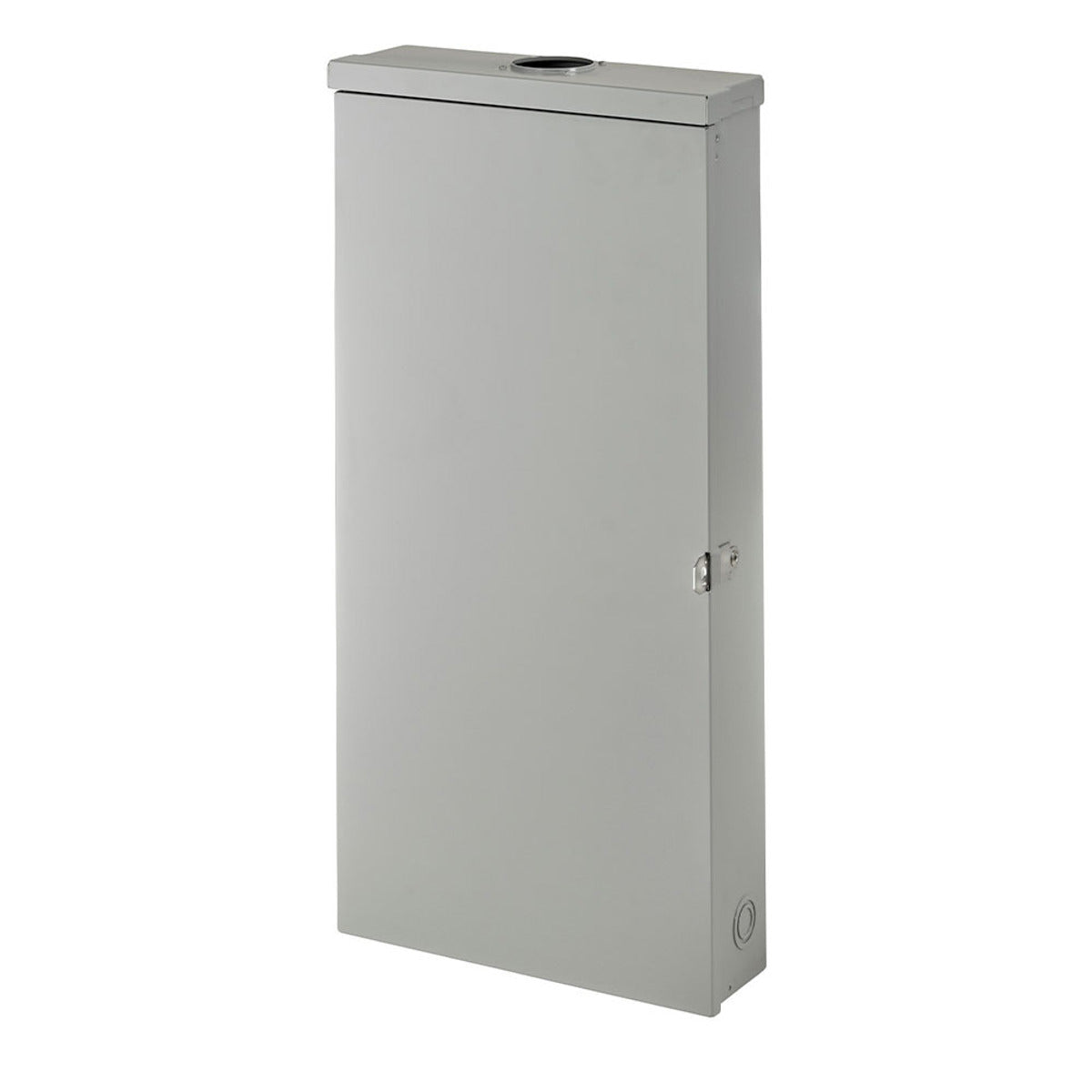

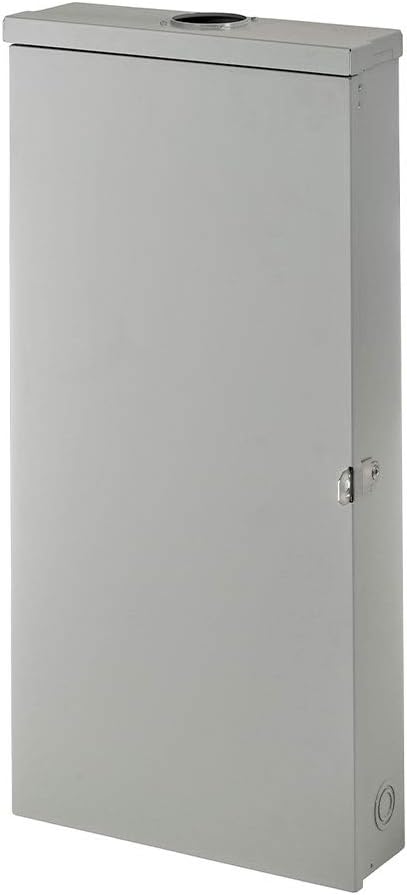

The Leviton LR212-BDD load center is designed to withstand the elements. It features a gray, weather-resistant enclosure.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: LR212-BDD
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: LR212-BDD
• Manufacturer: LEVITON
• Brand: Leviton
• Country of Origin: Mexico
• Made in USA: No
• UPC: 078477996430
• GTIN: 00078477996430
• Cross Reference Products: LP212-3B
• Amperage: 125 A
• Short Circuit Current Rating: 22 KA
• Spaces: 20
• Circuits: 20
• Type of Load Center: Main Breaker
• Voltage: 120/240V
• Busbar Material: Copper, Bright Tin-Plated
• Enclosure Material: Galvanized Steel, Gray Baked Enamel
• Ground Connection: 4 AWG - 2/0 AWG Cu/Al
• Supply Connections: 3 AWG - 300 MCM Cu/Al
• NEMA Enclosure Type: NEMA 3R Outdoor
• Busbar Rating: 225A
• UL 50: Yes
• UL 50E: Yes
• UL 67: Yes
• UL 869A: Yes
• Operating Temperature: -40 to 70
• Depth: 4.4"
• Height: 30"
• Width: 15"
• Input Voltage: 120V, 240V AC
