Leviton LP315-BPD Load Center with Main Breaker 150 Amp 30 Spaces NEMA 1

Product Description

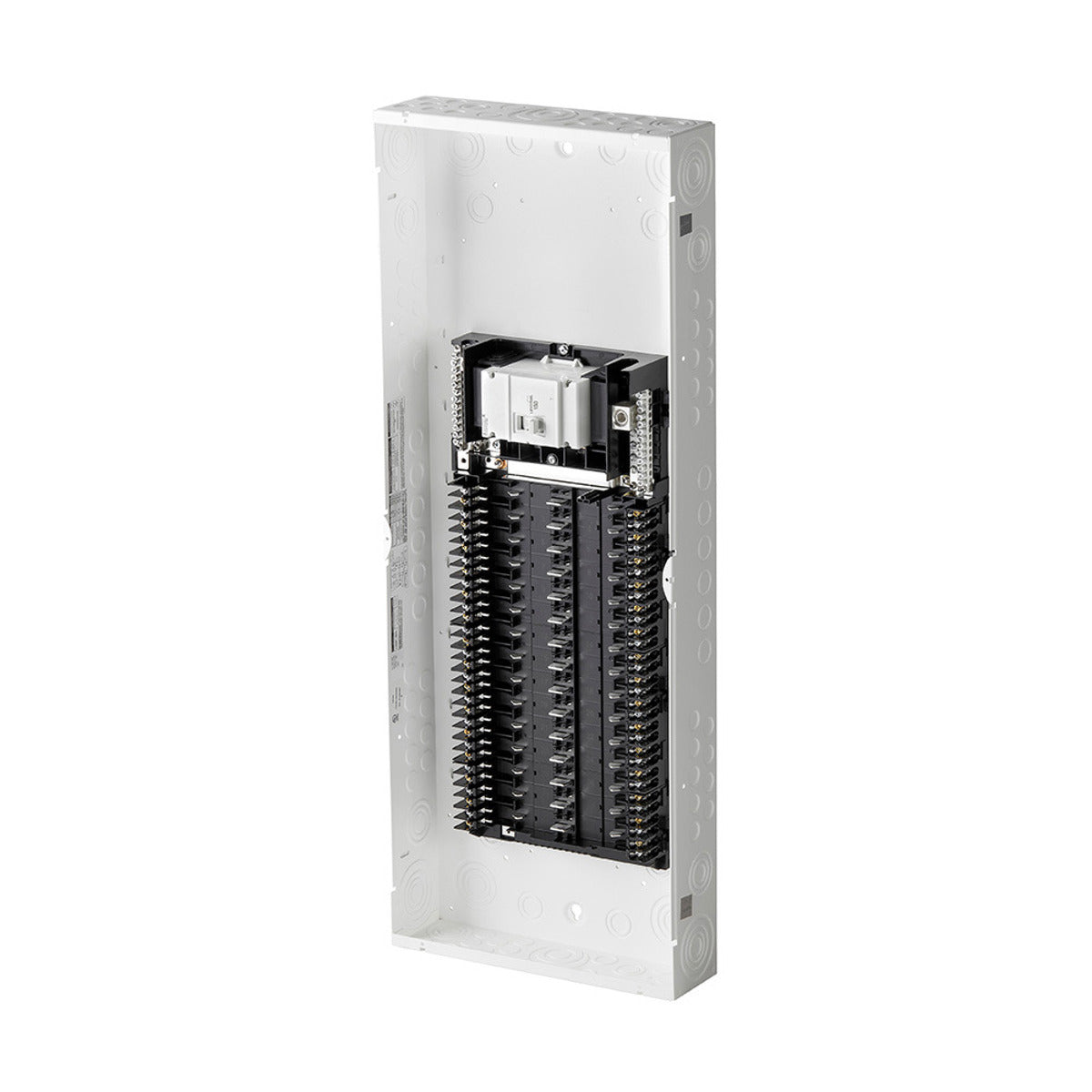

The Leviton Load Center with Main Breaker, model LP315-BPD, is designed for indoor use in electrical installations. It is rated for one-phase, three-wire systems with a voltage of one hundred twenty to two hundred forty volts at one hundred fifty amps. This load center has thirty spaces and features a NEMA 1 rating. The unit is suitable for installations where space is required for circuit breakers.

• Includes enclosure and interior; door sold separately.
• Easy installation without circuit breakers at rough-in.
• Standard tin-plated copper busbar for improved conductivity.

Product Highlights

This load center is efficient and allows for organized wiring with notches for cable ties. It operates effectively in temperatures ranging from minus forty degrees Celsius to seventy degrees Celsius.

Product Information

Standard Information

• Brand: Leviton
• MPN: LP315-BPD

Technical Specifications

• Amperage Rating: 150 Amp
• Voltage Rating: 120/240 VAC
• Number of Spaces: 30
• Dimensions: 37.15 inches x 14.25 inches x 4 inches
• Bus Rating: 225 Amp
• Enclosure Type: NEMA 1 Indoor
• Interrupt Rating: 22 kA
• Ground Connection: 4 AWG - 2/0 AWG Cu/Al
• Supply Connections: 3 AWG - 300 MCM Cu/Al
