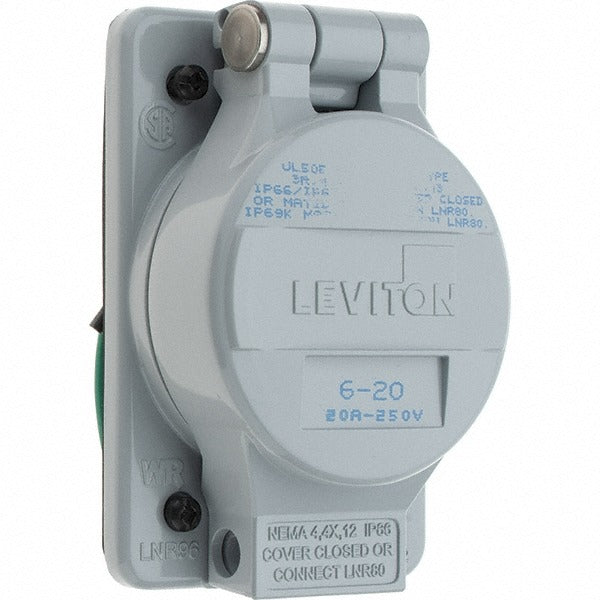

Leviton LNR96-4 Single Receptacle Nema 6-20R 20A 250V

Product Description

The LEVITON LNR96-4 is an industrial-grade straight blade single receptacle rated at 20 amps and 250 volts AC, configured to NEMA 6-20R specifications. It is a single-phase, 2-pole, 3-wire device built for demanding commercial and industrial electrical installations. The body is constructed from aluminum, providing durability in environments where standard residential-grade devices would underperform. Back wiring is the designated connection method. At 0.85 pounds, this receptacle is compact and straightforward to work into standard outlet boxes and industrial enclosures. Licensed electricians handling equipment circuits, machinery outlets, and heavy-duty power distribution are the primary installers of this device.

The LNR96-4 is suited for use in industrial facilities, commercial buildings, machine shops, and similar environments where 250V circuits power tools, compressors, or other 20-amp equipment loads. The NEMA 6-20R configuration accepts standard 6-20P plugs. The non-flanged single-receptacle format is appropriate for recessed box mounting where a clean, single-outlet installation is required. Its gray finish and industrial rating make it a practical choice wherever a code-compliant, heavy-duty outlet is needed on a 250V branch circuit.

Key Features

• NEMA 6-20R configuration — accepts 6-20P straight blade plugs on 250V circuits
• 20-amp, 250-volt AC rating for heavy-duty equipment and machinery outlet applications
• Industrial grade — built to perform in commercial and industrial environments
• Aluminum body construction for strength and longevity
• Single-phase, 2-pole, 3-wire design with back wiring method
• Meets ANSI C-73, CSA C22.2 No. 42, NEMA WD-6, and UL 498 standards

Compatibility

Designed as an OEM-style replacement or new-installation single receptacle for 250V, 20-amp branch circuits requiring a NEMA 6-20R outlet configuration.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the branch circuit at the panel before wiring the receptacle. Verify the circuit is rated for 250V, 20 amps before connecting. Back wiring should follow the terminal markings on the device; do not exceed the conductor gauge range listed on the device body.
