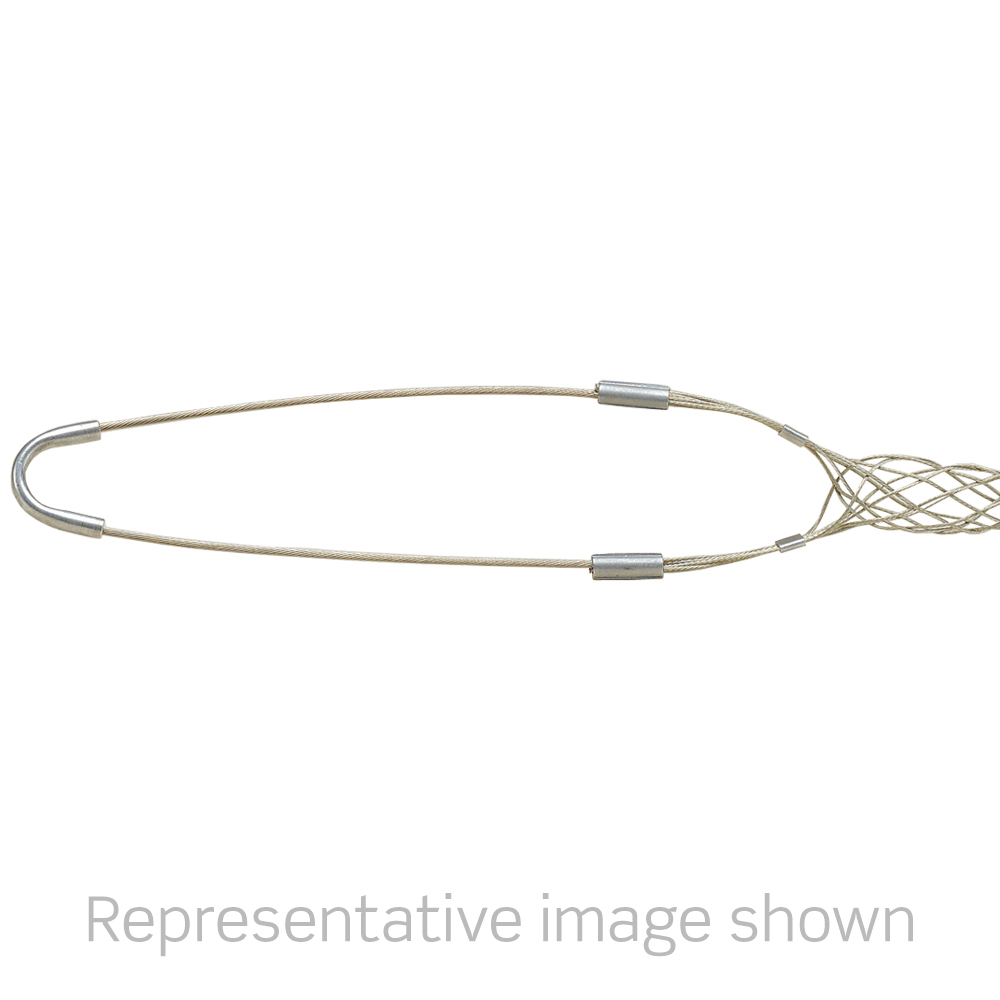

Leviton L9503-100 Cable Support Grip 0.75-1.00 in

Product Description

The LEVITON L9503-100 is a single-eye, single-weave cable support grip made from stainless steel, designed to secure and support cables during installation or in long-term suspended applications. It accommodates cables with an outer diameter ranging from 0.75 inches to 1.00 inches and carries a rated breakload of 1,040 pounds. The mesh construction conforms to the cable jacket without pinching or crushing, distributing load evenly along the grip length. Electricians and cable installation crews use this type of support grip in both commercial and industrial environments where cable strain relief and vertical or angular support are required.

This support grip is suited for use with power cables, communication cables, or conduit runs within the 0.75-inch to 1.00-inch outer diameter range. The closed-mesh, single-weave design provides a secure hold during pulls and in permanent overhead or vertical installations. The stainless steel construction makes it appropriate for indoor environments where corrosion resistance is a priority, such as mechanical rooms, plenum spaces, and areas with elevated humidity. Licensed electricians typically specify this grip when NEC guidelines require cable support at defined intervals.

Key Features

• Stainless steel single-weave mesh for corrosion resistance and long-term durability
• Cable diameter range of 0.75 inches to 1.00 inches for a secure, conforming fit
• Rated breakload of 1,040 pounds for reliable load-bearing performance
• Eye length of 8.0 inches for straightforward attachment to support hardware
• Mesh length of 13.50 inches provides extended grip surface and even load distribution
• Single-eye termination for connection to hooks, bolts, or messenger wire

Compatibility

Designed as an OEM-style support grip for power, communication, or specialty cables with an outer diameter between 0.75 inches and 1.00 inches in commercial and industrial cable management applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for cable support and strain relief. De-energize all circuits before working on or near supported cables. Slide the mesh over the cable end and work it back onto the cable body to ensure full engagement before applying load. Do not exceed the rated breakload of 1,040 pounds, and inspect the grip for deformation or corrosion at regular service intervals.

Technical Specifications

• Cable Diameter Range: 0.75 inches to 1.00 inches
• Breakload Rating: 1,040 pounds
• Eye Length: 8.0 inches
• Mesh Length: 13.50 inches
• Material: Stainless Steel
• Weave Type: Single Weave
• Eye Configuration: Single Eye Closed
• UPC: 078477213056

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: L9503-100
