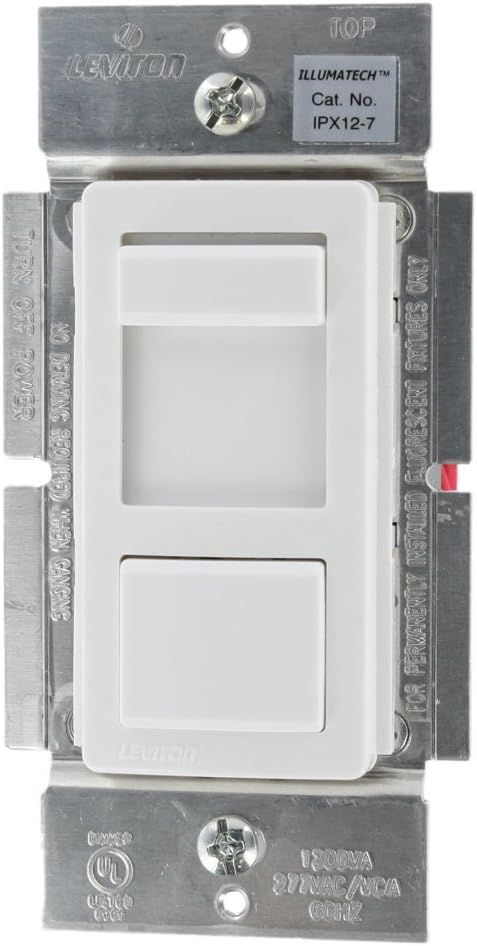

Leviton IPX12-70Z IllumaTech Dimmer Switch for Fluorescent Mark 10 Ballasts

Product Description

The Leviton IPX12-70Z IllumaTech Dimmer Switch is designed for fluorescent Mark 10 ballasts. This electro-mechanical dimmer switch provides both single-pole and 3-way control. It features a pre-set slide control for fine adjustment of light levels and a push-button switch for easy on/off operation. Compatible with Decora wallplates.

• Fluid slide movement allows fine adjustment of light level with minimal effort
• Easy to use pushbutton switch with conveniently positioned green LED locator
• Provides 1-pole and multi-location lighting control when used with a 3-way switch

Product Highlights

The Leviton IllumaTech Dimmer offers precise lighting control for commercial and residential applications. It is compatible with Mark 10 Powerline ballasts and Decora devices.

Product Information

Standard Information

• Brand: Leviton
• Manufacturer Part Number: IPX12-70Z
• Country of Origin: China

Technical Specifications

• Manufacturer Part Number: IPX12-70Z
• Circuit Type: 3-way
• Actuator Type: Push Button
• Specification Met: CSA
• Batteries Required?: No
• Included Components: IPX12-70Z
• Application: Commercial Applications
• Frequency Rating: 60 Hz
• Includes: IPKIT Series White, Ivory, Light Almond Color Kit
• Lamp Type: Fluorescent
• Mounting Type: Wall
• Number of Poles: 1
• Power Rating: 1200 VA
• Standards/Approvals: UL File No. E31373|CSA File No. LR3413|UL94 V-2 Flammability Rating
• Temperature Rating: 32 to 130 deg F
• Type: 3-Way Electro-Mechanical
• Voltage Rating: 277 VAC
• Standard: UL Listed (E-31373); CSA Certified (LR-3413)
• Operating Temperature: +32 to +130 DEG F
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Item [Specifications]: Lighting Dimmer
• Preset [Specifications]: Preset
• Load Type [Specifications]: Electronic Mark 10 Powerline Fluorescent
• Protection [Specifications]: Radio/TV Filter
• Style Name [Specifications]: IllumaTech
• Load Rating [Specifications]: 1200VA
• Switch Type [Specifications]: Single-Pole & 3-Way
• Ordering Notes [Specifications]: Incl White, Ivory and Light Almond Color Kit
• Color Change Kit [Specifications]: IPKIT Series
• Lighting Technology [Specifications]: Fluorescent
• Max. Capacity @ 277VAC [Specifications]: 1200VA (Fluorescent)
• Ballast Type - Light Dimming [Specifications]: Powerline Ballasts
• Description/Special Features [Specifications]: Built-in Radio/TV Interference Filter, Fluid Slide Movement Allows Fine Adjustment of Light Level With Minimal Effort
• Standards and Certifications [Specifications]: UL/CSA/NOM
• Item - Motion Sensing and Dimming [Specifications]: Dimmer
• Country of Origin (subject to change) [Specifications]: China
• Installation Location - Motion Sensor [Specifications]: Wall Switch Box
• Switch Style - Motion Sensing and Dimming [Specifications]: Slide
• Operating Voltage - Motion Sensing and Dimming [Specifications]: 277V AC
• Style [Specifications]: Decora Preset Slide
• Lamp Type [Specifications]: Fluorescent Mark 10(TM) Ballast
• Max. Capacity [Specifications]: 1200 VA
• Wall Box Size [Specifications]: Single Gang
• Control Method [Specifications]: 2-Wire
• Bulb Technology [Specifications]: Fluorescent
• Number of Gangs [Specifications]: 1
• Voltage (V): 1200VA-277VAC
