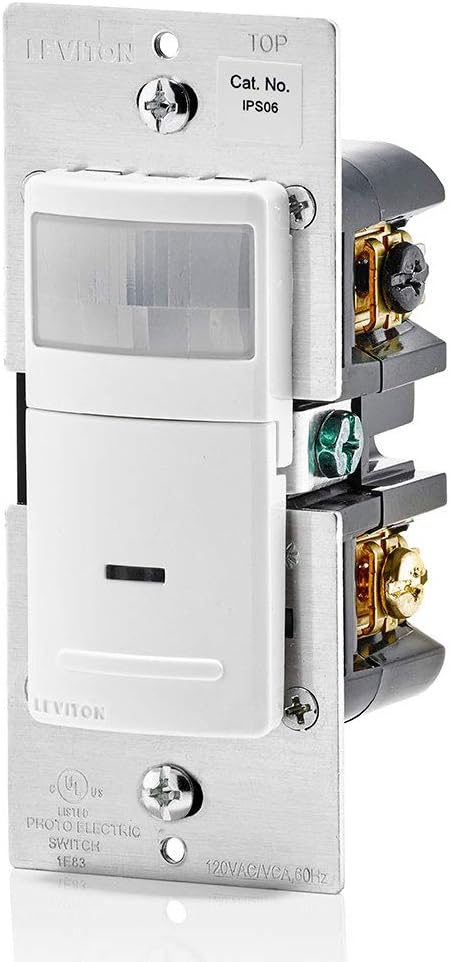

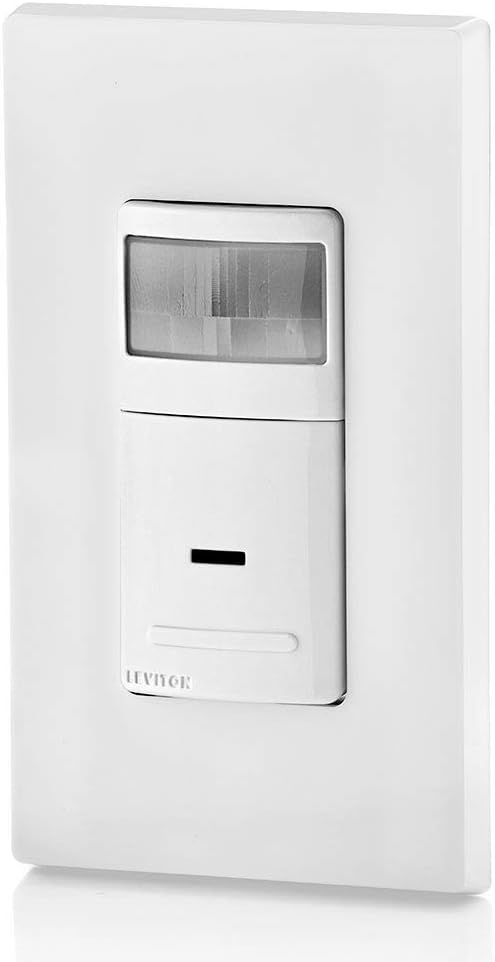

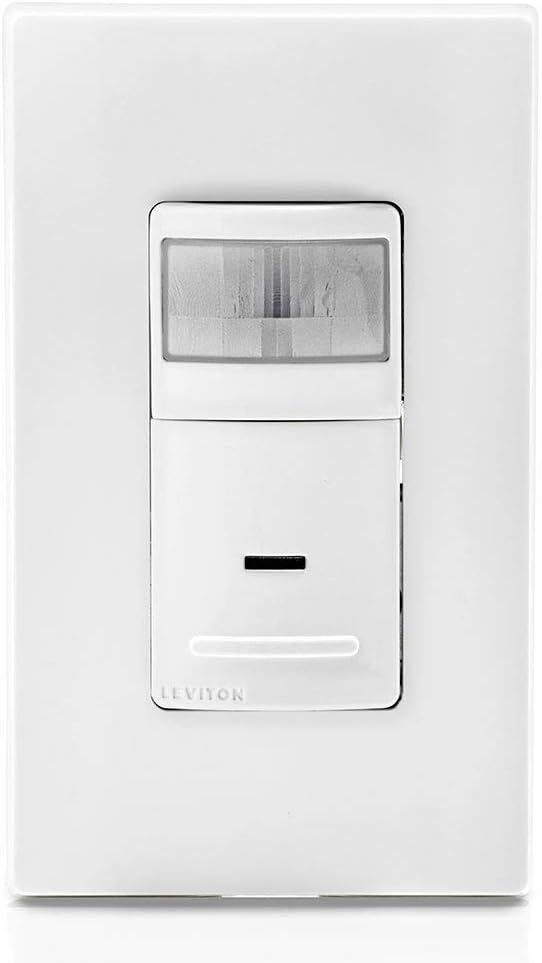

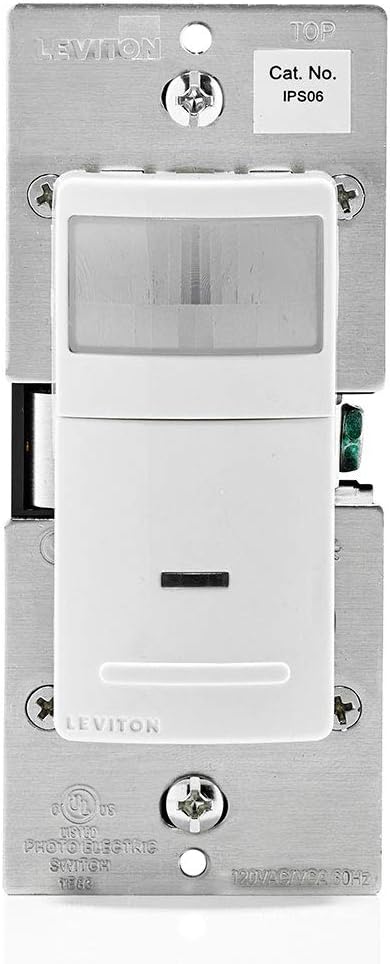

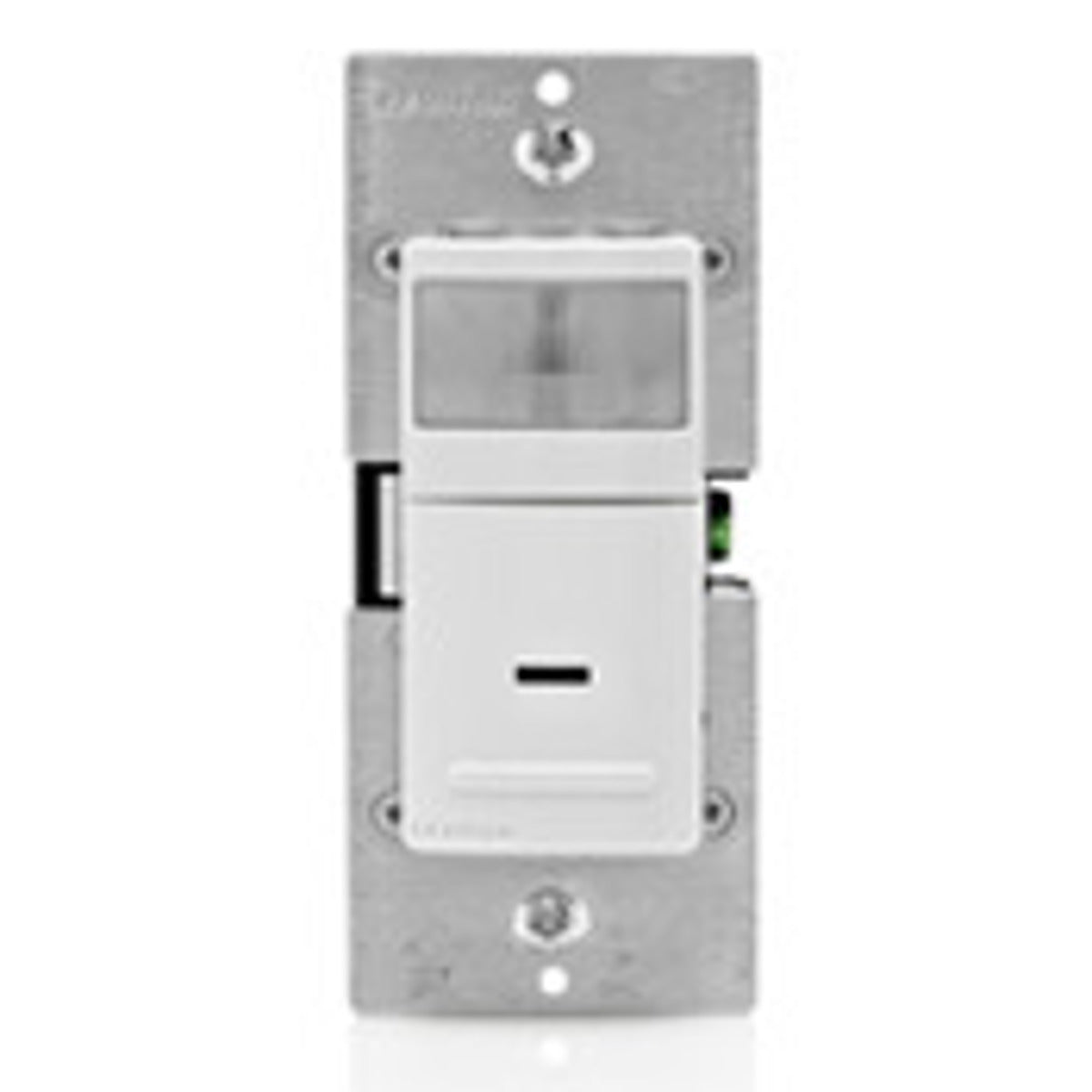

Leviton IPS06-1LW Decora Motion Sensor In-Wall Switch, Auto-On, 5A, Single Pole or 3-Way

Product Description

The LEVITON IPS06-1LW Decora Motion Sensor In-Wall Switch, Auto-On, 5A, is suitable for single pole or 3-way applications. This in-wall switch automatically turns lights on and off based on motion detection. It helps prevent lights from being left on when a room is vacant.

• Decora Motion Sensor In-Wall Switch
• Auto-On
• 5A

Product Highlights

The Leviton Decora motion sensor in-wall switch provides automated lighting control and energy savings.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: IPS06-1LW
• Country of Origin: China

Technical Specifications

• Color: White
• Voltage: 120 VAC
• Wattage: 600
• Switch Type: 3-way
• Power Source: Corded Electric
• Mounting Type: Wall Switch
• Number of Handles: 1
• Batteries Included?: No
• Batteries Required?: No
• Catalog Number: IPS06-1LW
• Manufacturer: Leviton
• Brand: Leviton
• Sub Brand: Decora
• Country of Origin: China
• Made in USA: No
• Application: Commercial
• Frequency Rating: 60 HZ
• Special Features: Single Pole and Three Way, Incandescent
• Standard: UL Listed;CA Title 20 Code Compliance
• Supply Voltage: 120 VAC
• UPC: 078477590508
• GTIN: 00078477590508
• Item Type: Relay Sensor
• Environmental Conditions: Operating Temperature Range (0 to +40 DEG C);Humidity (20% to 90% Non-Condensing)
• Connection Type: Screw
• Control Output: Automatic On
• Coverage: 900 sq-ft
• Lamp Type: Halogen/Incandescent/LED
• Response Frequency: 60 Hz
• Sensor Type: Passive Infrared
• Temperature Rating: 0 to 40 deg C
• Time Delay: 30 s to 30 min
• Type: 1-Pole 3-Way Relay
• Viewing Angle: 180 deg
• Auto-ON/Auto-OFF: Yes
• California Title 24: No
• Grade: Residential
• Ground Connection: No
• LED Color: Green
• Load Rating: 150W LED, 600W Incandescent
• Neutral: No
• Pole: 1
• Standards and Certifications: UL, FCC
• Style Name: Decora
• Switch: Relay
• Number of Poles: 1
• Sensing Angle: 180
• Sensing Range: 900
