Leviton GFTA2-I SmartlockPro Self-Test Slim GFCI 20 Amp (Slim) TRSGF20V

Brand: LEVITON
SKU: GFTA2-I
Availability: In Stock

Ships same day if ordered by 12 pm
$78.62
$78.62
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

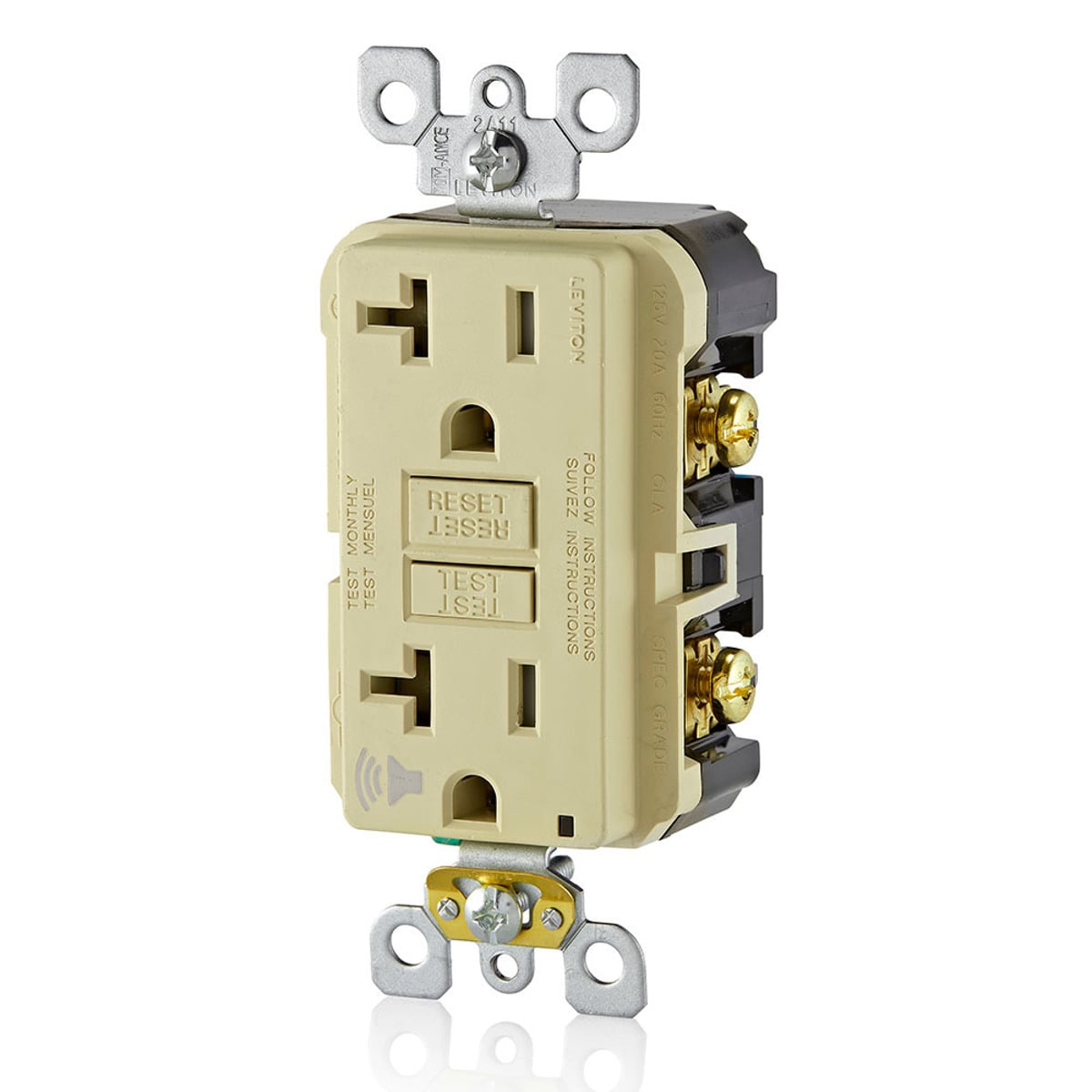

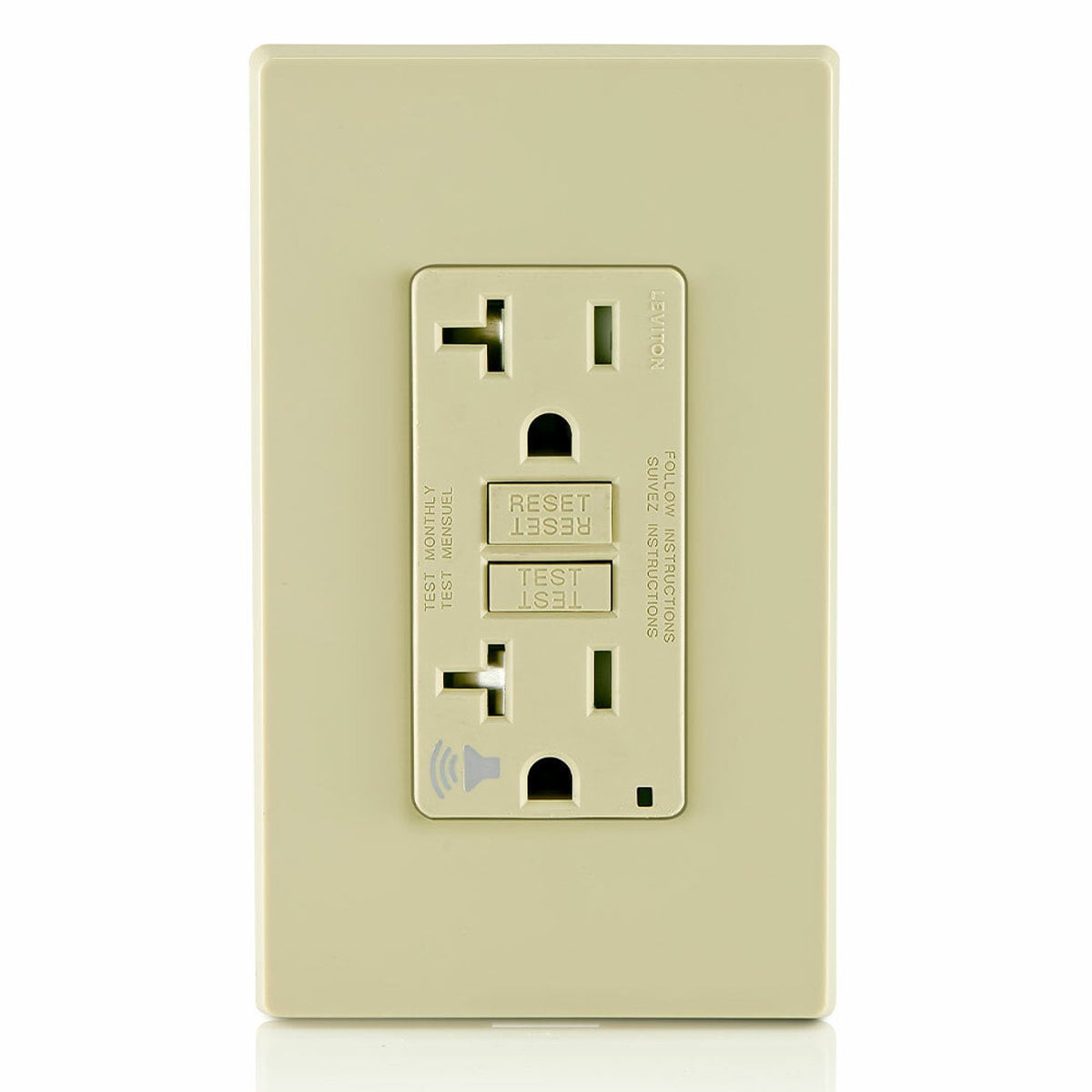

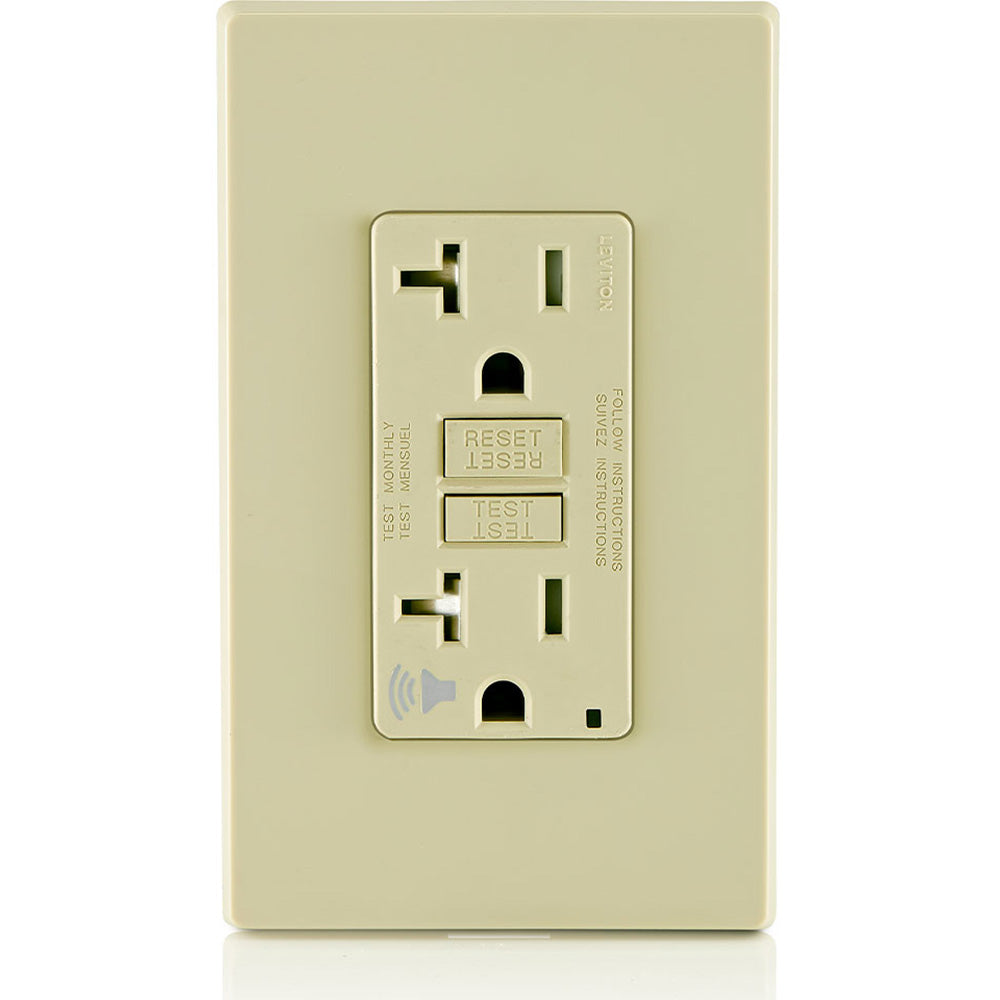

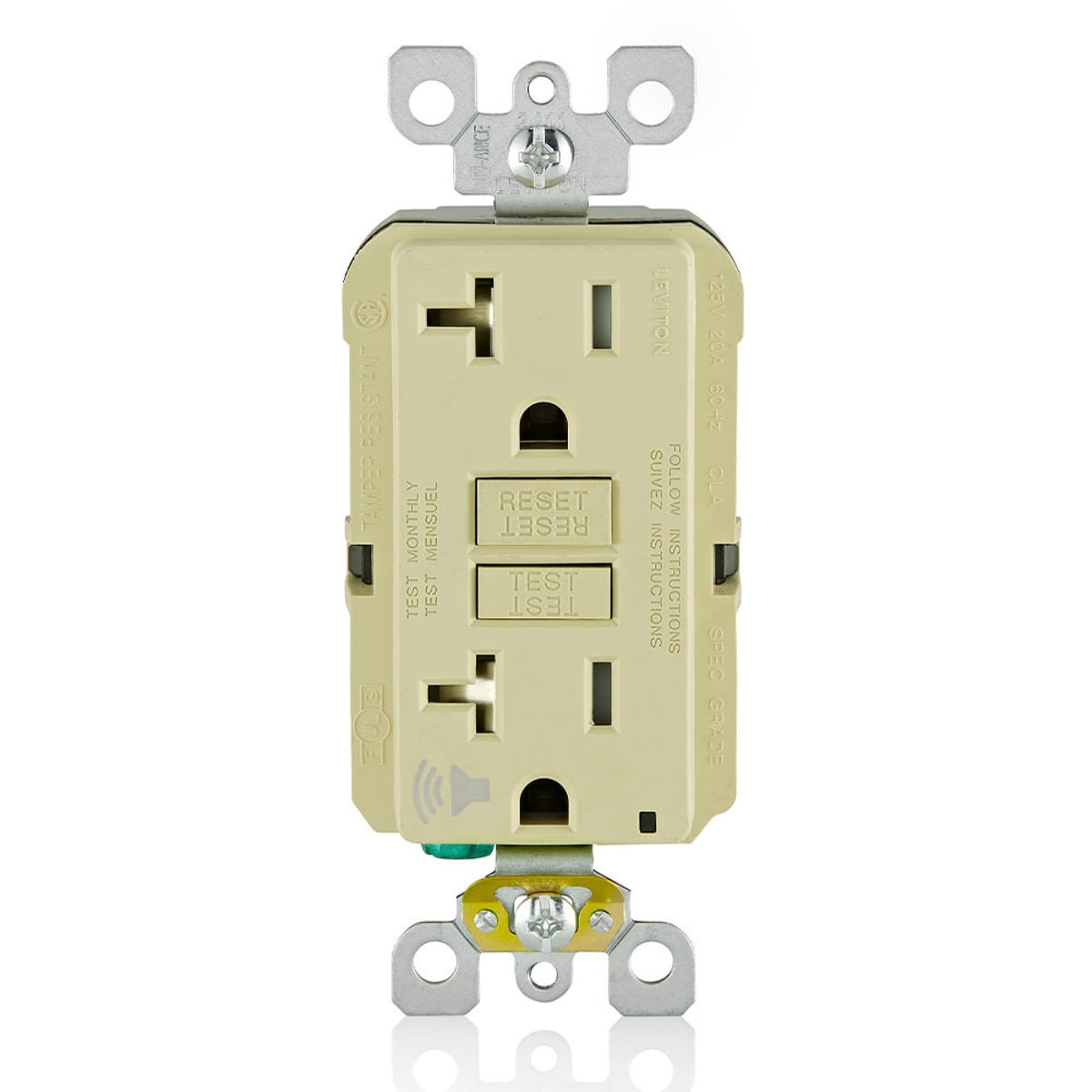

The Leviton GFTA2-I is a SmartlockPro self-test slim GFCI receptacle that provides continuous ground-fault protection and an audible trip alert. The device is rated 20 A, 125 VAC and features automatic self-testing on initial power-up and periodic monitoring. It supports back and side wiring, includes a wallplate and self-grounding clip, and is designed for installation in standard or shallow electrical boxes.

  • SmartlockPro automatic self-test with initial test within 3 seconds and adaptive periodic monitoring
  • Audible trip alert and LED status indicator; patented lockout prevents reset if device is damaged
  • 20 A, 125 VAC NEMA 5-20R duplex, tamper-resistant with back and side wire terminations; includes wallplate and mounting hardware

Product Highlights

SmartlockPro self-test GFCI with audible trip alert, LED status indicator, tamper-resistant duplex, 20 A 125 VAC, slim profile for shallow boxes

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: GFTA2-I
  • Country of Origin: China
Technical Specifications
Brand
Leviton
Manufacturer Part Number
GFTA2-I
Model Name
SmartlockPro Self-Test Slim GFCI
Device Type
GFCI receptacle (duplex)
NEMA Configuration
NEMA 5-20R
Amperage Rating
20 Amp
Voltage Rating
125 VAC
Trip Level
5 milliamp (Class A) (+/- 1 mA)
Horsepower Rating
1 hp
Tamper Resistant
Yes
Self-Test
Automatic SmartlockPro self-test (initial within 3 seconds; periodic adaptive monitoring)
Audible Alarm
Yes
Indicator
LED status indicator for power/protection and line/load reversal
Material - Body
Polycarbonate
Material - Face
Thermoplastic
Mounting
Flush / reduced depth for shallow boxes
Termination
Back and side wire
Number of Poles
2
Number of Wires
3
Number of Outlets
2 (duplex)
Includes
Nylon wallplate/faceplate, screws, self-grounding clip
Dimensions
4.21 x 1.69 x 1.40 inches
Weight
0.35 lb
Operating Temperature
-35 to 66 deg C
Short Circuit Current Rating
10 kA
Dielectric Strength
1250 VAC
Contact Material
Brass (triple-wipe / silver alloy contacts noted in some references)
Conductor Size Accommodation
14-10 AWG
Wire Accommodation / Torque Range
14-18 lb-in torque; #10 - #14 AWG copper noted
Grounding
Self-grounding clip included
Standards and Certifications
UL 498; UL 943; CSA C22.2 No. 42; CSA C22.2 No. 144; Federal Spec WC-596; ANSI C73; NEMA WD-6; NOM
Country of Origin
China
Short Description
Slim profile, tamper-resistant, audible self-test GFCI with LED status
