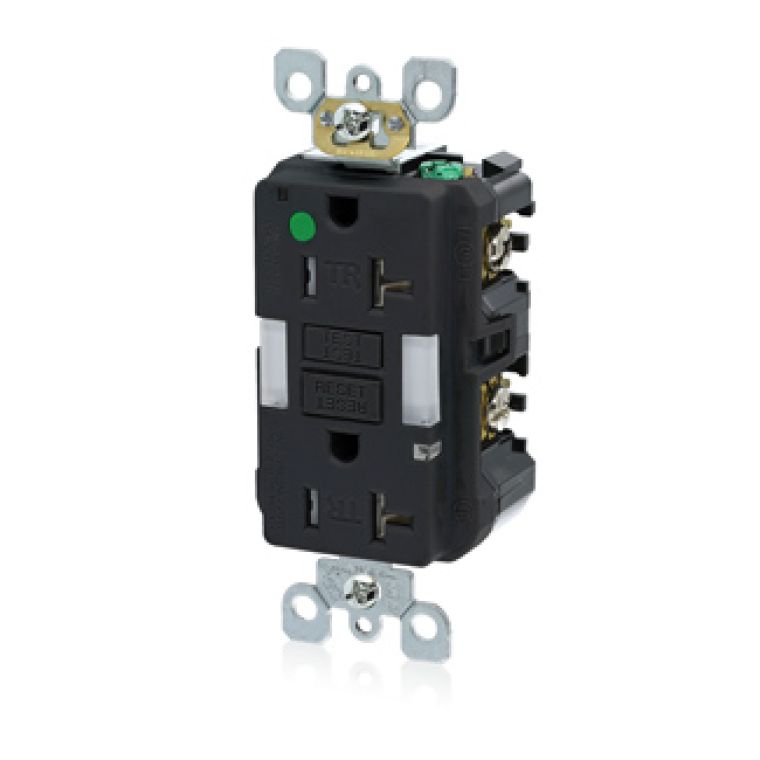

Leviton GFNL2-HGE SmartlockPro GFCI Receptacle/Outlet 20 Amp

Product Description

The LEVITON GFNL2-HGE is a SmartlockPro Self-Test GFCI Duplex Receptacle Outlet. This heavy-duty, hospital-grade outlet is tamper-resistant and features power indication. Rated for 20 Amp and 125 Volt, it can be wired from the back or side and is self-grounding. It meets the latest UL standard for auto-monitoring and has a patented reset lockout mechanism.

• Tamper-Resistant
• Power Indication
• Heavy-Duty Hospital Grade

Product Highlights

The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: GFNL2-HGE
• Country of Origin: China

Technical Specifications

• UPC: 078477723609
• Nema: 5-20R
• At Rated Voltage: 1 HP
• Amperage: 20 A
• Grounding: Self-Grounding
• Pole: 2
• Short Circuit Current Rating: 10kA
• Voltage: 125 VAC
• Wire: 3
• Flammability: Rated V-0 per UL 94
• Operating Temperature: -35C to +66C
• Body Material: Polycarbonate
• Face Material: PBT
• Ground Clips: Brass
• Grounding Screw: Plated Steel
• Line Contacts: Brass
• Shutter Mechanism: Delrin Acetal
• Strap Material: Galvanized Steel
• Terminal Clamp: Brass
• Terminal Screws: Plated Steel
• Product ID: Ratings are permenantly marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-10 AWG solid or stranded
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back or Side Wire
• Trip Level: Class A, 5mA plus or minus 1mA
• Brand: SmartlockPro
• Device Type: Duplex Receptacle Outlet
• Feature: Tamper-Resistant,Power Indication
• Function: GFCI
• Grade: Heavy-Duty Hospital Grade
• NEMA: WD-1 & WD-6
• Tamper Resistant: Yes
• ANSI: C-73
• Applicable Standards: UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
• Certification/Listing: UL, CSA, NOM-ANCE
• Compatible Devices: All
• Material: Polycarbonate (PC)
• Power Plug Type: Type A - 2 pin (North American)
• Connector Type: Nema 5-20r
• Smart Home Compatibility: Not Smart Home Compatible
• Total Power Outlets: 2
• Specification Met: UL
• Manufacturer Part Number: GFNL2-HGE
