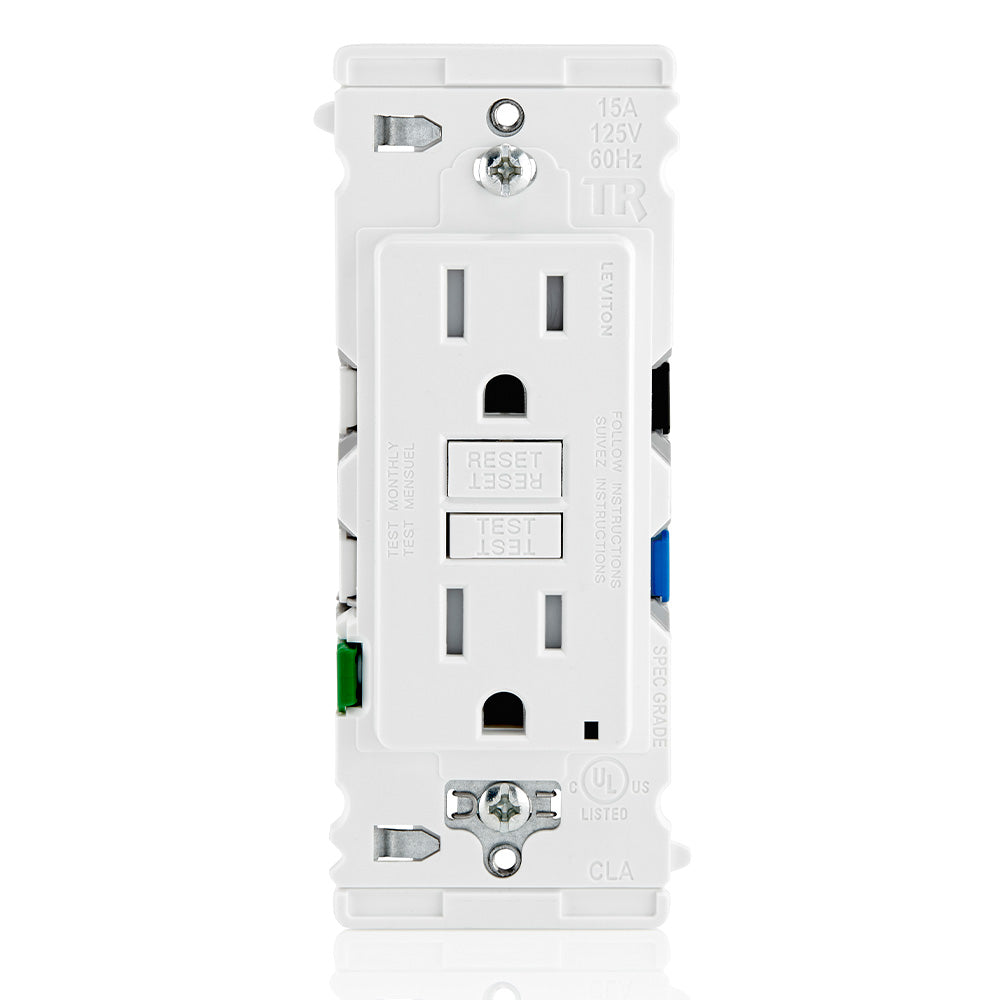

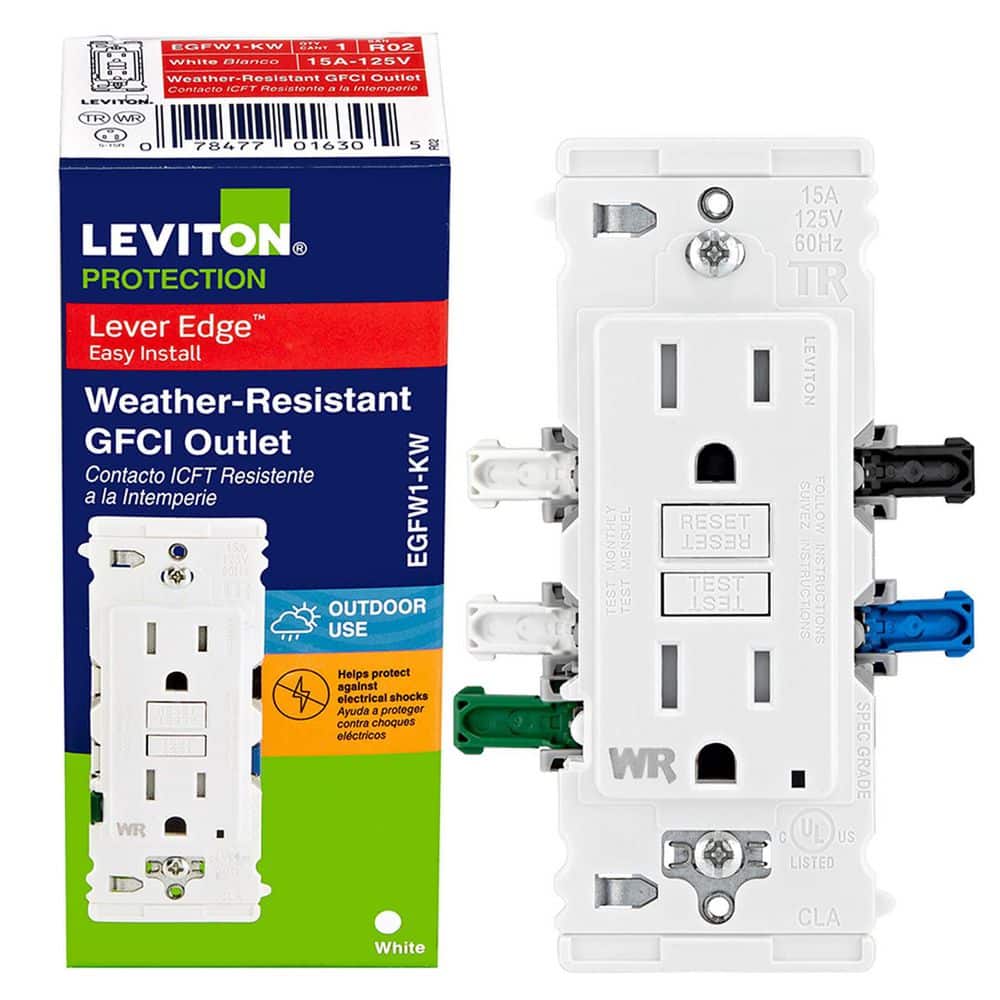

Leviton EGFW1-KW Lever Edge 15 Amp Self-Test Tamper-Resistant Weather-Resistant GFCI (1-Pack)

Product Description

Leviton EGFW1-KW is a Lever Edge 15 Amp GFCI duplex receptacle that provides continuous ground-fault protection with automatic self-test on initial power-up and ongoing auto-monitoring. It uses color-coded lever terminals for push-click termination of 12 and 14 AWG copper conductors, includes an LED status indicator and Reset Lockout, and is tamper-resistant and weather-resistant with a thermoplastic body, brass contacts, and galvanized steel mounting strap.

• Automatic self-test (tests within 5 seconds on initial power-up) with continuous auto-monitoring and LED status indicator; Reset Lockout prevents reset if device cannot respond
• Lever Edge color-coded lever terminals for push-click termination compatible with 12 and 14 AWG solid or stranded copper wire; reduces LINE/LOAD reversal risk
• Tamper-resistant and weather-resistant construction with thermoplastic body and face, brass line contacts and terminal clamps, and galvanized steel mounting strap; NEMA 5-15R

Product Highlights

15 A, 125 VAC Lever Edge GFCI duplex receptacle with self-test, Reset Lockout, lever termination for 12/14 AWG, tamper- and weather-resistant design, and UL/CSA certifications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: EGFW1-KW
• Country of Origin: China

Technical Specifications

• Brand: Leviton
• MPN: EGFW1-KW
• Device Type: GFCI duplex receptacle
• Series: EGFW1
• Rated Current: 15 A
• Voltage: 125 VAC
• Frequency: 60 Hz
• Number of Poles: 1
• Wires: 3
• NEMA Configuration: NEMA 5-15R
• Short Circuit Current Rating: 10 kA
• Trip Level: Class A
• Dielectric Voltage: 1250 VAC
• Grounding: Self-Grounding
• Self-Grounding Clip: Yes
• Operating Temperature: Maximum continuous 66�C; Minimum -35�C (without impact)
• Temperature Rise: Max 30�C
• Body Material: Thermoplastic
• Face Material: Thermoplastic
• Line Contacts: Brass
• Terminal Clamps: Brass
• Mounting Strap: Galvanized steel with thermoplastic cover
• Termination: Color-coded Lever Edge terminals (push-click)
• Wire Accommodation: #12-#14 AWG copper, solid or stranded
• Tamper Resistant: Yes
• Weather Resistant: Yes
• Status Indicator: LED for power/protection
• Self-Test: Initial self-test within 5 seconds and continuous auto-monitoring
• Reset Lockout: Yes
• Standards and Certifications: cULus, CSA C22.2 No. 144, CSA C22.2 No. 42, UL 943, UL 498
• Grade: Residential/Commercial specification grade
• Dimensions: H 4.55 in x W 1.77 in x D 1.24 in
• Product Features Summary: Indicator light, self-test, tamper resistant, weather resistant
