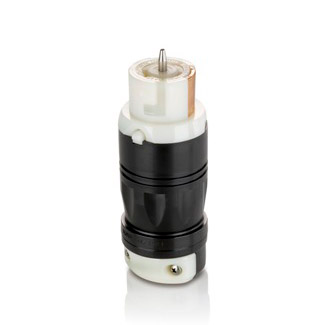

Leviton CS8464C 50A 480VAC Connector Grounding

Product Description

Leviton CS8464C is a 50 Amp, 480 Volt AC locking connector designed for industrial applications. Built with a rugged nylon body, it resists impacts, chemicals, and harsh conditions. This connector features solid one-piece construction for enhanced conductivity and durability. It includes a unique cord clamp that accepts various cord sizes while protecting the cord from damage. The ergonomic design provides ease of handling.

• Rated for 50 Amps and 480 Volts AC.
• Solid brass contacts for superior conductivity.
• Lifetime warranty for reliability.

Product Highlights

This locking connector is suitable for industrial environments. It holds a CSA, NOM certification, and is UL listed. The compact design allows for easy installation and provides safety in electrical connections.

Product Information

Standard Information

• Brand: Leviton
• Type: Locking Connector

Technical Specifications

• Amperage: 50 Amp
• Voltage Rating: 480 Volt
• Material: Nylon
• Color: Black and White
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 degrees Celsius
• Cord Diameter: 0.68 to 1.125 inches
