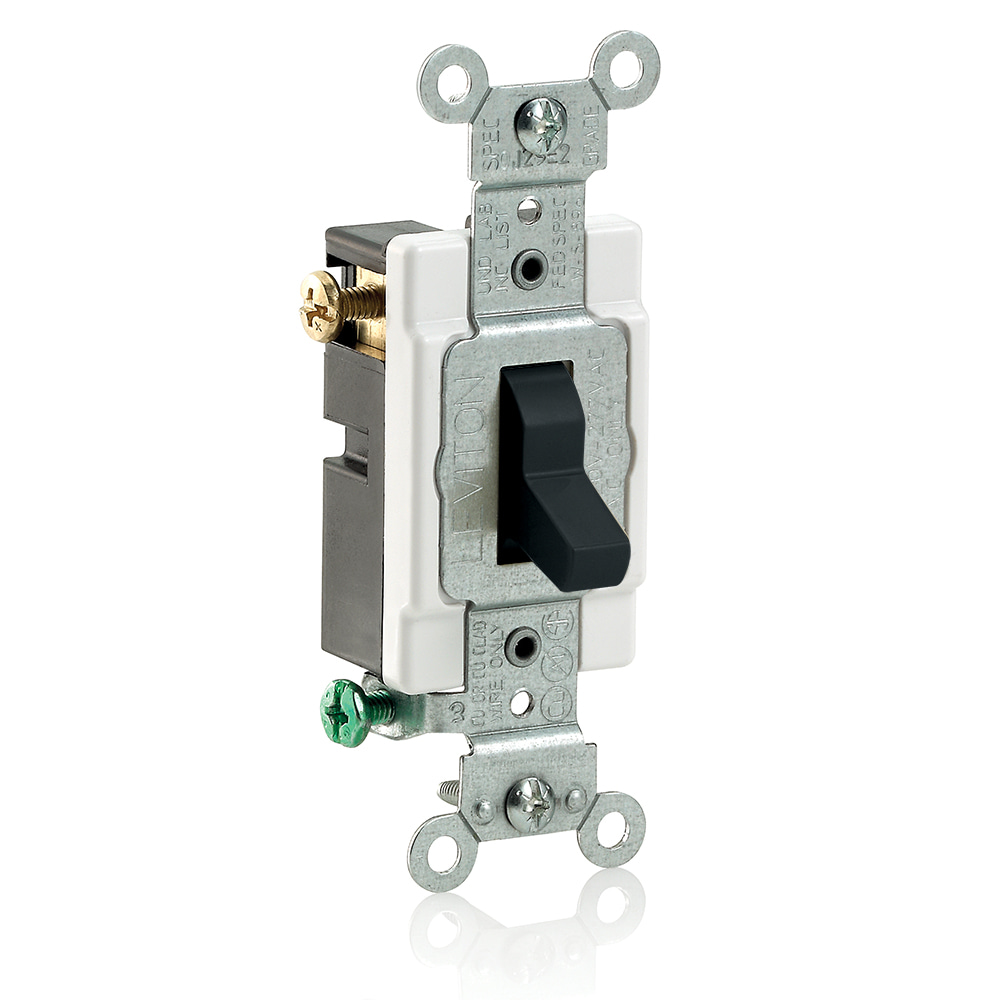

Leviton CS320-2E Toggle Switch 20 Amp 3-Way Replacement MPN

Product Description

The Leviton CS320-2E is a 120/277 VAC, 20 Amp, 3-way toggle switch. This switch is grounded and made from thermoplastic, designed for commercial applications. It features an easy-to-use toggle actuator and is suitable for various settings, including government buildings and schools.

• Rated 20 Amps, operates on 120/277 Volts
• Durable thermoplastic construction for long-lasting use
• Suitable for commercial grade installations

Product Highlights

This switch is built for reliability in high traffic areas and is compatible with a range of wiring options.

Product Information

Standard Information

• Catalog Number: CS320-2E
• Brand: Leviton

Technical Specifications

• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 A
• Horsepower Rating: 1 hp at 120 VAC, 2 hp at 240 to 277 VAC
• Actuator Type: Toggle
• Mounting Type: Box
• Enclosure Type: NEMA WD-1/WD-6
• Operating Temperature: -40 to +120 °C
• Dimensions: 46 inches H x 1.31 inches W x 0.92 inches D
