Product Description

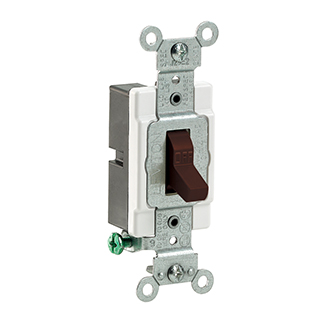

The Leviton CS120-2 is a toggle switch designed for reliable use in various commercial settings. This switch operates at 120/277 volts and supports a maximum load of twenty amps. It is suitable for numerous applications including municipal buildings, hospitals, and schools.
- Ideal for use in commercial environments
- Thermoplastic body and a robust brown finish
- Easy installation with side wire termination
Product Highlights
This toggle switch is built to meet high-performance standards for commercial use. It is designed for grounding and features a thermoplastic body to withstand impact and environmental conditions.
Product Information
Standard Information
-
Brand: Leviton
-
MPN: CS120-2
Technical Specifications
-
Voltage Rating: 120/277 VAC
-
Amperage Rating: 20 A
-
Horsepower Rating: 1 hp at 120 VAC, 2 hp at 240 VAC
-
Configuration: Single Pole (SP)
-
Mounting Type: Box
-
Material: Thermoplastic body
-
Enclosure Rating: NEMA WD-1/WD-6
-
Operating Temperature: -40 to +120 degrees Celsius
