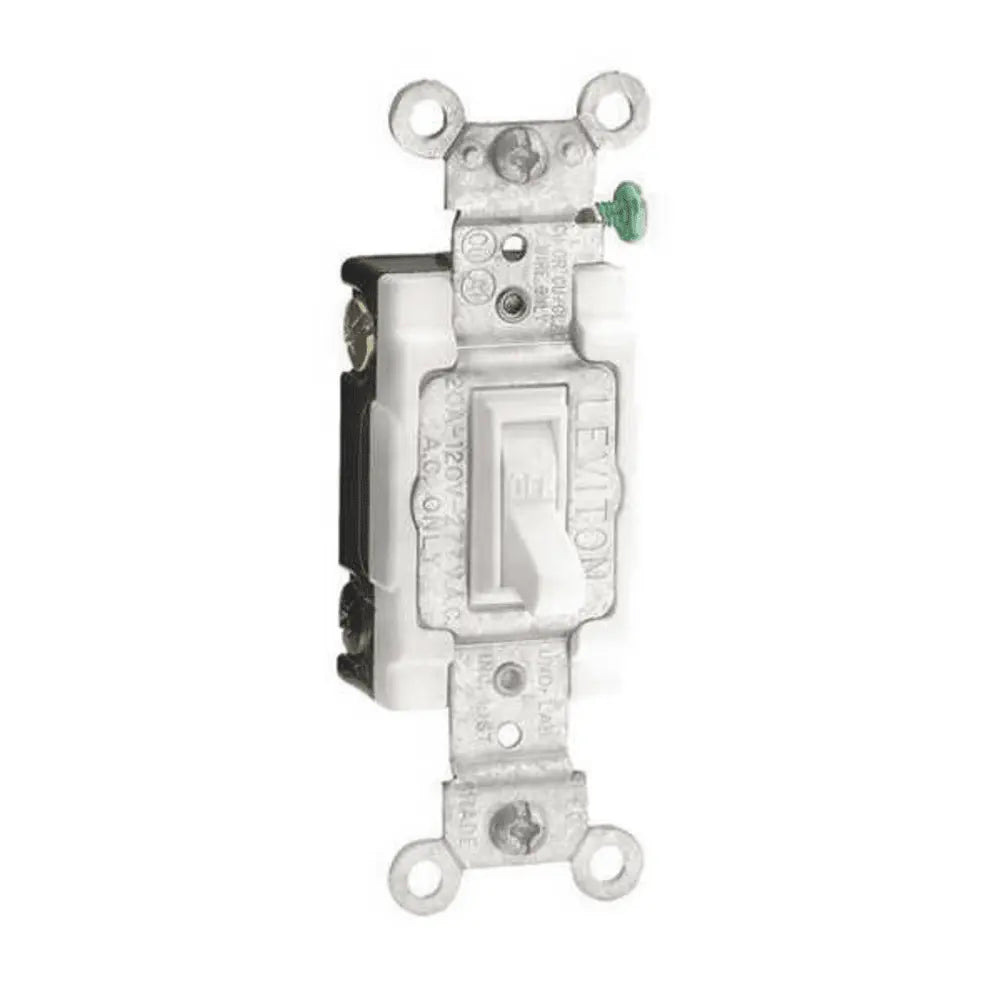

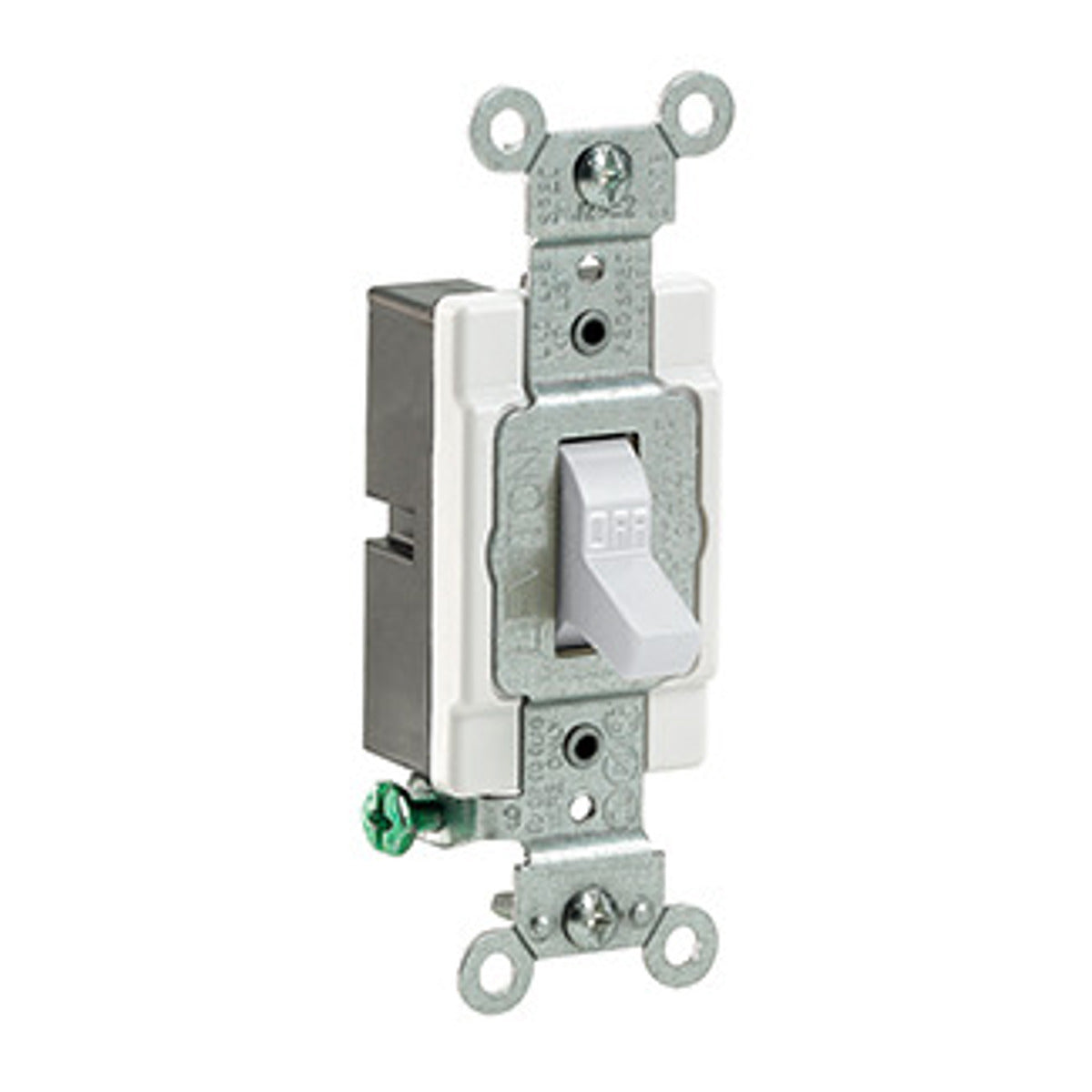

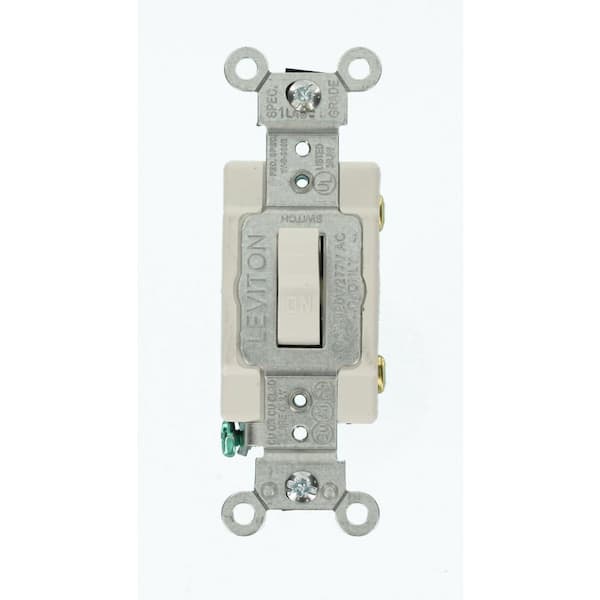

Leviton CS115-2W Toggle Single-Pole AC Quiet Switch, 15 Amp, 120/277 Volt

Product Description

The LEVITON CS115-2W is a commercial grade toggle single-pole AC quiet switch. Rated at 15 Amp and 120/277 Volt, this switch is designed for outstanding reliability and top performance in commercial settings. Ideal for municipal facilities, government buildings, and healthcare facilities.

• Large head triple drive combination screws for fast wiring installation
• Heavy gauge, rust resistant steel mounting strap
• Accepts no 14 to 12 AWG copper or copper clad wire

Product Highlights

This Leviton toggle switch offers outstanding reliability and top performance for commercial applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: CS115-2W
• Country of Origin: US

Technical Specifications

• UNSPSC Code: 39121400
• Type: Grounding
• Actuator: Toggle
• Material: Thermoplastic
• Mounting: Wall Mount
• Enclosure: NEMA WD-1/WD-6
• Manufacturer: LEVITON
• Power Rating: 1/2, 2 hp
• Terminal Type: Screw
• Contact Rating: 1/2 hp at 120 VAC, 2 hp at 240 VAC
• Voltage Rating: 120/277 VAC
• Amperage Rating: 15 A
• Number of Poles: 1
• Contact Configuration: SP
• Environmental Conditions: -40 to 120 deg C Operating Temperature
• MPN: CS115-2W
• Brand: LEVITON
• Amperage: 15A
• Voltage: 120/277V
• Switch Type: Toggle 1-Pole
• Features: Heavy Duty
• Poles: Unipolar
• Grade: Commercial Grade
• Connection: Screw terminal
• Standard: NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152
• Application: Commercial
• Operating Temperature: -40 to +120 DEG C
• Width: 1.31 Inches
• Height: 4.06 Inches
• Box Shape: Rectangular
• Insulated: No
• Terminal Gauge Max: 10 AWG ga
• Terminal Gauge Min: 14 AWG ga
• Wiring Syle: Side Wired
• Contact Type: Single Pole
• Market Class: C07
• Made in the USA: Yes
• Catalog Number: CS115-2W
• Country of Origin: US
• Action: SP
• UPC: 078477815540
• GTIN: 00078477815540
• Depth: .92
• Number Of Poles: Single-Pole
• Environment: -40 to 120 deg C
• Mfg Standards/Approvals: ANSI (C-73), CSA C22.2 No. 111 (File 152105) Certified, NEMA (WD-1 and WD-6), NOM Certified (057), RoHS Compliant, UL Fed Spec WS896E (File E7458), UL 20 Listed
• Brand Name: Leviton
• Alternative Part Number: 7333923
• Amperage Rating UOM: A
• IDEA Index ID: 7333923
• Power Rating UOM: hp
• Voltage Rating UOM: VAC
• IGCC: 5200
• Family group: WIRING DEVICES
• WES Product code: 2734562420
• Series: CS115-2
• Wattage Rating: 372.84W at 120V, 1491.39W at 240V to 277V
• No. Of Poles: 1
• Operating Temperature Range: -40 to 65 Deg C
• Standards: ANSI C-73, UL Fed Spec WS896E File #E7458, UL 20, CSA C22.2 No. 111: File #152105, NOM: 057, NEMA: WD-1 & WD-6
• eBay Product ID (ePID): 1000423124
• Number of Throws: 1
• Number of Switches: 1
• Port Type: Light Switch
• Current Type: AC
• Decorative Style: Traditional
• Number of Outlets: 1
• Orientation: Horizontal/Vertical
• Interruption Type: Switch
• Number of Ports: 1
• Electrical Connection: Screw Terminal
• Bulb Compatibility: LED
• Model: Leviton
• Number of Ways: 1
• Suitable For: Interior, Wall
• Control Style: Switch
• Operation Method: On/Off
• Switch Style: Toggle/Joystick
• Room: Bedroom, Bathroom, Lounge, Foyer, Dining Room, Kid's Bedroom, Living Room, Basement, Kitchen, Utility/Laundry Room, Home Office/Study, Patio, Any Room, Conservatory, Garage, Porch, Guestroom, Terrace, Hallway
• Mounting Style: Screw
• Current Rating: 1-5 A
• Item Height: 2.000
• ANSI [Specifications]: C-73
• Item [Specifications]: Wall Switch
• NEMA [Specifications]: WD-1 & WD-6
• Grade [Specifications]: Commercial Specification Grade
• Toggle [Specifications]: Polycarbonate
• Amps AC [Specifications]: 15
• Locking [Specifications]: No
• Voltage [Specifications]: 120/277 VAC
• Amperage [Specifications]: 15 A
• Contacts [Specifications]: Silver-Cadmium .031 Thick
• Function [Specifications]: Single-Pole
• Rated HP [Specifications]: 1/2
• HP Rating [Specifications]: 1/2HP-120V 2HP-240V-277V
• Standards [Specifications]: NEMA: WD-1 and WD-6, ANSI: C-73, UL Fed Spec WS896E: File #E7458, UL Standard: UL20, CSA C22.2 No. 111: File #152105, NOM: 057
• Voltage AC [Specifications]: 120 to 277
• Device Type [Specifications]: Toggle Switch
• Switch Type [Specifications]: 1-Pole
• Terminal ID [Specifications]: Brass-Hot, Green-Ground, Silver-Neutral
• Termination [Specifications]: Side Wire
• UL Standard [Specifications]: UL 20
• Flammability [Specifications]: Rated V-2 per UL94
• Switch Style [Specifications]: Toggle
• Antimicrobial [Specifications]: No
• Base Material [Specifications]: PBT
• Body Material [Specifications]: Thermoplastic
• Max. Amperage [Specifications]: 12 Amp
• Wiring Method [Specifications]: Side
• Cover Material [Specifications]: Nylon
• Strap Material [Specifications]: Steel
• Switch Function [Specifications]: Maintained
• Terminal Accom. [Specifications]: 14-12 AWG
• Terminal Screws [Specifications]: Steel 8-32
• Temperature Rise [Specifications]: Maximum 30 degrees C rise
• Actuator Material [Specifications]: Thermoplastic
• CSA C22.2 No. 111 [Specifications]: File #152105
• Dielectric Voltage [Specifications]: Withstands 1500V for 1 minute
• UL Fed Spec WS896E [Specifications]: File #E7458
• Operating Temperature [Specifications]: -40 00b0C to 65 00b0C
• Screw Terminal Torque [Specifications]: 14-18 in-lbs
• Application Environment [Specifications]: Commercial
• Description/Special Features [Specifications]: Quiet Switch
• Country of Origin (subject to change) [Specifications]: United States
