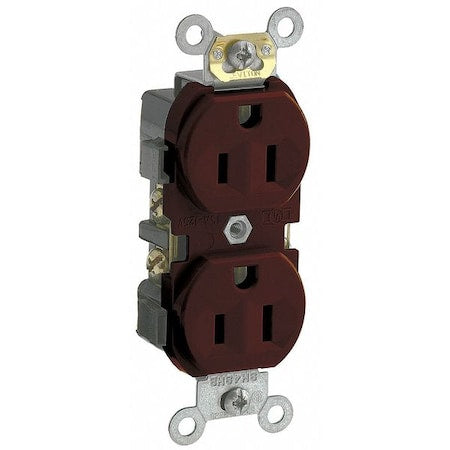

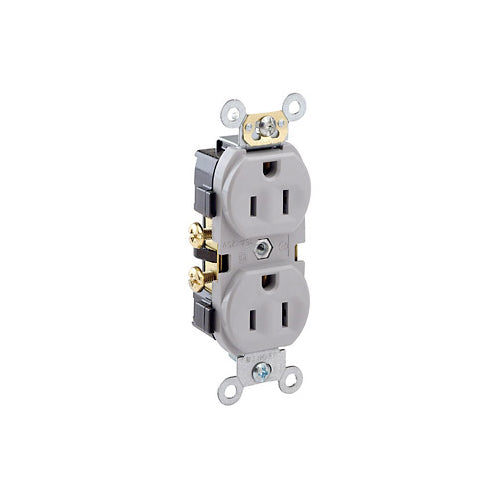

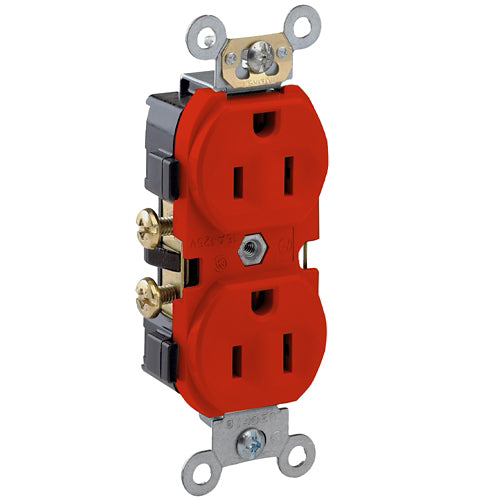

Leviton CR15 Duplex Receptacle 15-amp 125-volt

Product Description

The LEVITON CR15 is a straight blade, narrow body duplex receptacle. This commercial grade, self-grounding receptacle is side wired. Designed to withstand demanding environments, it is ideal for hotels, schools, hospitals and commercial office buildings.

• 15-Amp
• 125-Volt
• Self Grounding

Product Highlights

This receptacle features heavy duty brass power contacts for maximum conductivity and plug retention and a shallow design for maximum wiring room in box.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: CR15
• Country of Origin: United States

Technical Specifications

• Amperage Rating: 15 A
• Material: Thermoplastic
• Special Features: Indented Face
• Batteries Included?: No
• Batteries Required?: No
• Included Components: CR15
• Type: 1-Phase Duplex Indented Face Self-Grounding
• Enclosure: NEMA WD-1/WD-6
• Grade: Commercial Specification Grade
• Horsepower: 1/2 hp
• NEMA Rating: NEMA 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Side Wire
• Voltage Rating: 125 VAC
• Manufacturer Item Status: Active
• Manufacturer Name: Leviton
• Brand Name: Leviton
• UPC: 078477814703
• GTIN: 00078477814703
• Alternative Part Number: 7333746
• Amperage Rating UOM: A
• Country: USA|Canada
• Country Of Origin: US
• Horsepower UOM: hp
• IDEA Index ID: 7333746
• Temperature Rating UOM: deg C
• Standards/Approvals: NEMA WD-1/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating
• UNSPSC Code: 43223300
• Terminal Connection: Side Wired
• Maximum Load Capacity: 1/2 hp
• Strap Material: Zinc Plated Steel
• Environmental Conditions: V2 Flammability Rated Per UL94
• Contact Material: 0.031 Inch Double-Wipe Brass
• Conductor Size: 14-10 AWG
• Style: Duplex
• Standards: UL 498 E13399 Listed, CSA C22.2 No.42 152105, ANSI C-73, NOM 057, NEMA WD-1, WD-2, WD-6
• HP [Specifications]: 1/2 hp
• ANSI [Specifications]: C-73
• GFCI [Specifications]: No
• Item [Specifications]: Receptacle
• NEMA [Specifications]: WD-1 & WD-6
• Pole [Specifications]: 2
• Wire [Specifications]: 3
• Phase [Specifications]: Single
• Polarized [Specifications]: Yes
• UL498 [Specifications]: File E13399
• Market [Specifications]: Commercial
• Amperage [Specifications]: 15 A
• Feature 4 [Specifications]: Indented Face
• Grounding [Specifications]: Grounded
• Cover Type [Specifications]: No Cover
• Mount Type [Specifications]: Flush
• Device Type [Specifications]: Duplex Receptacle Outlet
• Terminal ID [Specifications]: Brass-Hot, Green-Ground, Silver-Neutral
• Termination [Specifications]: Side Wire
• Flammability [Specifications]: Rated V-2 per UL94
• Ground Clips [Specifications]: Brass-Plated
• Sub-Category [Specifications]: Duplex Receptacles
• Body Material [Specifications]: Thermoplastic
• Face Material [Specifications]: Thermoplastic
• Housing Color [Specifications]: Brown
• Line Contacts [Specifications]: Brass Double Wipe .031 Thick
• Wiring Method [Specifications]: Side
• Current Rating [Specifications]: 15 A
• Voltage Rating [Specifications]: 125V AC
• Grounding Screw [Specifications]: Steel 8-32
• Number of Poles [Specifications]: 2
• Number of Wires [Specifications]: 3
• Receptacle Type [Specifications]: Duplex
• Terminal Accom. [Specifications]: 14-10 AWG
• Terminal Screws [Specifications]: Steel 8-32
• At Rated Voltage [Specifications]: 1/2 HP
• CSA C22.2 No. 42 [Specifications]: File 152105
• Contact Material [Specifications]: Brass
• Current Limiting [Specifications]: Full Rated Current
• Housing Material [Specifications]: Thermoplastic
• Temperature Rise [Specifications]: Max 30C after 100 cycles OL at 150 percent rated current
• Horsepower Rating [Specifications]: 1/2 hp
• Maximum Wire Size [Specifications]: 10 AWG
• Minimum Wire Size [Specifications]: 14 AWG
• Number of Outlets [Specifications]: 2
• Dielectric Voltage [Specifications]: Withstands 2000V per UL498
• NEMA Configuration [Specifications]: 5-15
• Wire Connection Type [Specifications]: Screw Terminals
• NEMA Enclosure Rating [Specifications]: Not Rated
• Operating Temperature [Specifications]: -40 Degrees C
• Resistance Properties [Specifications]: Not Applicable
• Screw Terminal Torque [Specifications]: 14-18 in-lbs
• Wire Connection Types [Specifications]: Screw Terminals
• Connection Orientation [Specifications]: Straight
• Application Environment [Specifications]: Commercial
• Number of Poles & Wires [Specifications]: 2 Pole / 3 Wire
• Key Resistance Properties [Specifications]: Standard Resistance
• UL 94 Flammability Rating [Specifications]: V-2
• Amps - Plugs and Receptacles [Specifications]: 15 A
• Item - Plugs and Receptacles [Specifications]: Duplex Receptacle Outlet
• Color - Plugs and Receptacles [Specifications]: Brown
• Maximum Operating Temperature [Specifications]: 60 Degrees C
• Minimum Operating Temperature [Specifications]: -40 Degrees C
• NEMA Receptacle Configuration [Specifications]: 5-15R
• Primary Resistance Properties [Specifications]: 15 A
• Voltage - Plugs and Receptacles [Specifications]: 125VAC
• Additional Electrical Protection [Specifications]: Standard Protection
• Hazardous Location Specification [Specifications]: Not Applicable
• Additional Electrical Protections [Specifications]: Standard Protection
• Outlet Type - Plugs and Receptacles [Specifications]: Duplex
• Country of Origin (subject to change) [Specifications]: United States
• Wiring Method - Plugs and Receptacles [Specifications]: Side
• NEMA Receptacle Configuration - Plugs and Receptacles [Specifications]: 5-15R
• RoHS Flag: Contact manufacturer
• Dielectric Strength: 2000 Volt
• AC Horsepower Ratings At Rated Voltage: 1/2 HP
• Product ID: Ratings are permanently marked on device
• Nema: 5-15R
• RoHS Compliant: Yes
• Grounding: Self-Grounding
• Pole: 2
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
• Wire: 3
• Flammability: Rated V-2 per UL94
• Operating Temperature: -40 Degrees C
• Body Material: Thermoplastic
• Face Material: Thermoplastic
• Ground Clips: Brass-Plated
• Grounding Screw: Steel 8-32
• Line Contacts: Brass Double Wipe .031 Thick
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire
• Device Type: Duplex Receptacle Outlet
• NOM: 057
• UL498: File E13399
