Leviton CR020-1PI Duplex Receptacle 20A 125V (2-Pole 3-Wire)

Brand: LEVITON
SKU: CR020-1PI
Availability: In Stock

Ships same day if ordered by 12 pm
$36.17
$36.17
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

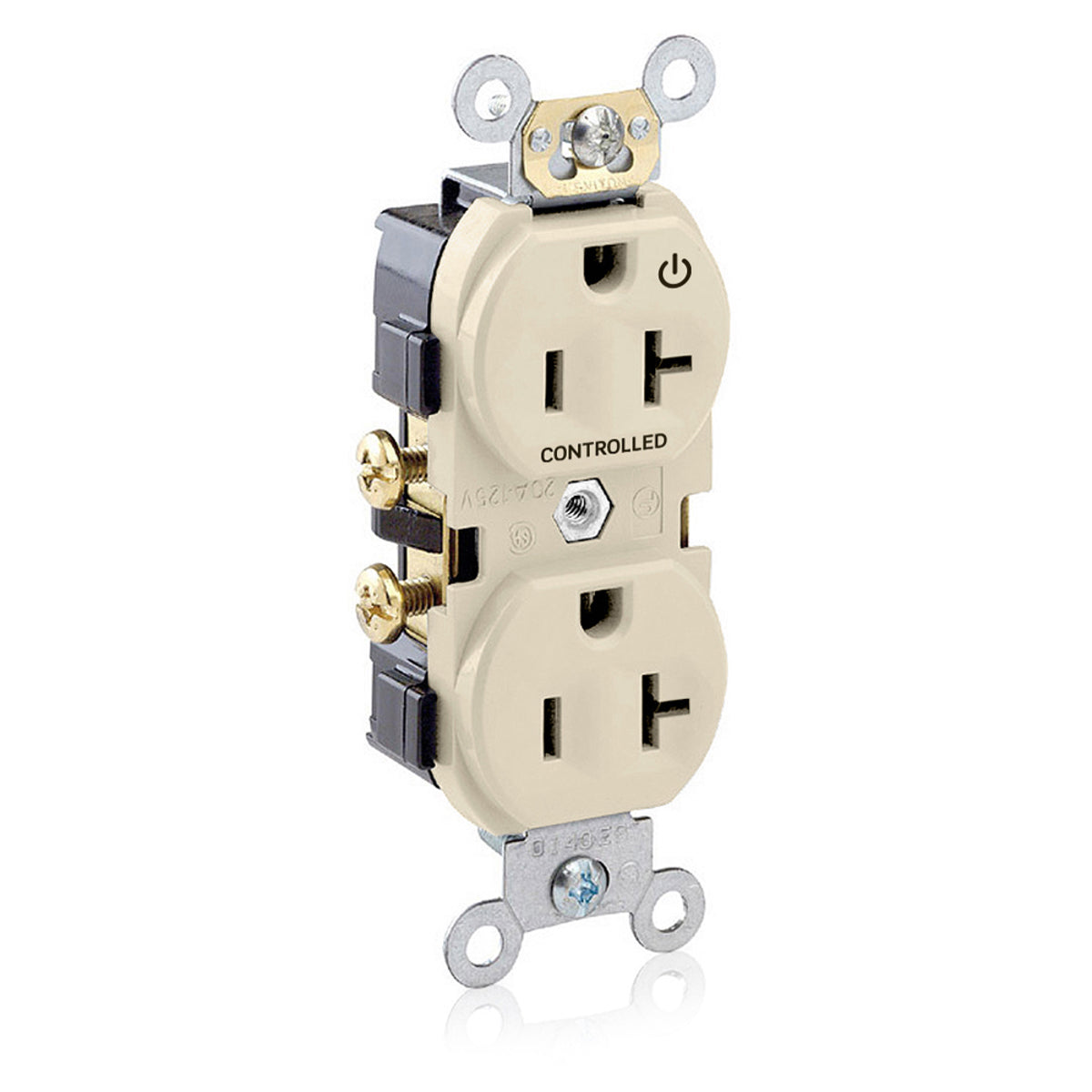

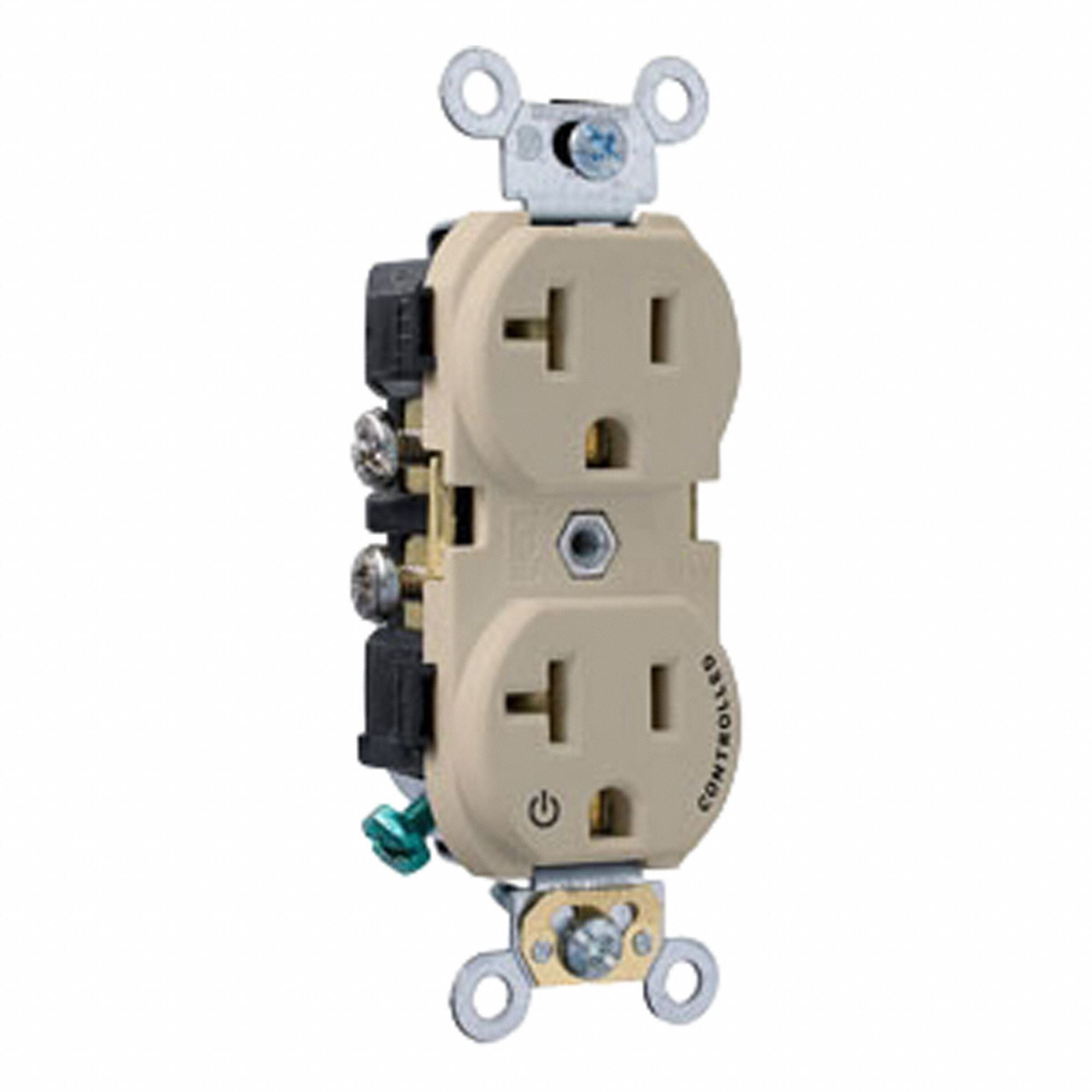

Leviton CR020-1PI is a commercial specification grade duplex receptacle rated 20 Amp, 125 Volt, with one outlet marked Controlled. It is a split-circuit NEMA 5-20R device with side-wire termination, 2-pole, 3-wire configuration and self-grounding construction. The unit features a smooth snap-on flat face and withstands 2000 V dielectric testing per UL 498.

  • Rated 20 A, 125 V; NEMA 5-20R configuration
  • Split-circuit duplex with one outlet marked Controlled; 2-pole, 3-wire
  • Side-wire termination, self-grounding, smooth snap-on flat face; meets UL 498 and CSA C22.2 No. 42

Product Highlights

Commercial-grade split-circuit duplex receptacle with one controlled outlet and side-wire termination

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: CR020-1PI
  • Country of Origin: Mexico
Technical Specifications
Brand
Leviton
MPN
CR020-1PI
Device Type
Duplex receptacle outlet
Type
Controlled receptacle (split-circuit)
Current Rating
20 A
Voltage Rating
125 V AC
NEMA Configuration
5-20R
Number of Poles
2
Number of Wires
3
Termination Type
Side wire
Grounding
Self-grounding
Face Type
Smooth snap-on flat face cover
Dielectric Strength
2000 V (withstand per UL 498)
Standards/Certifications
UL 498; CSA C22.2 No. 42
Grade
Commercial specification
Operating Temperature
-40 degrees C (single value provided; typical spec may be a range)
Country of Origin
Mexico
