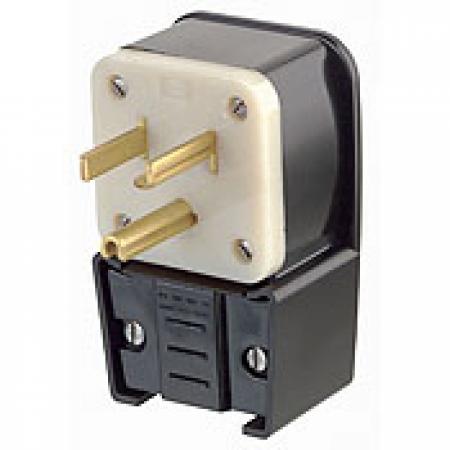

Leviton 9530-P x2cd/str bl angle plug 30 amp

Product Description

The Leviton 9530-P X2cd/str Bl Angle Plug is a heavy-duty industrial power plug offering long-lasting reliability. This straight blade plug is rated for 30 Amp and 125 Volt. Constructed with a super tough nylon body, it is suitable for industrial applications. It accommodates cord diameters from 5/8 to 1-3/8 inches.

• Features a rugged cord clamp for secure cable grip.
• Constructed from heavy-duty nylon for long service life.
• Terminals accept up to #4 AWG stranded conductor.

Product Highlights

Industrial grade straight blade plug with angled cable mount grounding, designed for superior performance and durability.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 9530-P
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 9530-P
• NEMA: WD-6
• Type: Power Plug
• Brand: Leviton
• Color: Black
• Voltage: 125 VAC
• Amperage: 30 A
• Material: Nylon
• Standard: ANSI C-73
• Cord Size: 0.625 - 1.375 in
• Grounding: Grounding
• Sub Brand: Straight Blade Plugs and Conn
• Wire Size: 4 AWG
• Blade Type: Solid Brass
• Horsepower: 2 hp
• Screw Type: Steel,Zinc-Plated
• Wire Count: 3
• Device Type: Straight Blade Plug
• Applications: For Industrial use
• Body Material: Super Tough Nylon
• Mounting Type: Cable
• Conductor Size: 10-4 AWG
• Number of Poles: 2
• Number of Wires: 3
• Operating Temperature: -40 degrees C
• Environmental Conditions: -40 to 60 C
• Amperage Rating: 30A
• Cord Diameter: 5/8 to 1-3/8 in
• Grade: Industrial
• NEMA Rating: NEMA 5-30P
• Temperature Rating: -40 to 60 deg C
• Manufacturer: LEVITON
• Volts AC: 120
• NEMA Configuration: 5-30P
• Application: Industrial
• AWG Range: 10 - 4 AWG
• Color Family: Black
