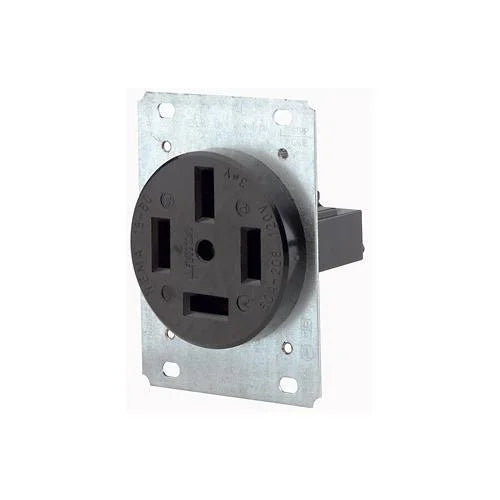

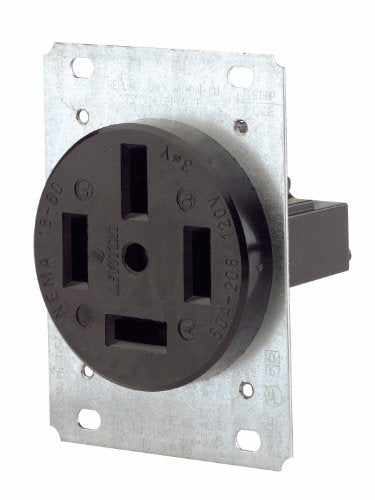

Leviton 8360 Receptacle 60 Amp, 120/208 Volt

Product Description

The Leviton 8360 is a 60 Amp, 120/208 Volt flush mounting receptacle with a straight blade, designed for industrial use. This heavy-duty, non-grounding receptacle is built to withstand harsh conditions in factories, schools, hospitals, and commercial buildings. It is a 3-Phase Extra Heavy Duty receptacle.

• Heavy-Gauge, Double-Wipe Copper Alloy Contacts
• Easy to Wire Terminals Accept up to #4 AWG Conductors
• Terminals Marked for Easy Identification and Fast Wiring

Product Highlights

This industrial-grade receptacle ensures reliable performance in demanding environments. It fits single or two-gang outlet boxes.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 8360
• Country of Origin: Mexico

Technical Specifications

• Color: Black
• Voltage: 120/208 Volt
• Material: Nylon
• Compatible Devices: All
• Batteries Included?: No
• Batteries Required?: No
• Included Components: Leviton 8360 XND/60A 4 WIRE RECEPT
• Approval: UL 498, CSA C22.2, NOM 057
• Configuration: 18-60R
• Ground Type: Non-Grounding
• Manufacturer Name: Leviton
• Mounting: Flush
• Number Of Poles: 4
• Number Of Wires: 4
• PDW ID: ECL157961
• Product UPC: 07847784329
• Type: Single
• Amperage: 60 Amp
• Blade Type: Straight Blade
• Grade: Industrial Grade
• Amperage Rating: 60 A
• Horsepower: 7-1/2 hp
• NEMA Rating: NEMA 18-60R
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Side Wire
• Voltage Rating: 120/208V AC
• Manufacturer: LEVITON
• Manufacturer Item Status: Active
• Brand Name: Leviton
• UPC: 078477843291
• GTIN: 00078477843291
• Alternative Part Number: 7342100
• Application: Factories, Schools, Hospitals and Commercial Office Buildings
• Country: USA|Canada
• Country Of Origin: MX
• Temperature Rating UOM: deg C
• Voltage Rating UOM: VAC
• HP: 7.5
• ANSI: C-73
• Amps: 60
• Item: Receptacle
• NEMA: 18-60R
• Pole: 4
• Wire: 4
• Phase: 3
• UL498: File E13399
• Outlet Type: Single
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Sub-Category: Single Receptacles
• Torque Range: 25 in-lbs
• Body Material: Nylon
• Face Material: Nylon
• Line Contacts: Brass Double-Wipe
• Wiring Method: Side
• Strap Material: Galvanized Steel
• Number of Gangs: 1
• At Rated Voltage: 7-1/2 HP
• CSA C22.2 No. 42: File 152105
• Current Limiting: Full Rated Current
• Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
• Operating Temperature: -40 C to 60 C
• Application Environment: Industrial
• NEMA Configuration: 18-60
• AFCI: No
• GFCI: No
• Market: Industrial
• Hub Type: Dead End
• Shrouded: No
• IP Rating: Not Rated
• Polarized: Yes
• Standards: ANSI C73, CSA C22.2 No. 42 File E152105
• Cover Type: No Cover
• Reset Type: Not Applicable
• Device Type: Straight Blade Receptacle
• Flange Type: Non-Flanged
• Flange Shape: Rectangular
• Housing Color: Black
• Receptacle Type: Single
• Terminal Accom.: Up to 4 AWG
• Contact Material: Brass
• Housing Material: Nylon
• Surge Protection: No
• Horsepower Rating: 7 1/2 hp
• Minimum Wire Size: 4 AWG
• Number of Outlets: 1
• Dielectric Voltage: Withstands 2000V per UL498
• Wire Connection Type: Screw Terminals
• Resistance Properties: Tamper Resistant
• Wire Connection Types: Screw Terminals
• Connection Orientation: Straight
• Number of Poles & Wires: 4 Pole / 4 Wire
• Key Resistance Properties: Tamper Resistant
• UL 94 Flammability Rating: V-2
• Amps - Plugs and Receptacles: 60 A
• Item - Plugs and Receptacles: Straight Blade Receptacle
• Color - Plugs and Receptacles: Black
• Maximum Operating Temperature: 60 Degrees C
• Minimum Operating Temperature: -40 Degrees C
• NEMA Receptacle Configuration: 18-60R
• Primary Resistance Properties: Tamper Resistant - Tamper Resistant - 60 A
• Voltage - Plugs and Receptacles: 120/208VAC
• Additional Electrical Protection: Standard Protection
• Additional Electrical Protections: Standard Protection
• Outlet Type - Plugs and Receptacles: Single
• Country of Origin (subject to change): Mexico
• Mounting Type - Plugs and Receptacles: Flush
• Wiring Method - Plugs and Receptacles: Side
• NEMA Receptacle Configuration - Plugs and Receptacles: 18-60R
• RoHS Compliant: Yes
• NOM: 057
• Dimensions: H: 3.875 in
• W: 2.281 in
• D: 2.875 in
• Aesthetic Styles: Black
• Installation Type: In-Wall
• Volts AC: 120, 208
• Smart Home Compatibility: Not Smart Home Compatible
• Total Power Outlets: 1
• Description: Non Grounding
