Leviton 8332-P Straight Blade Plug 30 Amp, 120/208 Volt Angle

Brand: LEVITON
SKU: 8332-P
Availability: In Stock

Ships same day if ordered by 12 pm
$57.59
$57.59
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

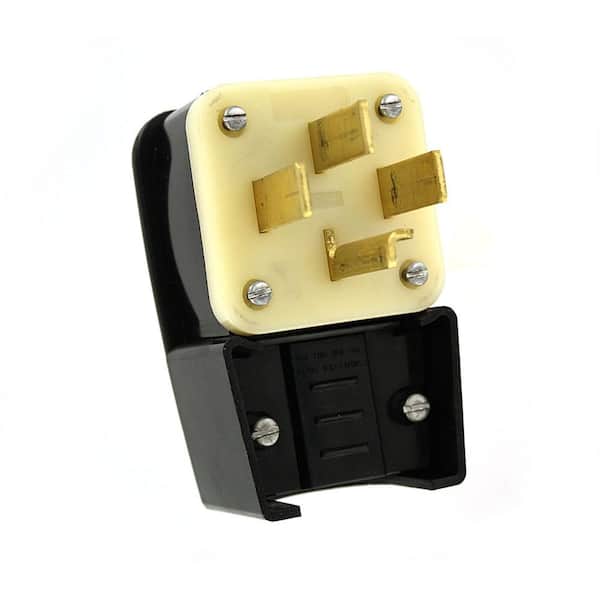

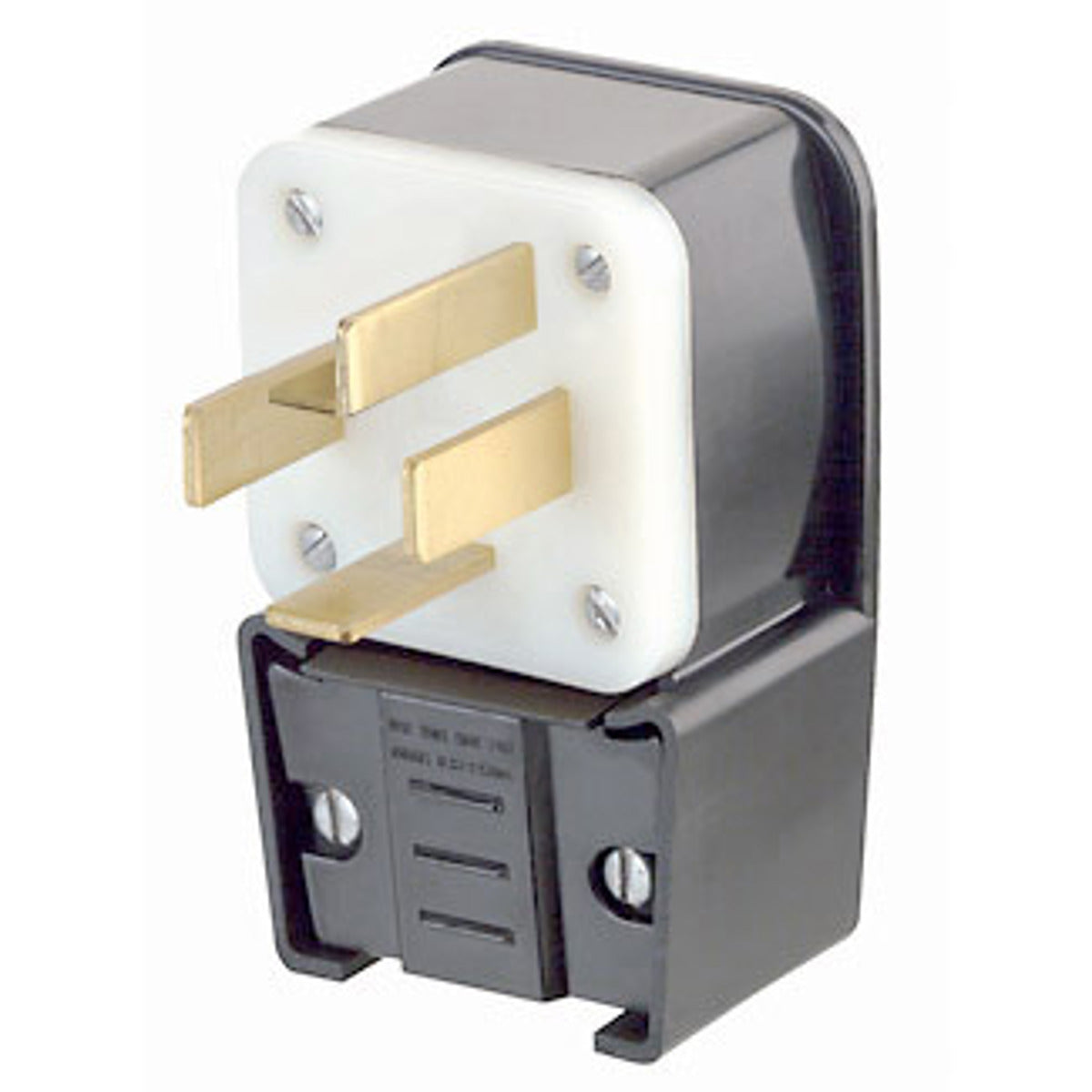

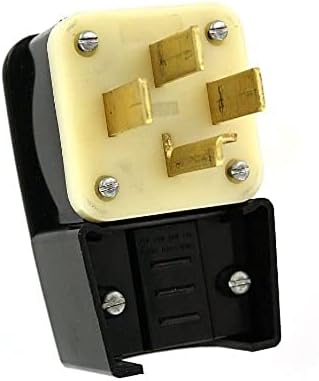

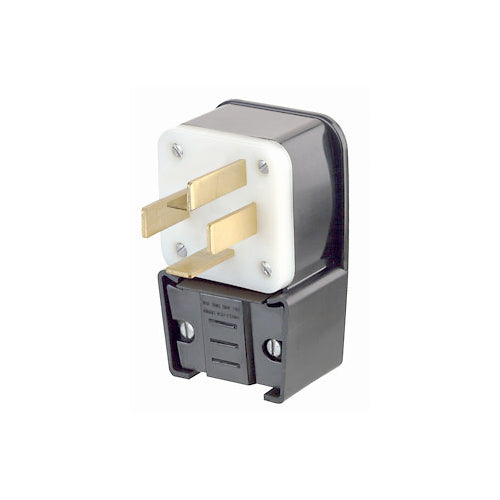

The LEVITON 8332-P is a straight blade plug designed for industrial applications. Rated at 30 Amp and 120/208 Volt, this 3-Phase angled plug features a non-grounding design. Constructed with a thermoplastic body and solid brass blades, it ensures durability and conductivity. Ideal for various industrial uses, it meets NEMA 18-30P standards.

  • Accommodates cord diameters from 5/8 to 1-3/8 inches
  • Features a rugged cord clamp for a secure cable grip
  • Constructed from heavy-duty thermoplastic for long service life

Product Highlights

Industrial grade straight blade plug with angled design, suitable for 3-Phase power applications.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: 8332-P
  • Country of Origin: Mexico
Technical Specifications
Catalog Number
8332-P
Manufacturer
Leviton
Brand
Leviton
Sub Brand
Black & White
Country of Origin
Mexico
Made in USA
No
Amperage Rating
30 A
Application
Industrial
Color
Black
Material
Thermoplastic
Mounting
Cable
NEMA Rating
18-30P
Number of Poles
4
Number of Wires
4
Phase
3
Standard
NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399)
UPC
078477810101
GTIN
00078477810101
Item Type
Power Plug
Environmental Conditions
Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)
Voltage Rating
120/208 VAC
Wire Size
10-4 AWG
Cord Diameter
5/8 to 1-3/8 in
Grade
Industrial
Horsepower
3 hp
Temperature Rating
-40 to 60 deg C
Type
3-Phase Angled Cable Mount Non-Grounding Non-Polarized
RoHS Compliant
Yes
Current Limiting
Full Rated Current
Dielectric Voltage
Withstands 2000V per UL498
Grounding
Non-Grounding
Pole
4
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
Wire
4
Operating Temperature
-40 C to 60 C
Assembly Screws
Steel, Zinc Plated
Blades/Contacts
Solid Brass
Body Material
Super Tough Nylon
Cord Range
.625 - 1.375
Product ID
Ratings are permanently marked on device
Terminal Accom.
Up to 4 AWG
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Wire Gauge
10-4 AWG
Device Type
Power Device
Feature
Angled
Connector Type
Straight Blade
Plug Type
Type B
Product Grade
Industrial
Amperage
30 Amps
Specification Met
NEMA
