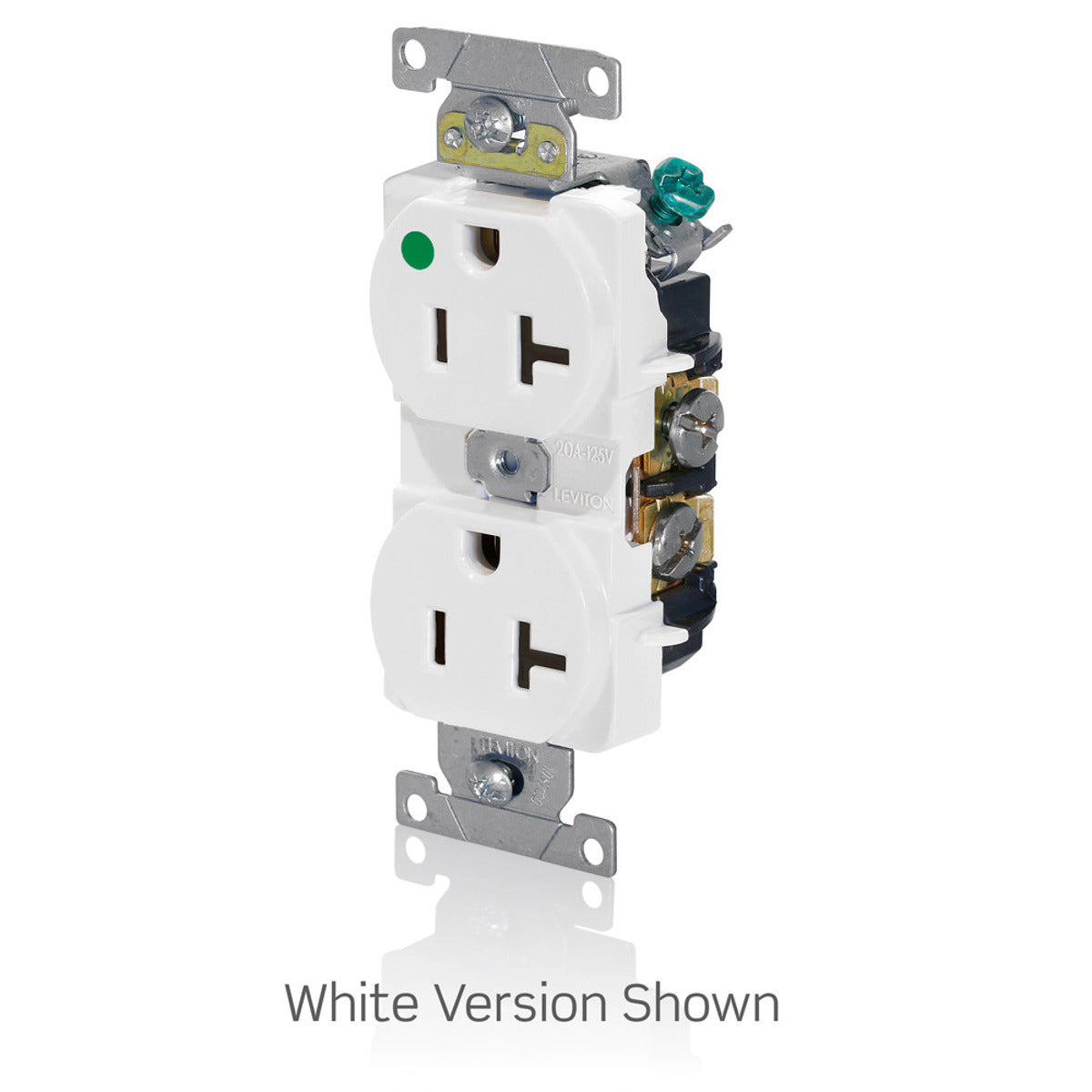

Leviton 8300-H 20-Amp, 125-Volt Heavy Duty Hospital Grade Duplex Receptacle

Product Description

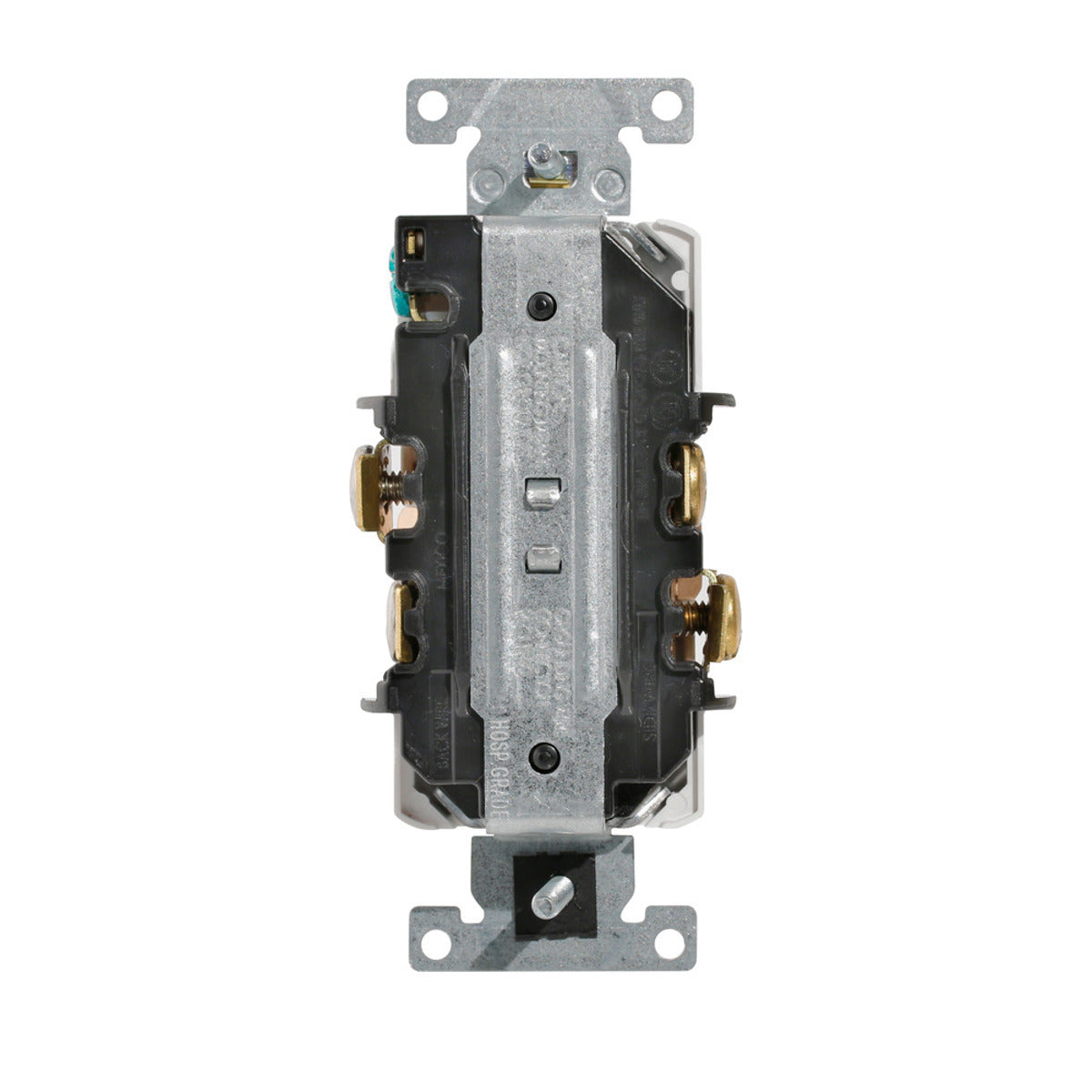

The Leviton 8300-H is a 20-Amp, 125-Volt heavy duty hospital grade duplex receptacle. Designed for commercial applications, it features back and side wiring options for easy installation. This receptacle is suitable for high abuse tolerance environments.

• Hospital grade duplex receptacle
• Designed for durability in commercial settings
• Temperature rating from negative forty to sixty degrees Celsius

Product Highlights

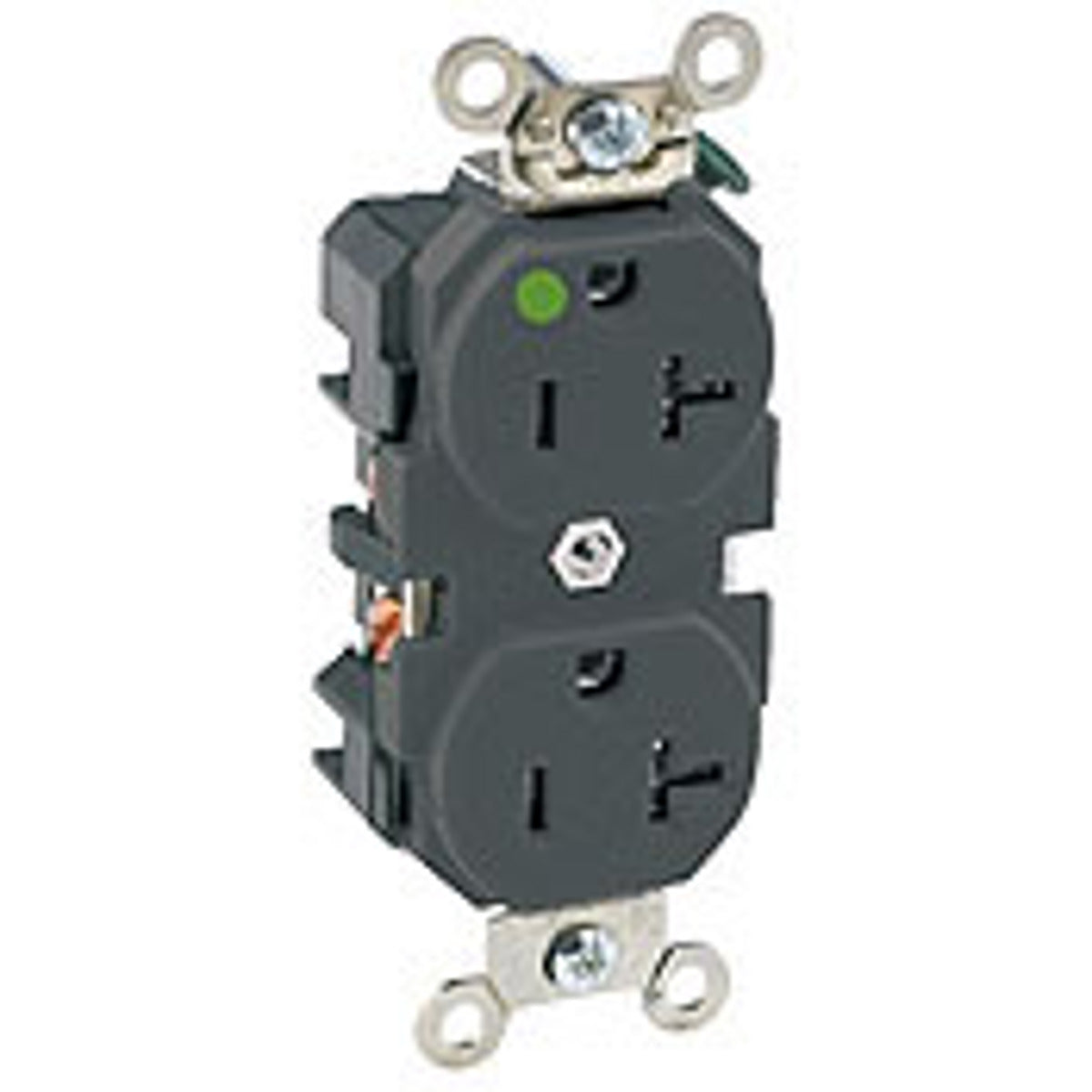

The Leviton 8300-H is made from thermoplastic material and comes in brown color. It supports a voltage rating of 125 VAC and has a NEMA 5-20R rating, ensuring quality and safety in various applications.

Product Information

Standard Information

• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 8300-H
• Voltage Rating: 125 VAC
• NEMA Rating: 5-20R
• Material: Thermoplastic
• Dimensions: 4.06 inches high x 1.51 inches wide x 1.18 inches deep
• Environmental Conditions: Flammability rated V-2 per UL94
• Temperature Rating: Negative forty to sixty degrees Celsius
• Standards: ANSI (C-73), CSA C22.2 No. 42, UL 498HG
