Product Description

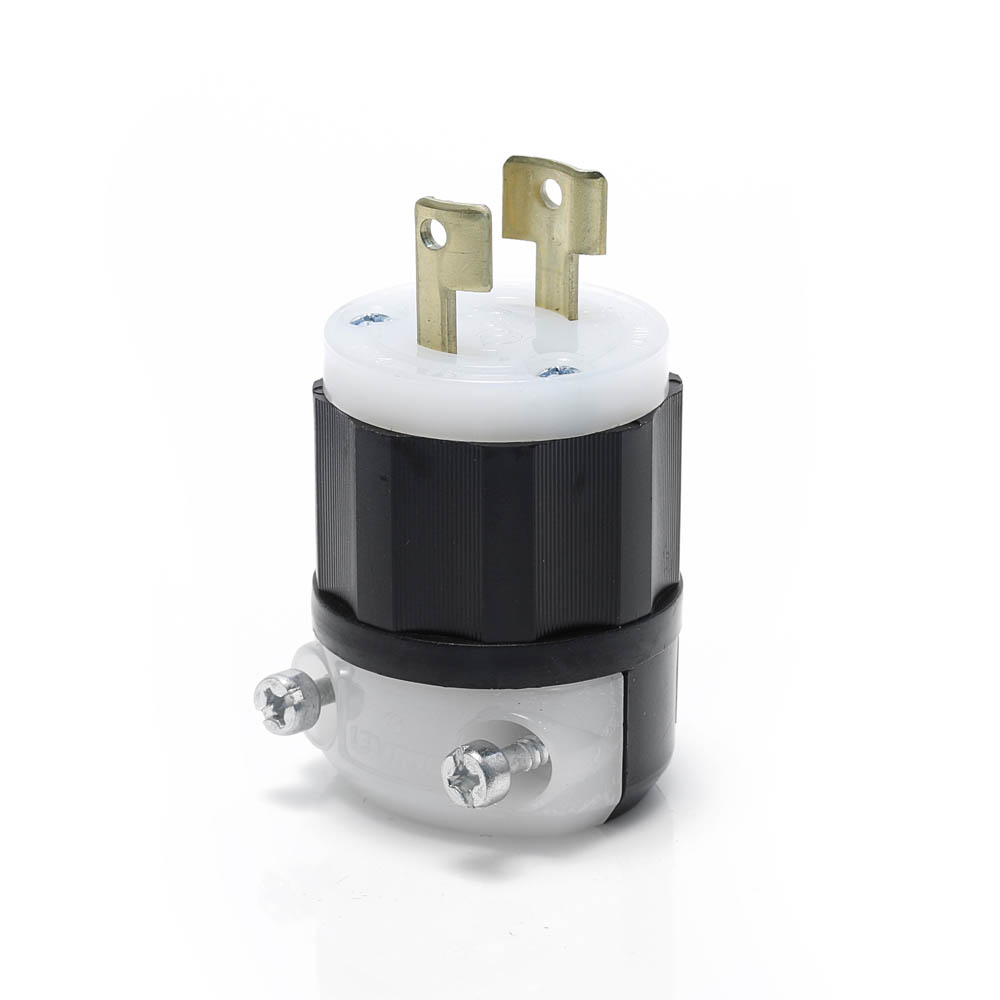

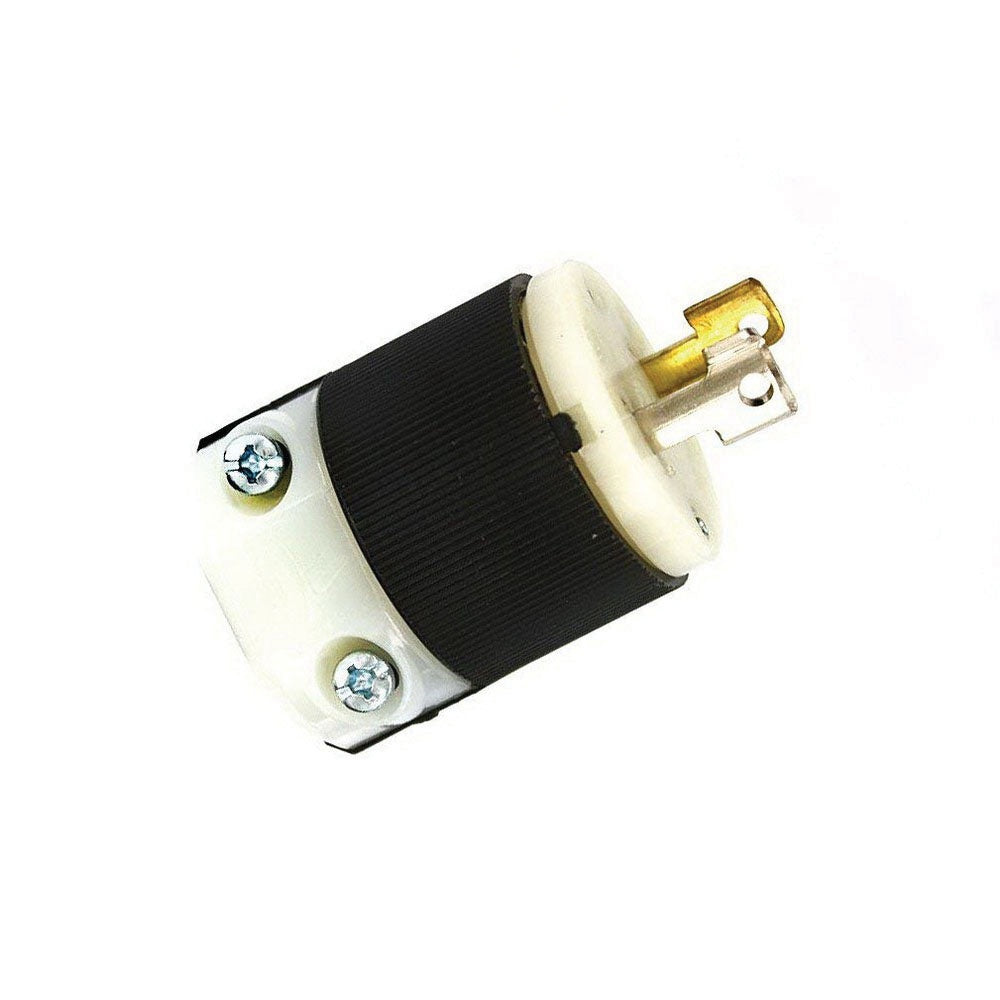

The Leviton 7545-C is an industrial grade locking plug designed for superior performance in demanding industrial environments. This non-grounding plug features robust construction and quality materials for unmatched flexibility and dependability. It is rated for 15A at 125V and suitable for industrial applications.
- One piece contacts reduce friction and overheating

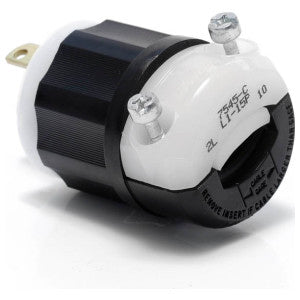

- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
Product Highlights
This Leviton locking plug offers long-lasting reliability.
Product Information
Standard Information
-
Brand: Leviton
-
Manufacturer Part Number: 7545-C
-
Country of Origin: Mexico
Technical Specifications
-
Catalog Number: 7545-C
-
NEMA: WD-1, WD-6
-
Type: Locking Plug
-
Brand: Leviton
-
Voltage: 125 Volt
-
Amperage: 15 Amp
-
Standard: ANSI C-73
-
Cord Size: 0.23 - 0.65 in
-
Grounding: Non-Grounding
-
Sub Brand: Black & White
-
Wire Size: 18-10 AWG
-
Blade Type: Solid Brass
-
Dielectric: 2000 V
-
Horsepower: 1/2 hp
-
Screw Type: Steel,Zinc-Plated
-
Wire Count: 2
-
Environment: Dry
-
Applications: For Industrial Use
-
Body Material: Impact Modified Nylon
-
Terminal Size: 18-10 AWG
-
Conductor Size: 18-10 AWG
-
Screw Material: Brass
-
Number of Poles: 2 Pole
-
Number of Wires: 2 Wire
-
Contact Material: Solid Brass
-
Country of Origin: Mexico
-
Flamability Class: Rated HB Or Better UL94
-
Operating Temperature: -40 degrees C
-
Environmental Conditions: -40 to 60 C
-
Rated Insulation Voltage: 2000 V
-
Configuration: L1-15P
-
Material: Nylon
-
Grade: Industrial
-
Terminal Type: Screw
-
Voltage Rating: 125 VAC
-
Amperage Rating: 15 A
-
NEMA Rating: NEMA L1-15P
