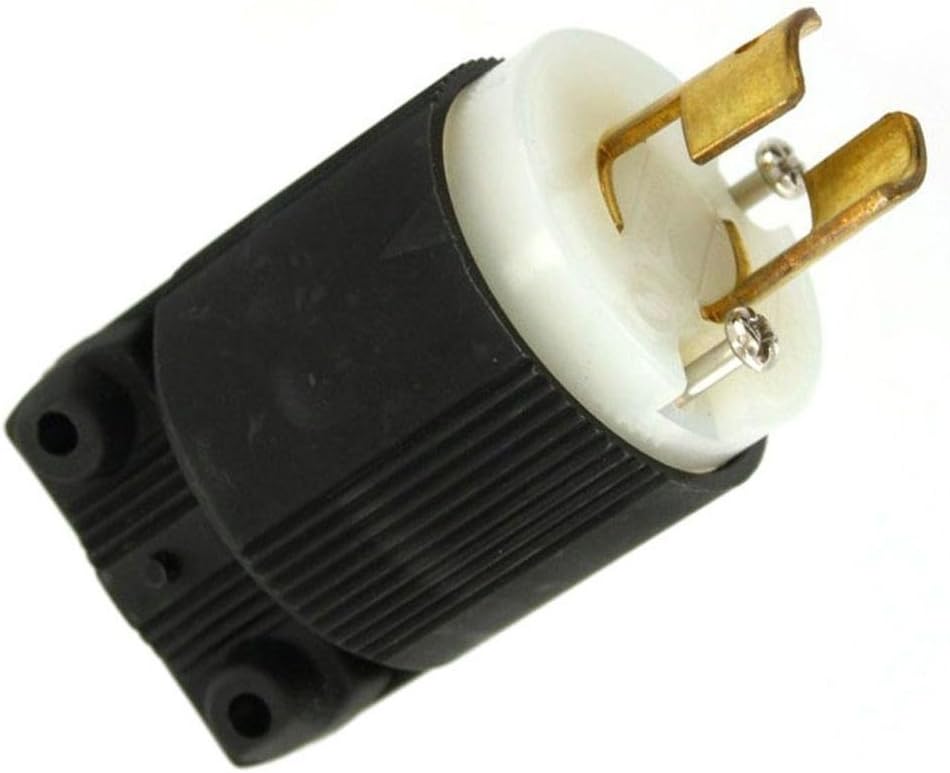

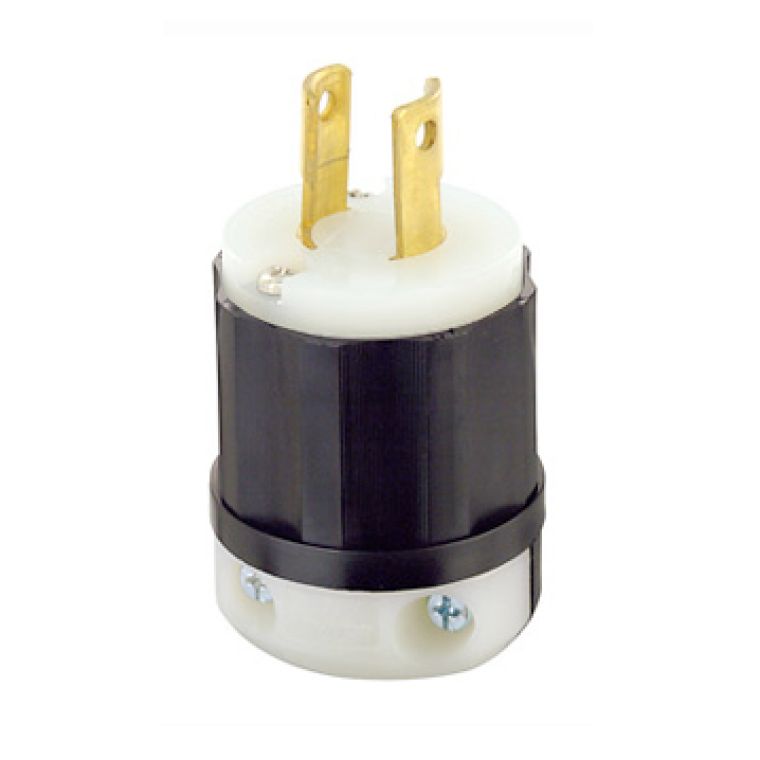

Leviton 7102-C Plug Locking Blade 20A 250V

Brand: LEVITON
SKU: 7102-C
Availability: In Stock

Ships same day if ordered by 12 pm
$32.83
$32.83
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Leviton 7102-C locking blade plug is rated for 20A and 250V. This industrial grade plug features a straight connection orientation and screw terminals for wire connection. Constructed with impact modified nylon, it is chemical, impact, and UV/sunlight resistant. Designed for dry environments.

  • Chemical, impact, and UV/sunlight resistant
  • NEMA Plug Configuration L2-20P
  • Screw terminals for wire connection

Product Highlights

The Leviton 7102-C is ideal for industrial applications requiring a durable and reliable locking plug.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: 7102-C
  • Country of Origin: United States
Technical Specifications
Voltage
250 Volts
No. of wires
3
Certification
NEMA
Connector Type
Plug in
Specification Met
NEMA
Item
Locking Plug
Grade
Federal Specification
Phase
Single
Market
Industrial
Material
Impact Modified Nylon
Shrouded
No
Grounding
Non-Grounded
IP Rating
Not Rated
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified
Temp. Rise
Max 30C at 250 cycles OL at 200 pct rated current
Body Length
1.98 in
Flammability
Rated HB or better UL94
Wiring Style
Standard
Body Material
Impact Modified Nylon
Face Diameter
1.39 in
Housing Color
Black, White
Blade Material
Brass
Current Rating
20 A
Midget Locking
No
Overall Length
2.71 in
Voltage Rating
250V AC
For Environment
Dry
Number of Poles
2
Number of Wires
2
Operating Temp.
-40A deg C to 60A deg C
Housing Material
Nylon
Number of Blades
2
Outside Diameter
1.53 in
Special Features
Chemical Resistant, Resists Impact, Rough Use, Sunlight
Horsepower Rating
2 hp
Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
NEMA Configuration
L2-20
Wire Connection Type
Screw Terminals
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Connection Orientation
Straight
NEMA Plug Configuration
L2-20P
UL 94 Flammability Rating
HB
For Maximum Cable Diameter
0.7 in
For Minimum Cable Diameter
0.245 in
Amps - Plugs and Receptacles
20A
Voltage - Plugs and Receptacles
250VAC
Hazardous Location Specification
Not Applicable
HP
2
RoHS Compliant
Yes
AC Horsepower Ratings At Rated Voltage
2 HP
Amperage
20 A
Current Interrupting
Certified for current interrupting at full rated current
Dielectric Voltage
Withstands 2000V per UL498
Assembly Screws
Steel, Zinc Plated
Back Cover
Thermoplastic
Blades/Contacts
Solid Brass
Clamp Insert
Nylon
Cord-Clamp
Nylon
Terminal Screws
Brass
Wire Module
Nylon
Cord Range
.245 - .700
Terminal Accom.
18-10 AWG
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Torque Range
12-14 in-lbs
Brand Name
Leviton
Brand Part Number
7102-C
Number Of Poles
2
