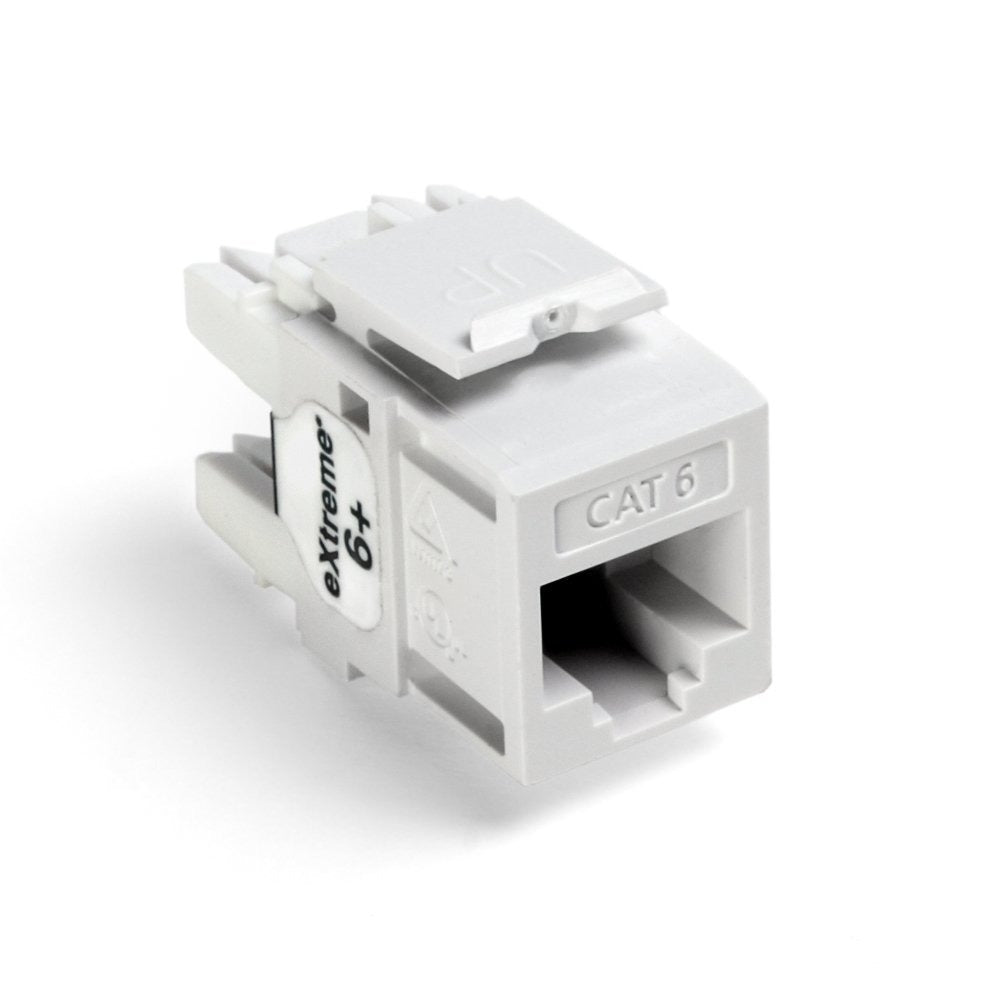

Leviton 61110-RW6 Cat 6 Quickport Jack White

Product Description

The LEVITON 61110-RW6 is an eXtreme 6+ QuickPort CAT 6 jack designed for high-performance structured cabling installations. This 8-position, 8-conductor connector supports data transmission up to 200 MHz and meets or exceeds TIA/EIA Category 6 channel and component-level performance standards. The jack snaps directly into any QuickPort-compatible housing or wall plate, making it a reliable choice for phone, fax, modem, internet, and computer network applications. Licensed electricians and low-voltage cabling technicians install this connector in both new construction and retrofit projects where fast, repeatable terminations are required.

This jack is suited for residential and light commercial structured wiring systems where CAT 6 performance is specified. It can access up to 4 lines from a single jack, reducing the number of outlets needed at a workstation or media location. The snap-in QuickPort form factor allows technicians to mix and match connectors within a single housing to create custom audio, video, voice, and data configurations. Its design also ensures forward compatibility as cabling infrastructure evolves. The 61110-RW6 is finished in white and is compatible with CAT 5E components as well.

Key Features

• Meets or exceeds TIA/EIA Category 6 channel and component-level performance standards
• Supports data transmission frequencies up to 200 MHz
• 8-position, 8-conductor design supports up to 4 lines per jack
• Snap-in QuickPort design fits any QuickPort housing or wall plate
• Connector body is high-impact, fire-retardant plastic rated UL 94V-4
• cULus Listed, NOM, and ACA certified; compatible with CAT 5E components

Compatibility

Compatible with any QuickPort housing or wall plate. Also compatible with CAT 5E components. TIA/EIA channel performance limits total length of patching and equipment cords to 32 feet (10 meters) per TIA/EIA-568-B.

Installation Notes

Installation should be performed by a licensed electrician or certified low-voltage cabling technician in accordance with applicable NEC and TIA/EIA-568 standards. De-energize and disconnect all circuits before terminating or replacing any jack. Use a 110-style punch-down tool for proper conductor seating if required by the specific housing. Avoid exceeding the maximum patch cord and equipment cord length specified by the TIA/EIA channel performance guidelines.
