Leviton 5662-I Duplex Receptacle 15 Amp 250 Volt Replacement MPN

Brand: LEVITON
SKU: 5662-I
Availability: Out Of Stock
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

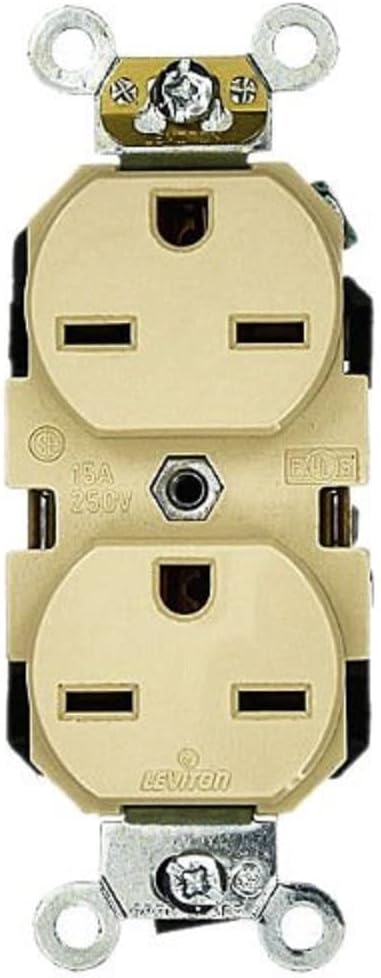

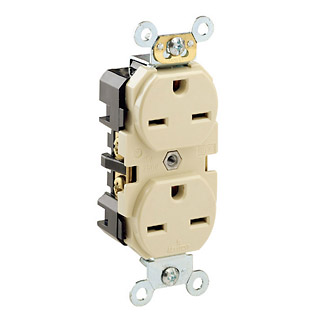

The Leviton 5662-I is a durable duplex receptacle rated for 15 Amps and 250 Volts. It is designed for heavy-duty industrial and commercial use. The self-grounding feature ensures safe operation in various settings.

  • Heavy-duty grade construction
  • Self-grounding design
  • Suitable for wallbox flush mounting

Product Highlights

This receptacle is ideal for demanding environments, providing reliable performance for commercial and institutional applications.

Product Information

Standard Information

  • Brand: Leviton
  • MPN: 5662-I
Technical Specifications
Voltage
250 Volts
Amperage Capacity
15 Amps
Certification
CSA, UL
Material
Thermoplastic
Horsepower
1-1/2 hp
NEMA Rating
NEMA 6-15R
Terminal Type
Back/Side Wire
Number of Poles
2
Number of Wires
3
Temperature Rating
-40 to 60 degrees C
Grade
Commercial
Mounting Type
Wallbox, Flush
Wire Size
14-10 AWG
Dielectric Strength
2000 V
Operating Temperature
-40 degrees C
Flammability Class
Rated V-2 Per UL 94
Number of Phases
1 Phase
Termination Type
Back Wire, Side Wire
Standard
NEMA (WD-1, WD-6); ANSI (C-73); NOM Certified (057); CSA C22.2 No. 42 (File 152105); UL Fed Spec WC-596 (File E13399); UL Listed 498 (File E13399)
Connection Type
Back and Side Wire
Body Material
Thermoplastic Nylon
Face Material
Nylon
Grounding
Self-Grounding
