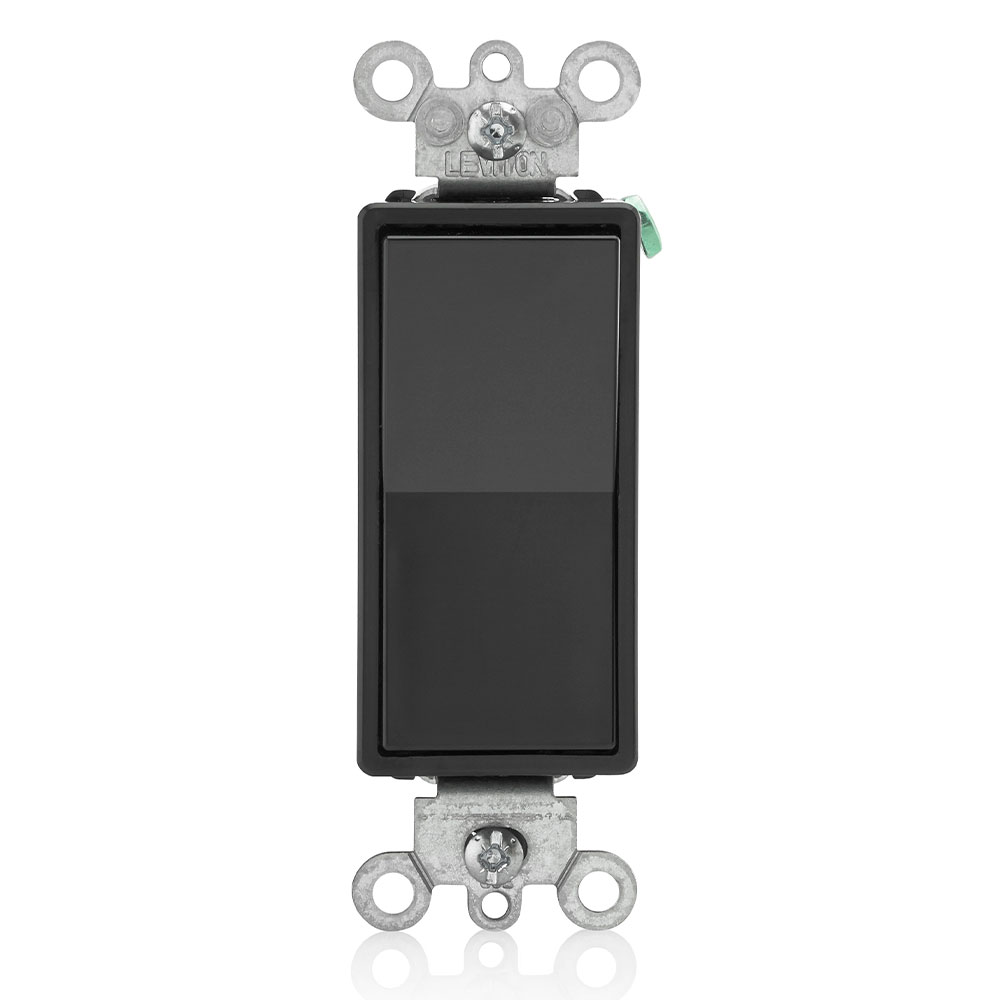

Leviton 5604-2E 15A 4-way Decora Rocker Switch Black

Product Description

The LEVITON 5604-2E is a 15 amp, 120/277 volt, 4-way AC quiet rocker switch in the Decora style. It is designed for residential-grade wiring applications where a light or load must be controlled from three or more locations. The grounding feature provides an added layer of electrical safety in compliance with standard installation requirements. The switch operates quietly, reducing audible click noise during switching. The black finish suits standard Decora-style wallplates. Licensed electricians are the primary installers of this device in branch-circuit wiring.

The 5604-2E is suited for residential lighting circuits where multi-location switching is required, such as stairwells, hallways, and large rooms with multiple entry points. At a 277-volt rating, it is also applicable in light commercial environments where fluorescent or LED lighting is controlled on higher-voltage branch circuits. The Decora rocker form factor integrates with compatible decorator-style wallplates and trim accessories. Installation requires pairing with two 3-way switches at the end locations of the switching leg.

Key Features

• 15 amp rating supports standard residential and light commercial branch-circuit loads
• Dual voltage rating of 120/277 volts broadens application range
• 4-way configuration enables control from three or more switch locations
• AC quiet switching mechanism minimizes audible noise during operation
• Grounding terminal included for code-compliant wiring
• Decora rocker style compatible with standard decorator wallplates

Compatibility

Designed as an OEM-style replacement or new-installation 4-way switch for residential-grade wiring systems using Decora-style devices.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off the branch circuit breaker and verify absence of voltage with a meter before handling any wiring connections. The 5604-2E must be wired as a 4-way device between two 3-way switches in a multi-location switching circuit. Do not use this switch to control motors, ballasts, or other inductive loads not rated for standard AC quiet switch operation.

Technical Specifications

• Amperage: 15 amps
• Voltage: 120/277 volts
• Switch Configuration: 4-Way
• Switch Type: AC Quiet Rocker
• Grade: Residential
• Grounding: Yes
• Color: Black
• Style: Decora
• UPC: 078477882771

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5604-2E
