Product Description

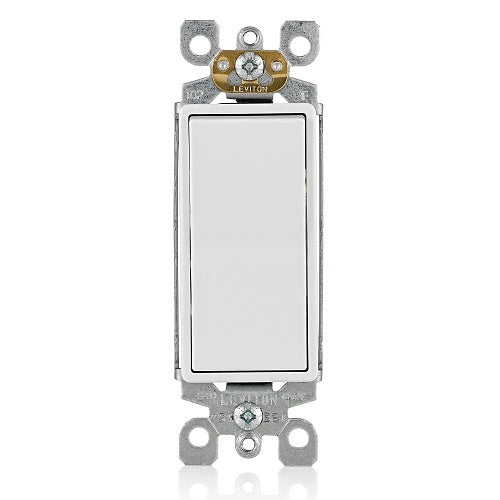

The Leviton 5603-P2W is a 15 amp, 120/277 volt Decora rocker 3-way AC quiet switch. It is designed for reliable use in residential applications. This switch is equipped with self-grounding features when installed in a properly grounded metal box.
- Switch frame protects against dust and aligns with wallplates to prevent binding.
- Accepts up to #12 AWG copper or copper-clad wire.
- Compatible with quickwire push-in terminals for #14 AWG solid copper wire.
Product Highlights
This switch features sturdy construction for long-lasting service and compliance with UL and CSA standards. It is suitable for both fluorescent and tungsten loads.
Product Information
Standard Information
-
Brand: Leviton
-
Manufacturer: Leviton Mfg. Company, Inc
Technical Specifications
-
Catalog Number: 5603-P2W
-
Voltage Rating: 120/277 VAC
-
Amperage Rating: 15 A
-
Actuator Type: Rocker
-
Material: Thermoplastic
-
Dimensions: 4.2 inches H x 1.399 inches W x 1.453 inches D
-
Environmental Conditions: -40 to 120 degrees C operating temperature, UL 94 V-2 rated flammability
-
Warranty: 2 years limited
