Product Description

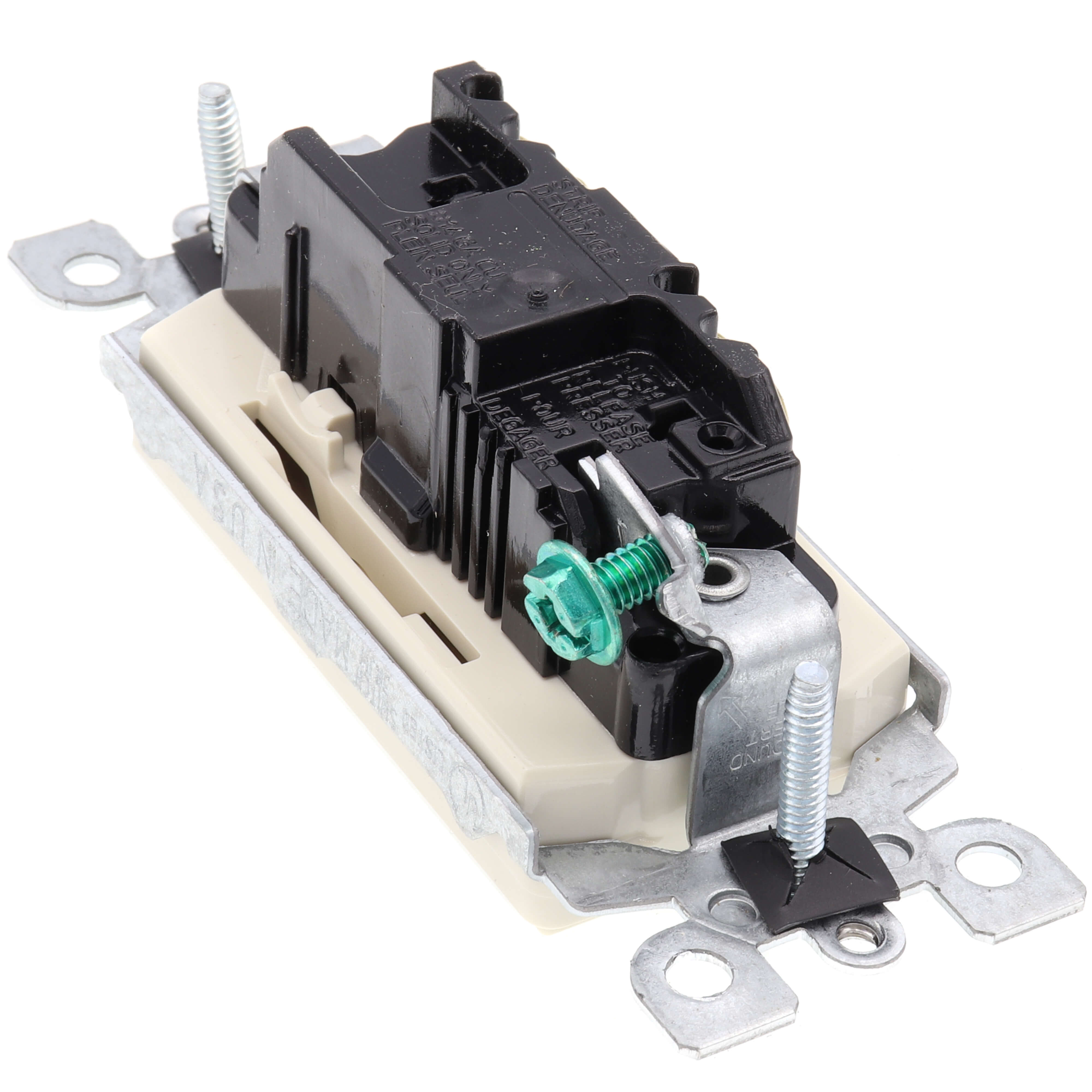

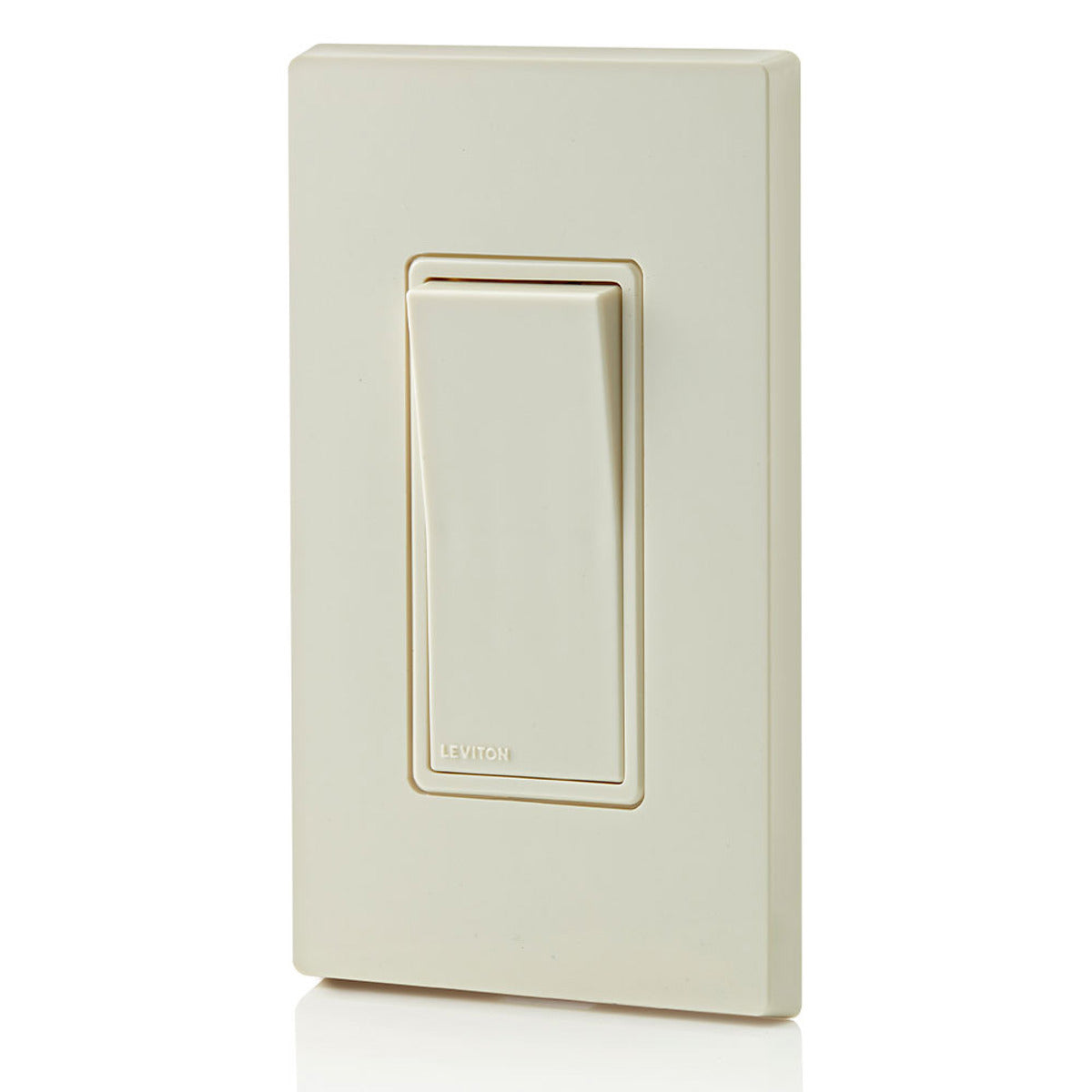

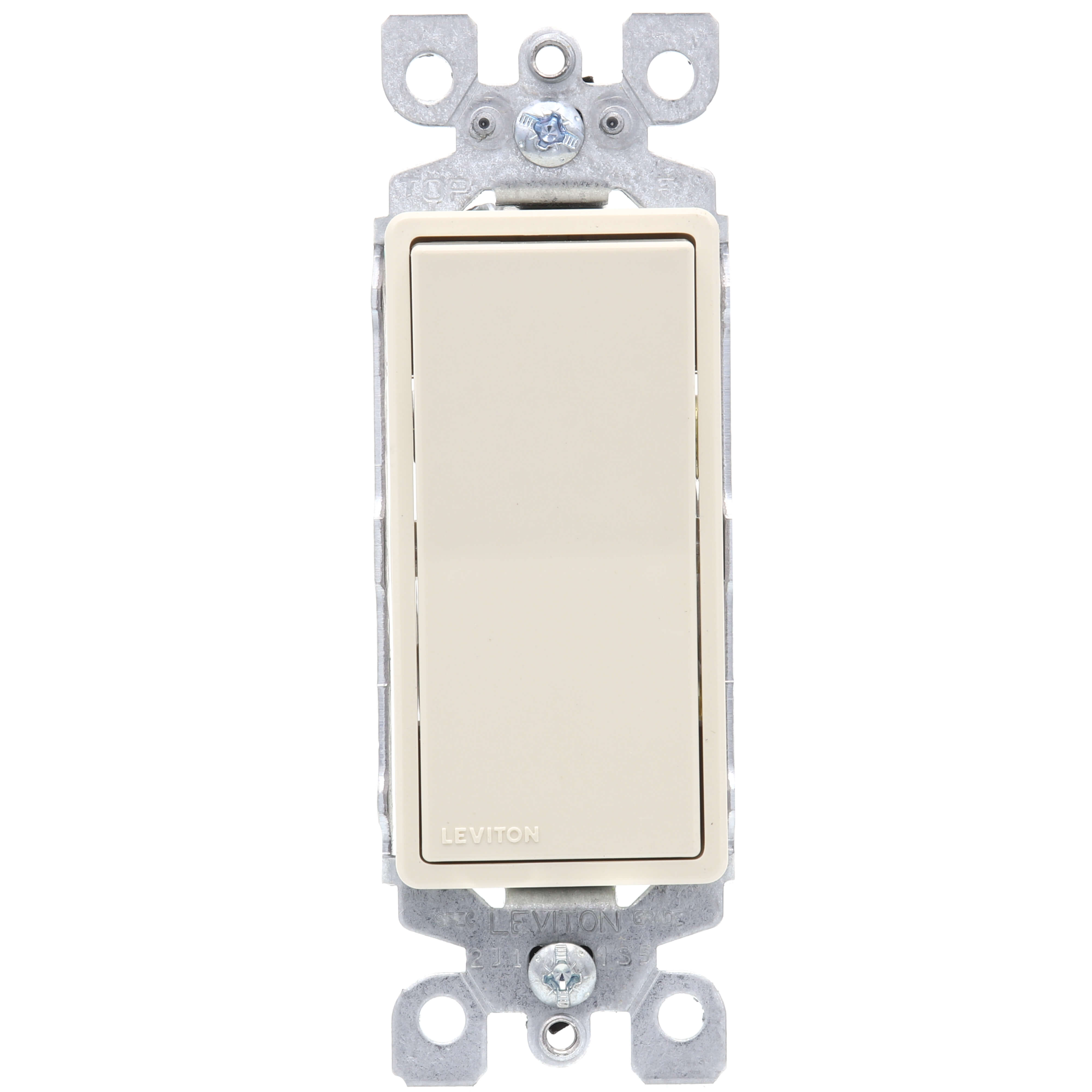

The Leviton 5601-2T is a 15 Amp, 120/277 Volt, Decora Rocker Single-Pole AC Quiet Switch. This residential grade, grounding switch comes in a 10-pack. It features a sleek design and smooth, quiet operation. It is easy to wire and works with tungsten, fluorescent and resistive loads.
- Decora Rocker Single-Pole AC Quiet Switch
- Residential Grade
- Grounding
Product Highlights
The Leviton 5601-2T is ideal for residential applications. It offers sturdy construction and dependable performance.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 5601-2T
-
Country of Origin: United States
Technical Specifications
-
Color: Light Almond
-
Style: Modern
-
Finish: Unfinished
-
Terminal: Screws
-
Unit Count: 10.0 Count
-
Circuit Type: Single Pole
-
Actuator Type: Rocker
-
Mounting Type: Wall Mount
-
Connector Type: Screws
-
Current Rating: 15 Amps
-
Batteries Required?: No
-
Included Components: 10 Devices
-
Voltage Rating: 120/277 VAC
-
Operation Type: 1-Pole
-
Wiring: Side, Push-In
-
Wall Plate Included: No
-
Material: Thermoplastic (Body)
-
Application: Residential
-
Approval: UL, CSA
-
Power Rating: 1/2 HP at 120 V, 2 HP at 240/277 V
-
Grounding Type: Grounding
-
Strap Material: Steel
-
Actuator Material: Thermoplastic
-
Includes: Ground Screw
-
Amperage: 15 Amp
-
Voltage: 120/277 Volt
-
Switch Type: Single-Pole
-
Grade: Residential Grade
-
Brand: Leviton
-
Model / MPN: 5601-2T
-
Number of Items: 10.0
-
Action: On-Off
-
Actuator: Rocker
-
Mounting: Surface
-
Manufacturer: LEVITON
-
Environmental Conditions: -40 to 120 deg C Operating Temperature
-
Number of Poles: 1
-
Contact Rating: 120/277 VAC;15 AMP
-
Operating Temperature: -40 to +120 DEG C
-
Standard: UL Listed (E-7458);CSA Certified (LR-3413);NOM Certified (057)
-
Sub Brand: Decora
-
Connection: Quickwired Push-In;Side Wired
-
Horsepower: 1/2 hp
-
Termination Type: Quickwire Push-In,Slide Wire
-
Country of Origin: USA
-
Pole: 1
-
Standards and Certifications: UL/CSA
-
Type: Rocker Switch
-
Maximum Load Capacity: 1/2 hp at 120 Volt, 2 hp at 240 Volt
-
Item Name: Rocker AC Quiet Switch
-
Self-Grounding: Self-Grounding
-
Temperature Rating: -40 to 120 deg C
-
Standards: UL E7458 Listed, CSA LR3413 Certified, NOM 057
-
Catalog Number: 5601-2T
-
Made in USA: Yes
-
Manufacturer Item Status: Active
-
Manufacturer Name: Leviton
-
Alternative Part Number: 9251036
-
Amperage Rating UOM: A
-
Country: USA|Canada
-
IDEA Index ID: 9251036
-
Voltage Rating UOM: VAC
-
Vendor: 78477
-
Family group: WIRING DEVICES
-
WES Product code: 2734301580
-
PDW ID: ECL692025
-
Terminal Accom.: Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
-
Brand Part Number: 5601-2T
